54LS240/BSAJC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54LS240/BSAJC

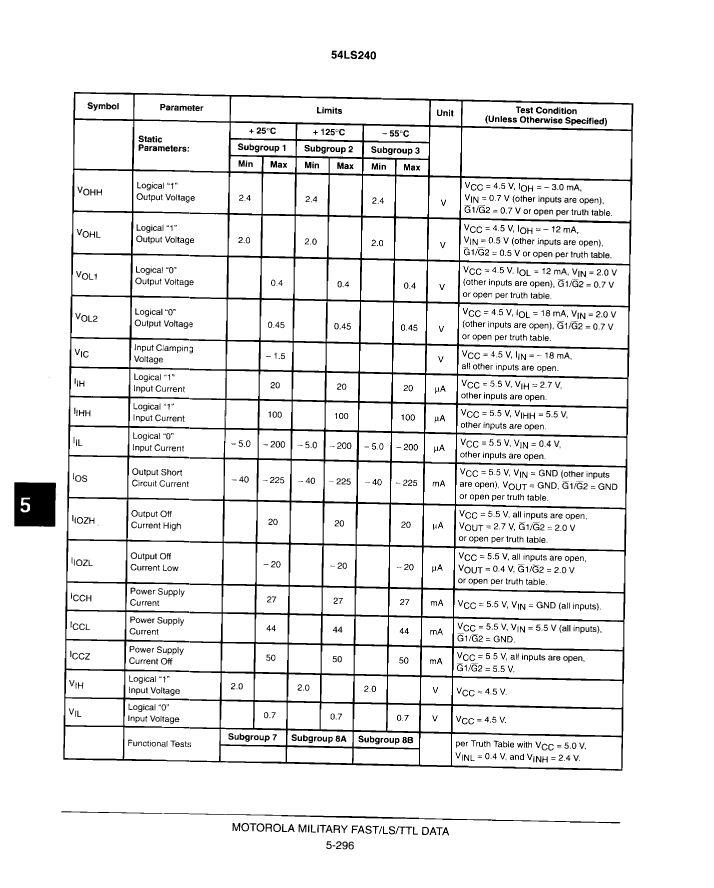

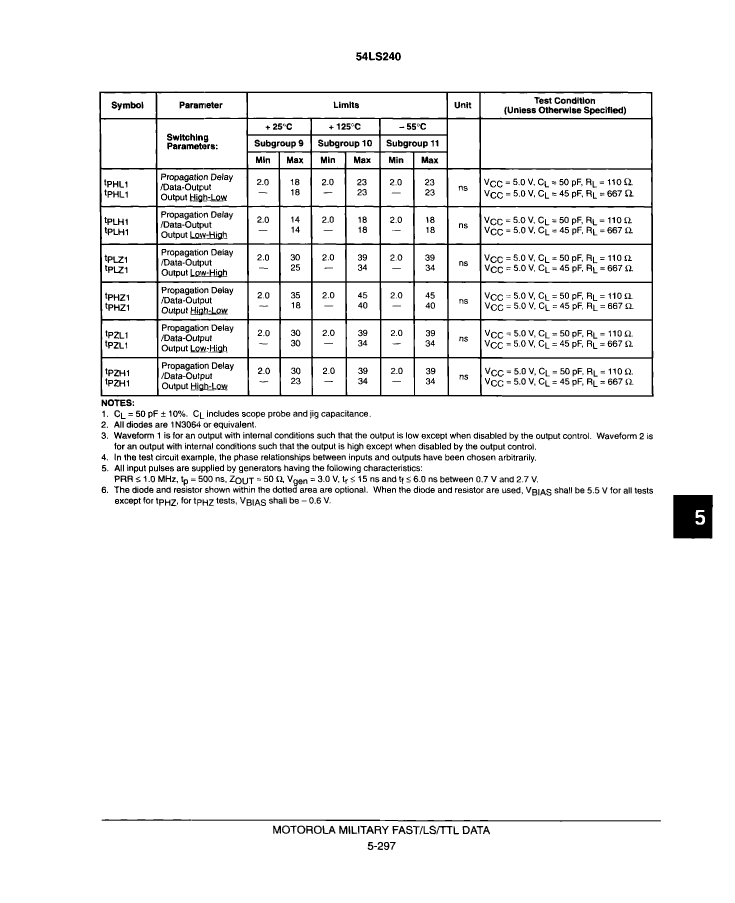

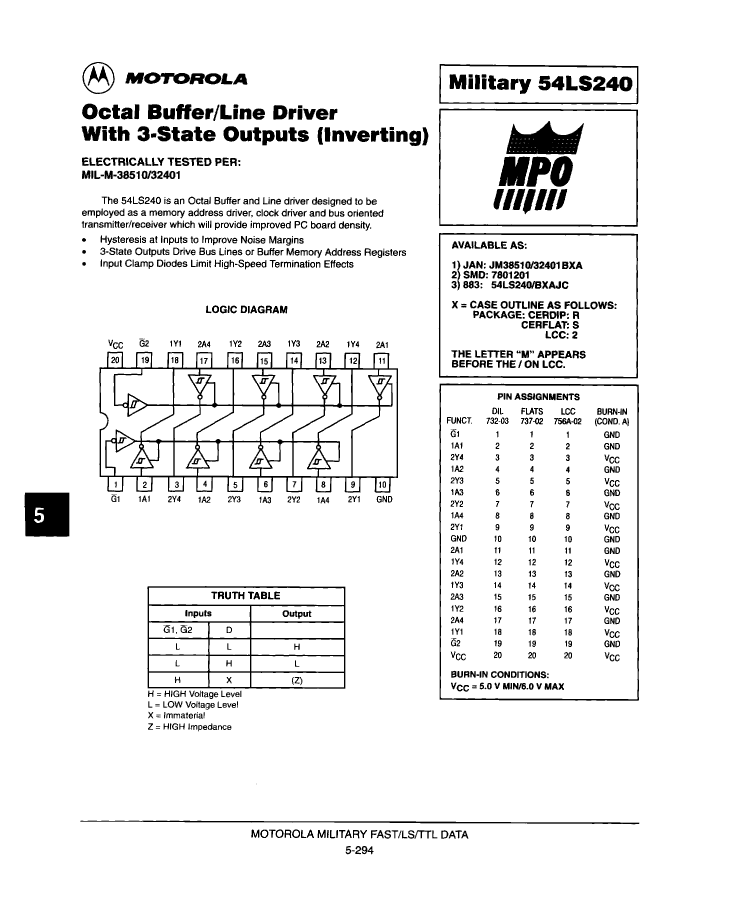

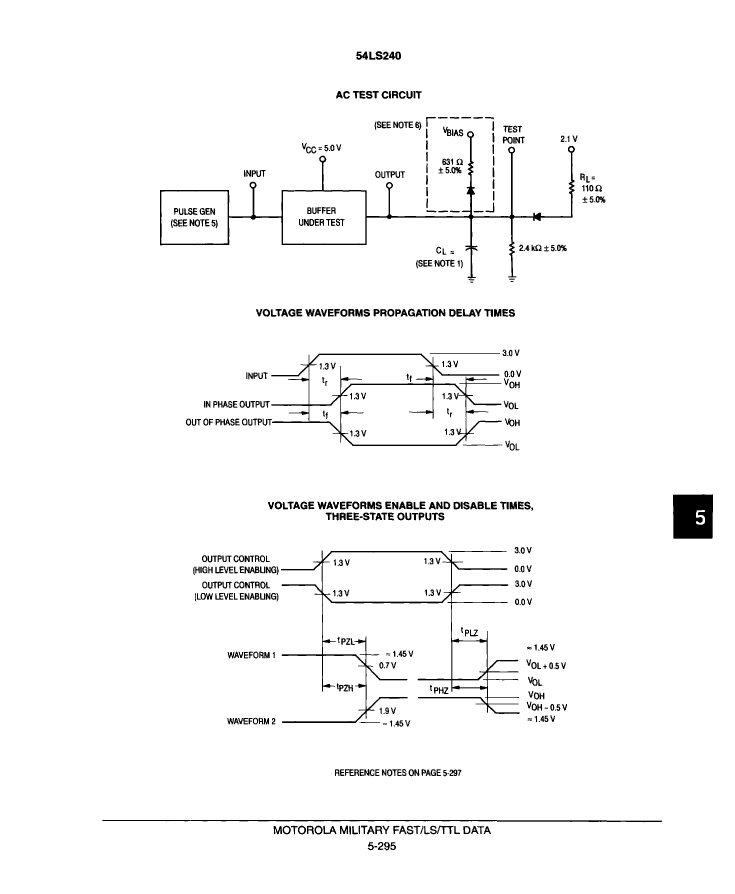

54LS240/BSAJC: DescriptionLS SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, CDFP20, CERAMIC, FP-20; Categorylogic logic; File Size104KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54LS240/BSAJC Overview

LS SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, CDFP20, CERAMIC, FP-20

54LS240/BSAJC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DFP
package instruction	DFP, FL20,.3
Contacts	20
Reach Compliance Code	unknown
Control type	ENABLE LOW
series	LS
JESD-30 code	R-GDFP-F20
JESD-609 code	e0
length	12.7 mm
Load capacitance (CL)	45 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.012 A
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Encapsulate equivalent code	FL20,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	44 mA
Prop。Delay @ Nom-Sup	23 ns
propagation delay (tpd)	23 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	2.16 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	6.475 mm
Base Number Matches	1

Preview

Download Datasheet

View All

54LS240/BSAJC Related Products

	54LS240/BSAJC	54LS240/BRAJC	54LS240M/B2AJC	7801201RA	7801201SA	78012012A	78012012X	7801201RX	7801201SX
Description	LS SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, CDFP20, CERAMIC, FP-20	Bus Driver, LS Series, 2-Func, 4-Bit, Inverted Output, TTL, CDIP20, CERDIP-20	LS SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, CQCC20, CERAMIC, LCC-20	Bus Driver, LS Series, 2-Func, 4-Bit, Inverted Output, TTL, CDIP20, CERDIP-20	Bus Driver, LS Series, 2-Func, 4-Bit, Inverted Output, TTL, CDFP20, CERAMIC, FP-20	Bus Driver, LS Series, 2-Func, 4-Bit, Inverted Output, TTL, CQCC20, CERAMIC, LCC-20	Bus Driver, LS Series, 2-Func, 4-Bit, Inverted Output, TTL, CQCC20, CERAMIC, LCC-20	Bus Driver, LS Series, 2-Func, 4-Bit, Inverted Output, TTL, CDIP20, CERAMIC, DIP-20	Bus Driver, LS Series, 2-Func, 4-Bit, Inverted Output, TTL, CDFP20, CERAMIC, FP-20
package instruction	DFP, FL20,.3	DIP,	QCCN, LCC20,.35SQ	DIP,	DFP,	QCCN,	QCCN,	DIP,	DFP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
series	LS	LS	LS	LS	LS	LS	LS	LS	LS
JESD-30 code	R-GDFP-F20	R-CDIP-T20	S-CQCC-N20	R-CDIP-T20	R-GDFP-F20	S-CQCC-N20	S-CQCC-N20	R-GDIP-T20	R-GDFP-F20
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	4	4	4	4	4	4	4	4	4
Number of functions	2	2	2	2	2	2	2	2	2
Number of ports	2	2	2	2	2	2	2	2	2
Number of terminals	20	20	20	20	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DFP	DIP	QCCN	DIP	DFP	QCCN	QCCN	DIP	DFP
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	CHIP CARRIER	IN-LINE	FLATPACK	CHIP CARRIER	CHIP CARRIER	IN-LINE	FLATPACK
propagation delay (tpd)	23 ns	23 ns	23 ns	23 ns	23 ns	23 ns	23 ns	35 ns	35 ns
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO	YES	YES	YES	NO	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	FLAT	NO LEAD	NO LEAD	THROUGH-HOLE	FLAT
Terminal location	DUAL	DUAL	QUAD	DUAL	DUAL	QUAD	QUAD	DUAL	DUAL
length	12.7 mm	24.515 mm	8.89 mm	24.515 mm	12.7 mm	8.885 mm	8.885 mm	-	-
Load capacitance (CL)	45 pF	45 pF	45 pF	45 pF	45 pF	45 pF	-	-	-
Maximum supply current (ICC)	44 mA	44 mA	44 mA	44 mA	44 mA	44 mA	-	-	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Maximum seat height	2.16 mm	5.08 mm	1.9 mm	5.08 mm	2.16 mm	1.9 mm	1.9 mm	-	-
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	-	-
width	6.475 mm	7.62 mm	8.89 mm	7.62 mm	6.475 mm	8.885 mm	8.885 mm	-	-
Base Number Matches	1	1	1	1	1	1	1	1	-
Maker	-	-	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
