54S244/BRA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54S244/BRA

54S244/BRA: DescriptionBus Driver, 2-Func, 4-Bit, True Output, TTL, CDIP20; Categorylogic logic; File Size223KB，5 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

54S244/BRA Overview

Bus Driver, 2-Func, 4-Bit, True Output, TTL, CDIP20

54S244/BRA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP20,.3
Reach Compliance Code	unknown
Control type	ENABLE LOW
JESD-30 code	R-XDIP-T20
JESD-609 code	e0
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.048 A
Number of digits	4
Number of functions	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	170 mA
Prop。Delay @ Nom-Sup	16 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

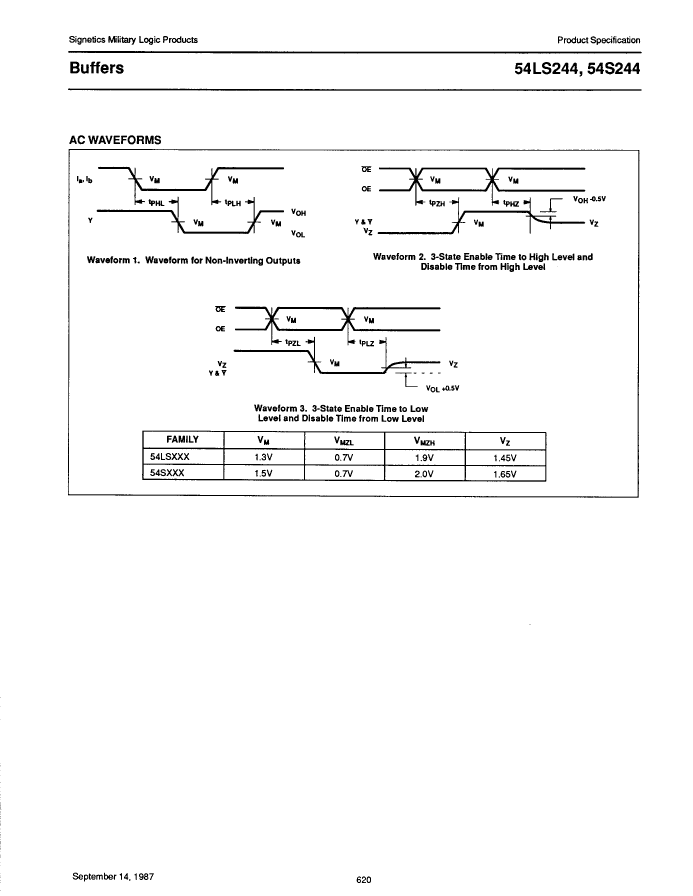

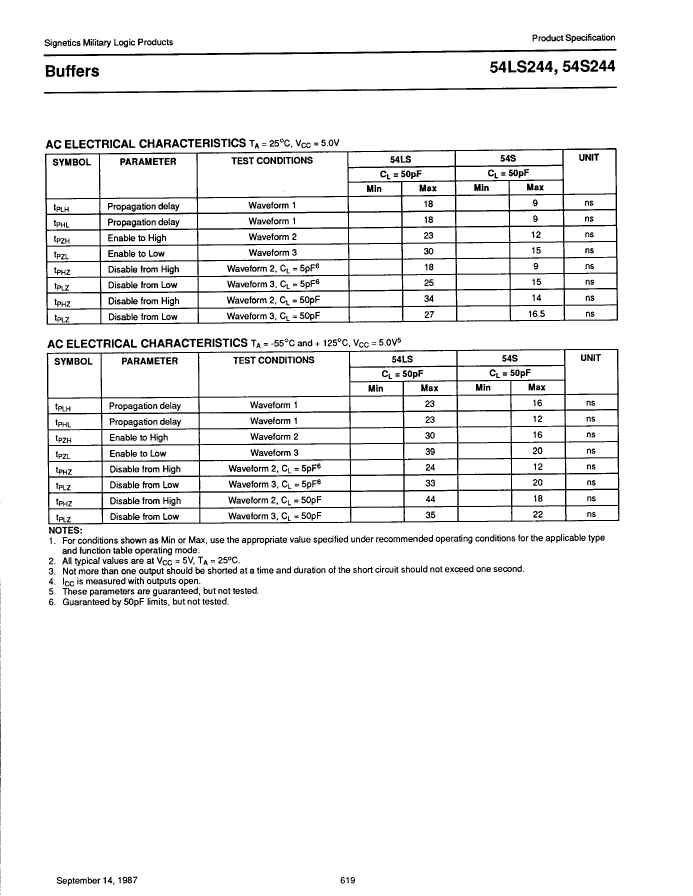

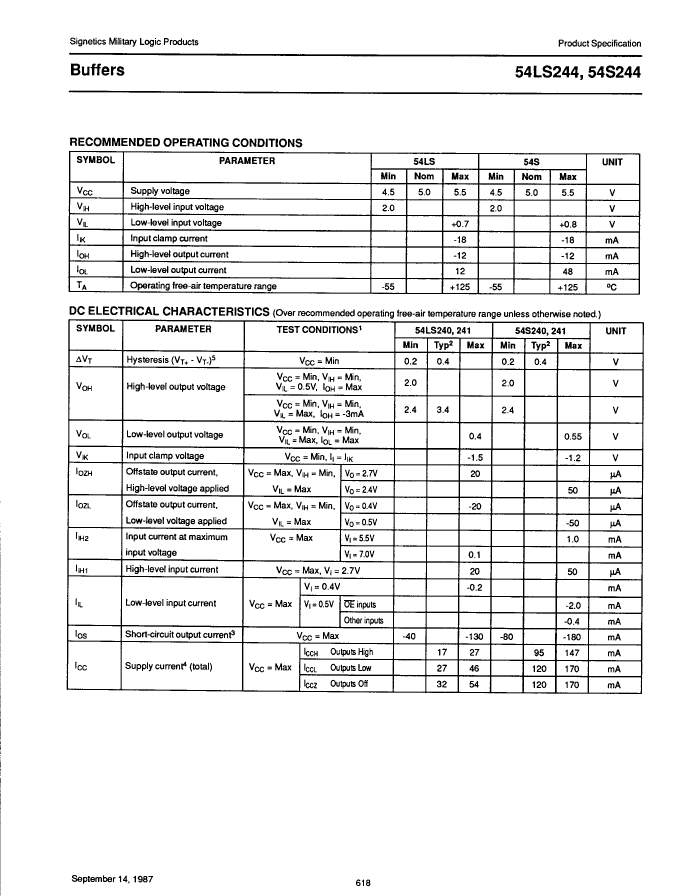

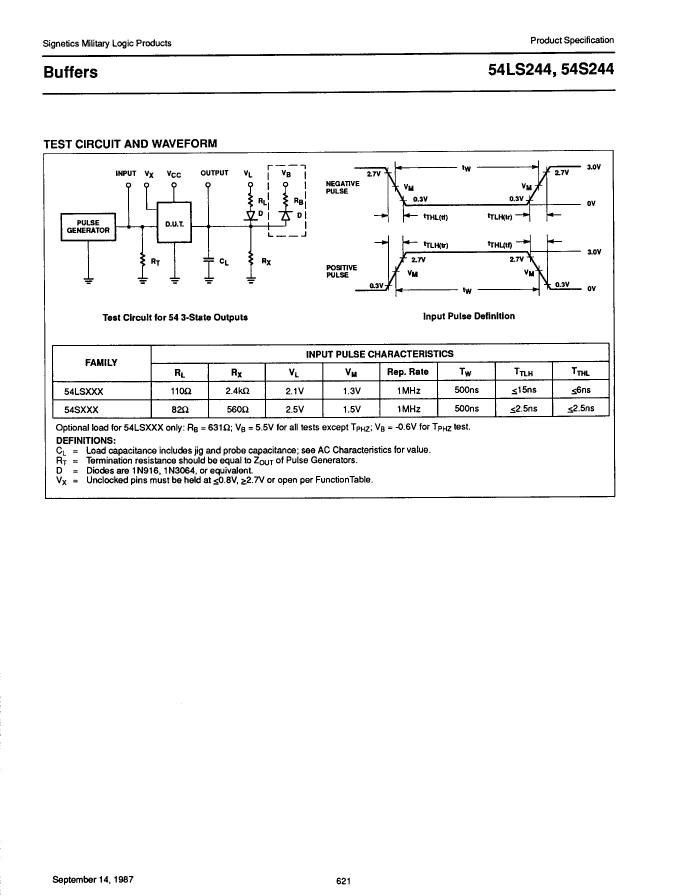

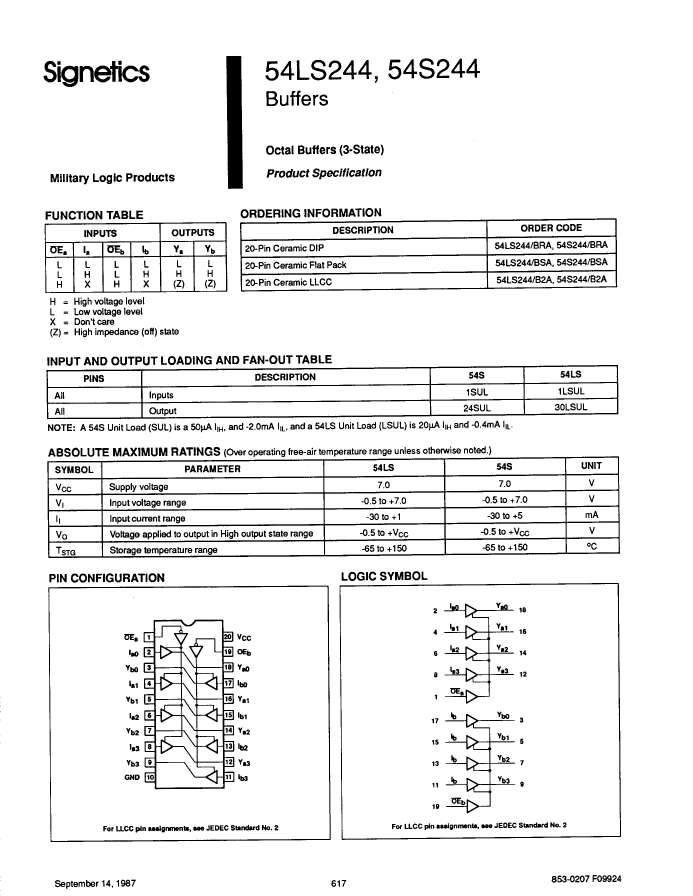

Preview

Download Datasheet

View All

54S244/BRA Related Products

	54S244/BRA	54S244/BSA	N74LS244N	N74LS244D	54LS244/B2A	54LS244/BSA	54LS244/B2C	N74S244N-B
Description	Bus Driver, 2-Func, 4-Bit, True Output, TTL, CDIP20	Bus Driver, 2-Func, 4-Bit, True Output, TTL, CDFP20	Bus Driver, 2-Func, 4-Bit, True Output, TTL, PDIP20	Bus Driver, 2-Func, 4-Bit, True Output, TTL, PDSO20	Bus Driver, 2-Func, 4-Bit, True Output, TTL, CQCC20	Bus Driver, 2-Func, 4-Bit, True Output, TTL, CDFP20	Bus Driver, 2-Func, 4-Bit, True Output, TTL, CQCC20	Bus Driver, 2-Func, 4-Bit, True Output, TTL, PDIP20
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP20,.3	DFP, FL20,.3	DIP, DIP20,.3	SOP, SOP20,.4	QCCN, LCC20,.35SQ	DFP, FL20,.3	QCCN, LCC20,.35SQ	DIP, DIP20,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Control type	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW
JESD-30 code	R-XDIP-T20	R-XDFP-F20	R-PDIP-T20	R-PDSO-G20	S-XQCC-N20	R-XDFP-F20	S-XQCC-N20	R-PDIP-T20
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	4	4	4	4	4	4	4	4
Number of functions	2	2	2	2	2	2	2	2
Number of terminals	20	20	20	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	70 °C	70 °C	125 °C	125 °C	125 °C	70 °C
Minimum operating temperature	-55 °C	-55 °C	-	-	-55 °C	-55 °C	-55 °C	-
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY
encapsulated code	DIP	DFP	DIP	SOP	QCCN	DFP	QCCN	DIP
Encapsulate equivalent code	DIP20,.3	FL20,.3	DIP20,.3	SOP20,.4	LCC20,.35SQ	FL20,.3	LCC20,.35SQ	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	FLATPACK	IN-LINE	SMALL OUTLINE	CHIP CARRIER	FLATPACK	CHIP CARRIER	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES	YES	YES	YES	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT	THROUGH-HOLE	GULL WING	NO LEAD	FLAT	NO LEAD	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	QUAD	DUAL	QUAD	DUAL
MaximumI(ol)	0.048 A	0.048 A	0.024 A	0.024 A	0.012 A	0.012 A	-	0.064 A
Maximum supply current (ICC)	170 mA	170 mA	54 mA	54 mA	54 mA	54 mA	-	180 mA
Prop。Delay @ Nom-Sup	16 ns	16 ns	18 ns	18 ns	23 ns	23 ns	-	9 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-	-	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-
Base Number Matches	1	1	1	1	1	1	1	-
Maker	-	-	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
