B43511A5108M000 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> B43511A5108M000

B43511A5108M000: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 1000uF, THROUGH HOLE MOUNT, ROHS AND REACH COMPLIANT; CategoryPassive components capacitor; File Size251KB，10 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric Compare View All

B43511A5108M000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B43511A5108M000	-	-	View	Buy Now

B43511A5108M000 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 1000uF, THROUGH HOLE MOUNT, ROHS AND REACH COMPLIANT

B43511A5108M000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	REFERENCE STANDARD: IEC60384-4
capacitance	1000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	40 mm
dielectric materials	ALUMINUM (WET)
ESR	200 mΩ
JESD-609 code	e3
leakage current	2.72275 mA
length	100 mm
Manufacturer's serial number	B43511
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Snap-in
method of packing	CARDBOARD
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	450 V
ripple current	5800 mA
series	B43511
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal shape	SNAP-IN
Base Number Matches	1

Preview

Download Datasheet

View All

Capacitors with 4 Snap-In Terminals and Solder Pins

Max. Ripple Current

–

85 °C

B43511, B43521

Long-life grade capacitors

Applications

Frequency converters

Switch-mode power supplies in industrial

B43511

B43521

and consumer electronics

Uninterruptible power supplies

Features

KAL0409-D

Long useful life

Outstanding ripple current capability

High volumetric efficiency

Many different case sizes

Pinning ensures correct insertion

B43511

B43521

Construction

Charge-discharge proof, polar

Aluminum case, fully insulated

Overload protection by preset break point in case

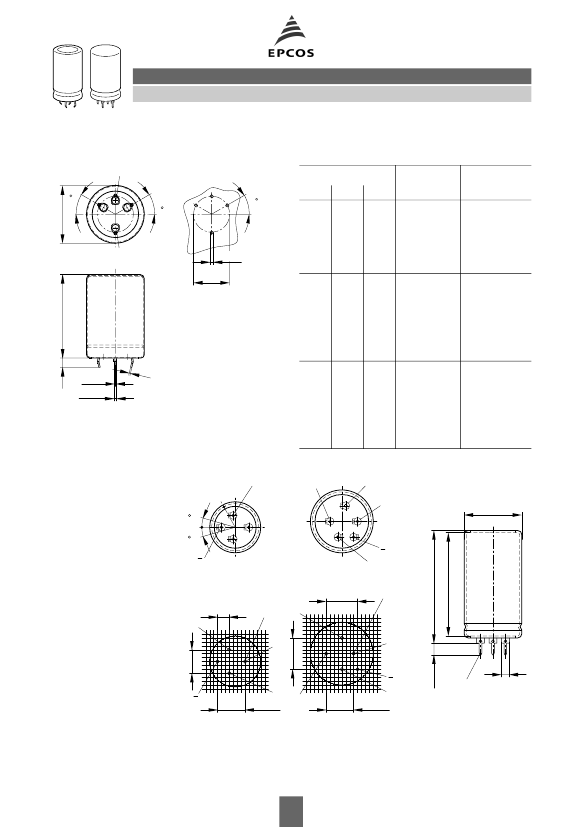

Terminals

4 snap-in terminals (6,3 mm and 4,5 mm length)

Solder pin mounting on printed circuit boards,

pins fit standardized spacings on PCB

188

10/02

B43511A5108M000 Related Products

	B43511A5108M000	B43511C9108M007	B43511C9108M000	B43511A9827M000	B43511A9687M000	B43511A5827M000	B43521C9687M000	B43521C9477M000	B43521A5108M000
Description	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 1000uF, THROUGH HOLE MOUNT, ROHS AND REACH COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 400V, 1000uF, THROUGH HOLE MOUNT, ROHS AND REACH COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 400V, 1000uF, THROUGH HOLE MOUNT, ROHS AND REACH COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 400V, 820uF, THROUGH HOLE MOUNT, ROHS AND REACH COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 400V, 680uF, THROUGH HOLE MOUNT, ROHS AND REACH COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 820uF, THROUGH HOLE MOUNT, ROHS AND REACH COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 400V, 680uF, THROUGH HOLE MOUNT, ROHS AND REACH COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 400V, 470uF, THROUGH HOLE MOUNT, ROHS AND REACH COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 1000uF, THROUGH HOLE MOUNT, ROHS AND REACH COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	REFERENCE STANDARD: IEC60384-4	REFERENCE STANDARD: IEC60384-4	REFERENCE STANDARD: IEC60384-4	REFERENCE STANDARD: IEC60384-4	REFERENCE STANDARD: IEC60384-4	REFERENCE STANDARD: IEC60384-4	REFERENCE STANDARD: IEC60384-4	REFERENCE STANDARD: IEC60384-4	REFERENCE STANDARD: IEC60384-4
capacitance	1000 µF	1000 µF	1000 µF	820 µF	680 µF	820 µF	680 µF	470 µF	1000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	40 mm	35 mm	35 mm	35 mm	35 mm	40 mm	40 mm	40 mm	40 mm
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
ESR	200 mΩ	130 mΩ	130 mΩ	160 mΩ	190 mΩ	250 mΩ	190 mΩ	280 mΩ	200 mΩ
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
leakage current	2.72275 mA	2.50759 mA	2.50759 mA	2.18288 mA	1.91526 mA	2.37014 mA	1.91526 mA	1.47981 mA	2.72275 mA
length	100 mm	100 mm	100 mm	80 mm	70 mm	70 mm	60 mm	40 mm	100 mm
Manufacturer's serial number	B43511	B43511	B43511	B43511	B43511	B43511	B43521	B43521	B43521
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-40 °C	-40 °C	-40 °C	-40 °C	-25 °C	-40 °C	-40 °C	-25 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
Package form	Snap-in	Snap-in	Snap-in	Snap-in	Snap-in	Snap-in	PCB Mount	PCB Mount	PCB Mount
method of packing	CARDBOARD	CARDBOARD	CARDBOARD	CARDBOARD	CARDBOARD	CARDBOARD	CARDBOARD	CARDBOARD	CARDBOARD
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	450 V	400 V	400 V	400 V	400 V	450 V	400 V	400 V	450 V
ripple current	5800 mA	5600 mA	5600 mA	4600 mA	4000 mA	4600 mA	3900 mA	2800 mA	5800 mA
series	B43511	B43511	B43511	B43511	B43511	B43511	B43521	B43521	B43521
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal shape	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	FLAT	FLAT	FLAT
Base Number Matches	1	1	1	1	1	1	1	1	1
