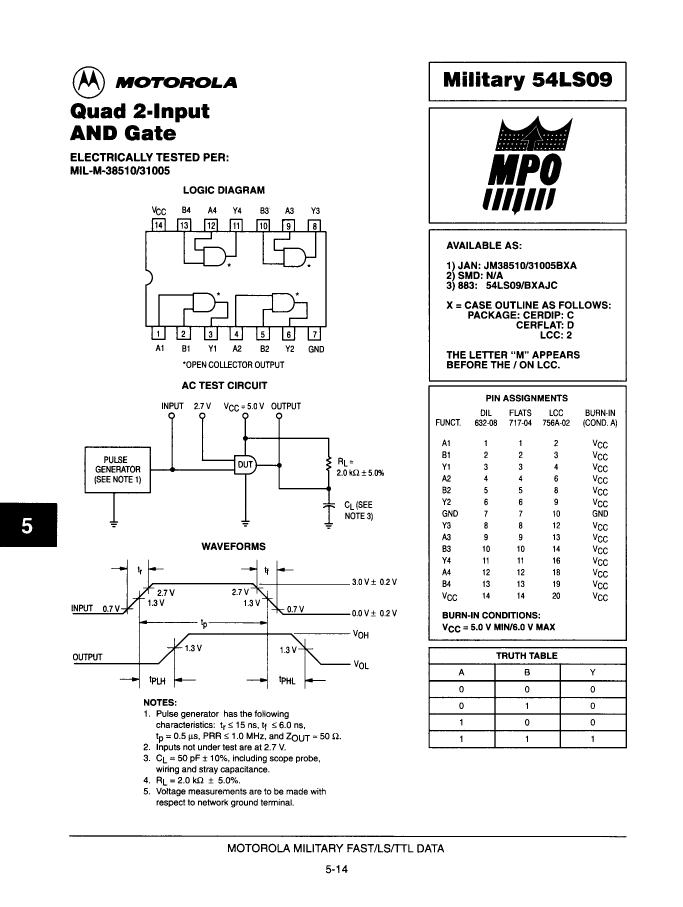

AND Gate, LS Series, 4-Func, 2-Input, TTL, CQCC20, CERAMIC, LCC-20

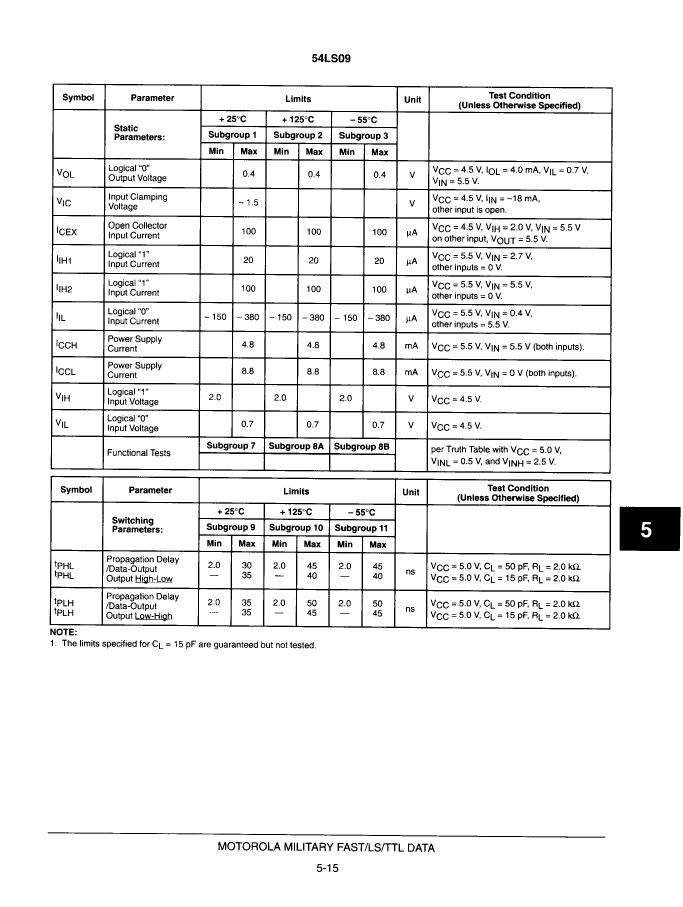

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| package instruction | QCCN, LCC20,.35SQ |
| Reach Compliance Code | unknown |
| series | LS |
| JESD-30 code | S-CQCC-N20 |
| JESD-609 code | e0 |
| length | 8.885 mm |
| Logic integrated circuit type | AND GATE |
| MaximumI(ol) | 0.004 A |
| Number of functions | 4 |
| Number of entries | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | OPEN-COLLECTOR |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN |
| Encapsulate equivalent code | LCC20,.35SQ |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Maximum supply current (ICC) | 8.8 mA |
| Prop。Delay @ Nom-Sup | 35 ns |
| propagation delay (tpd) | 45 ns |
| Certification status | Not Qualified |
| Schmitt trigger | NO |
| Filter level | 38535Q/M;38534H;883B |
| Maximum seat height | 1.9 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | NO LEAD |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 8.885 mm |
| Base Number Matches | 1 |
