Data and signal line chokes
Common-mode chokes, ring core
Rated voltage 42 V AC/80 V DC
Rated inductance 0.005 mH to 4.7 mH
Rated current 200 mA to 1000 mA
Construction
■
■
■
■
■
B82790C0/S0
Current-compensated ring core double choke
Ferrite core
PPS case (UL 94 V-0)
Bifilar winding (B82790C0)
Sector winding (B82790S0)
Features
■
Suitable for reflow soldering
■
Qualified to AEC-Q200
■
RoHS-compatible
Function
■
B82790C0:
Suppression of asymmetrical interference coupled in on lines,
whereas data signals up to some MHz can pass unaffectedly.
■
B82790S0:
Suppression of asymmetrical and symmetrical interference (by L
stray
)
coupled in on lines. The high-frequency portions of the symmetrical
data signal are decreased so far that EMC problems can be significantly reduced.
Applications
■
Automotive applications, e.g. CAN bus
■
Industrial applications
Terminals
■
Base material CuSn6
■
Layer composition Ni, Sn
■
Electro-plated
Marking
■
Marking on component: Manufacturer, process location (coded),
winding method (coded), ordering code (short form),
date of manufacture (YWWD)
■
Minimum data on reel: Manufacturer, ordering code,
L value and tolerance, quantity, date of packing
Delivery mode and packing unit
■
16-mm blister tape, wound on 330-mm
∅
reel
■
Packing unit: 1500 pcs./reel
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
04/08
Data and signal line chokes
Common-mode chokes, ring core

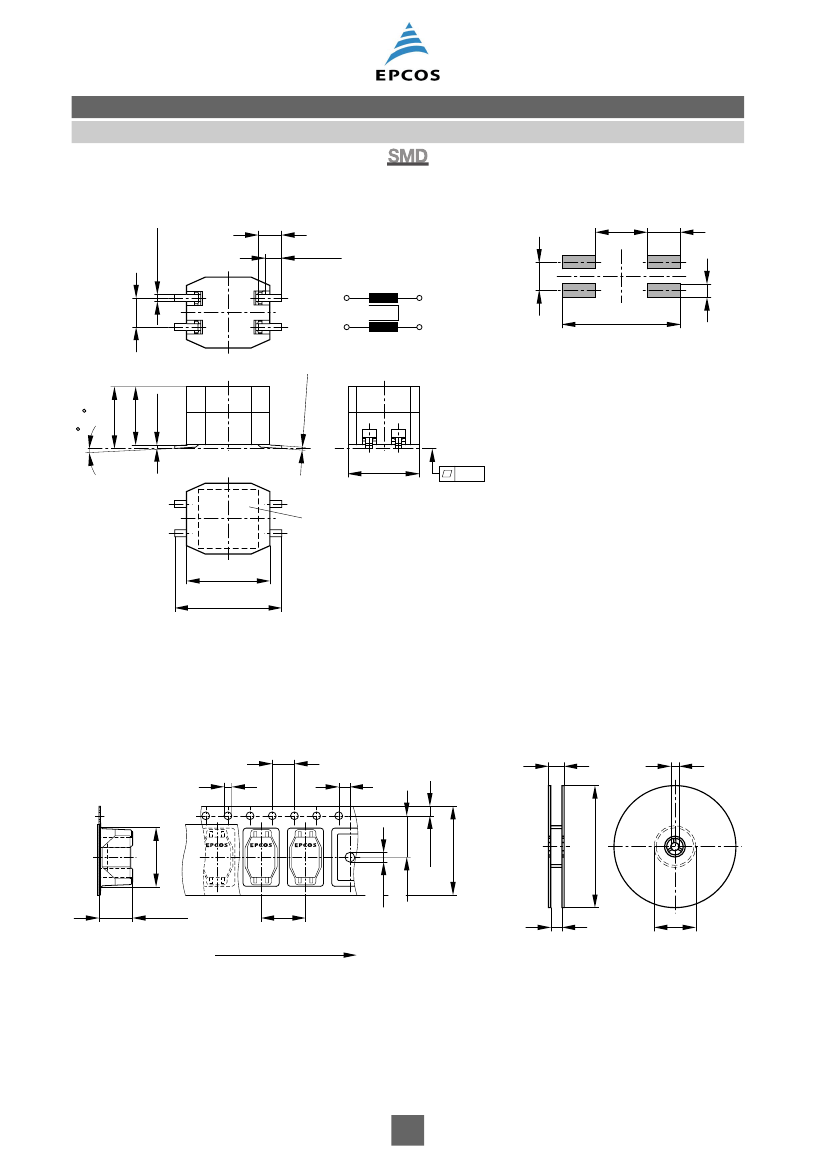

Dimensional drawing and pin configuration
0.6±0.05
1)
1.9±0.2
1.5 min.
1)
1
2
1
4
3
4
2
3
2.5
B82790C0/S0
Layout recommendation
(4.5)
2.85
2.5±0.1
10.2
IND0163-B
0 ...6
5.2 max.
4.9 max.
0.2+0.2
0.25±0.05
1)
6.0 max.
0.08
Marking
7.1 max.
_
0.2
9
+0.4
1) Soldering area
IND0009-B-E
Dimensions in mm
Taping and packing
Blister tape
4±0.1
1.5±0.1
2±0.05
1.75±0.1
Reel
22.4 max.
13±0.25
10.5 max.
6.0 max.
8±0.1
Direction of unreeling
1.6±0.1
7.5±0.1
16±0.3
IND0417-H-E
_
0
16.4
+2
_
2
330
+0
_
0
60
+2
IND0422-K
Dimensions in mm
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
04/08
1.2
Data and signal line chokes
Common-mode chokes, ring core
Technical data and measuring conditions
Rated voltage V
R
Rated temperature T
R
Rated current I
R
Rated inductance L
R
42 V AC (50/60 Hz) / 80 V DC
60 °C
B82790C0/S0
Referred to 50 Hz and rated temperature
Measured with Agilent 4284A at 0.1 mA, 20 °C
Measuring frequency: L
R
≤
1 mH = 100 kHz
L
R
>
1 mH = 10 kHz
Inductance is specified per winding.
±30%
(L
R
≤
0.47 mH), –30/+50% (L
R
≥
1 mH) at 20 °C
< 10% at DC magnetic bias with I
R
, 20
°C
Measured with Agilent 4284A at 5 mA, 20 °C, typ. values
Measuring frequency: L
R
≤
11
μH
= 1 MHz
L
R
> 11
μH
= 100 kHz
Measured at 20
°C,
typical values, specified per winding
SnPb:
(215
±3)
°C, (3
±0.3)
s
Sn96.5Ag3.0Cu0.5: (245
±5)
°C, (3
±0.3)
s
Wetting of soldering area
≥
95%
(to IEC 60068-2-58)
(260
±5)
°C, (10
±1)
s (to IEC 60068-2-58)
40/125/56 (to IEC 60068-1)
–25 °C … +40 °C,
≤
75% RH
Approx. 0.3 g
Inductance tolerance
Inductance decrease
ΔL/L
0
Stray inductance L
stray,typ
DC resistance R
typ
Solderability
Resistance to soldering heat
Climatic category
Storage conditions (packaged)
Weight
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
04/08
Data and signal line chokes
Common-mode chokes, ring core
Characteristics and ordering codes
L
R
mH
0.005
0.011
0.025
0.025
0.051
0.051
0.470
1.0
2.2
4.7
L
stray,typ
nH
40
50
60
1400
70
2100
100
100
200
300
I
R
mA
1000
500
500
500
500
500
500
500
400
200
R
typ
mΩ
60
80
110
110
140
140
170
170
400
510
V
test
V DC, 2 s
250
250
250
250
250
250
250
250
250
250
B82790C0/S0
Ordering code
B82790C0502N201
B82790C0113N201
B82790C0253N201
B82790S0253N201
B82790C0513N201
B82790S0513N201
B82790C0474N215
B82790C0105N240
B82790C0225N265
B82790C0475N265
Types with L
R
≥
0.47 mH:
750 V DC possible for soldering process with Pb containing solder material.
For lead-free soldering please use series B82793.
Sample kit available. Ordering code: B82790X001
For more information refer to chapter “Sample kits”.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
5
