30200911 Overview

Combination Line Connector, 8 Contact(s), Female

30200911 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	POLARIZED
Connector type	COMBINATION LINE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	DCS-1
Mixed contacts	NO
Installation type	CABLE
Shell material	POLYBUTYLENE TEREPHTHALATE
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

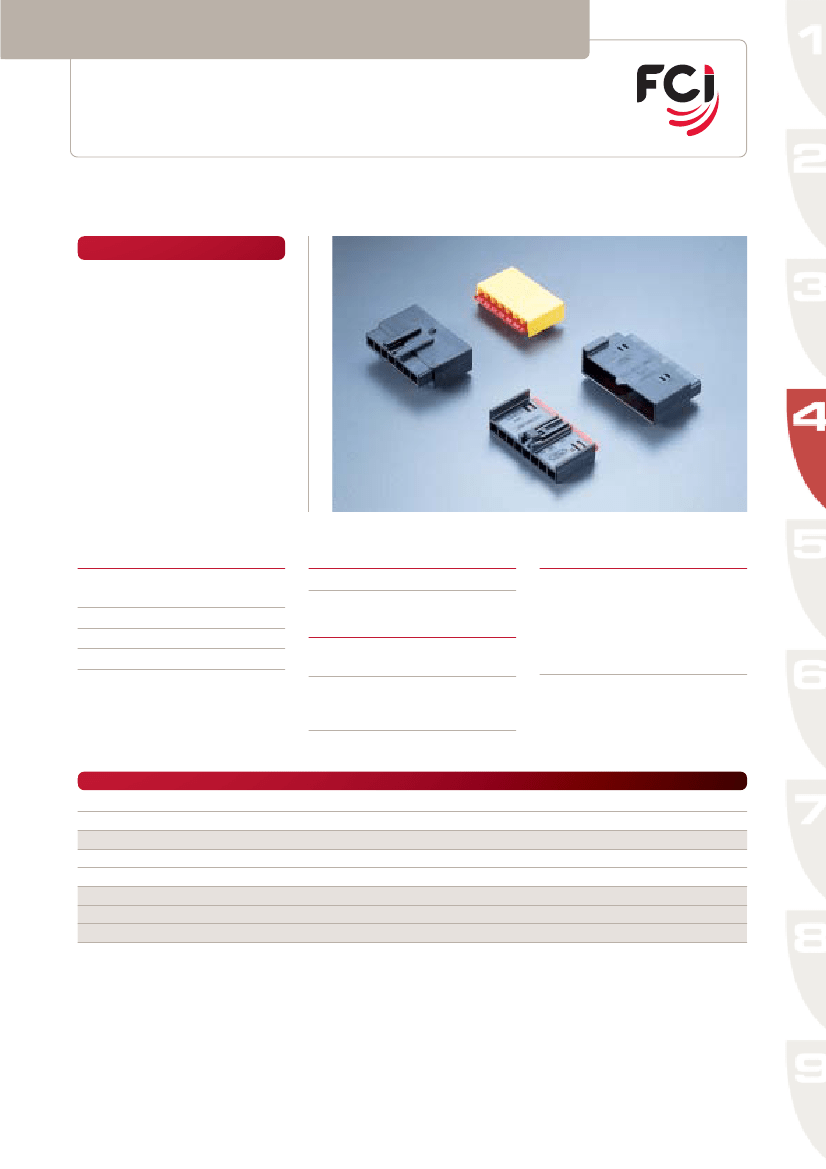

Instrument panel and cockpit connectors

Coupling connectors

DCS-1

2/7/8 way coupling housings for 2.8 mm terminals

Features

•

2-7-8 position housings available

•

Single row 5.3 mm pitch

•

Additional terminal locking device

pre-assembled on front part of the

housing

•

Plastic locking feature

•

Mechanical polarization

•

Several colours available

Performance characteristics

•

Temperature range:

from -40°C to +120°C

Construction

•

Housing material:

PBT

Connector compatibility

•

Usable terminals:

- DCS-1 2.8 mm female terminals

(standard version)

- DCS-1 2.8 mm female terminals

(power version)

- DCS-1 2.8 mm male terminals

•

Contact retention force:

•

Contact insertion force:

•

Connector mating force:

> 80 N

< 15 N

< 90 N

Tooling

•

Front device removal tool:

Consult us

•

Terminal removal tool

- Female terminal:

- Male terminal:

Consult us

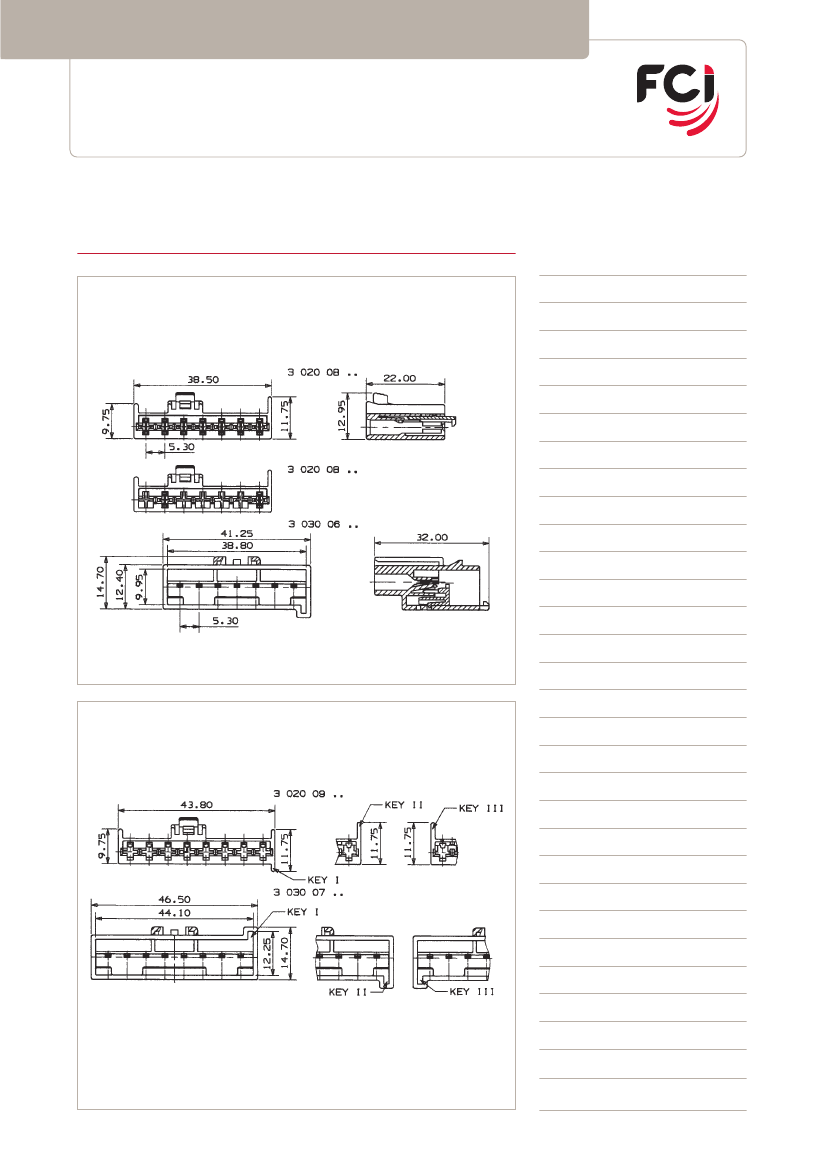

Part Numbers

3 020 08 01

3 020 08 11

3 030 06 01

3 020 09 01

3 020 09 11

3 030 07 01

3 030 07 11

3 030 07 21

No. of position

Terminal size

2.8 mm

2.8 x 0.8 mm

2.8 mm

2.8 x 0.8 mm

Type

Female housing

Male housing

Female housing

Male housing

Code

None

Colour

Black

4.69

30200911 Related Products

	30200911	30300721	30200801	30200901	30300601	30300701	30200811	30300711
Description	Combination Line Connector, 8 Contact(s), Female	Combination Line Connector, 8 Contact(s), Female	Combination Line Connector, 7 Contact(s), Female,	Combination Line Connector, 8 Contact(s), Female,	Combination Line Connector, 7 Contact(s), Male,	Combination Line Connector, 8 Contact(s), Male,	Combination Line Connector, 2 Contact(s), Female	Combination Line Connector, 8 Contact(s), Female
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	MALE	MALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Shell material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Total number of contacts	8	8	7	8	7	8	2	8
Base Number Matches	1	1	1	1	1	1	1	1
Options	-	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE
