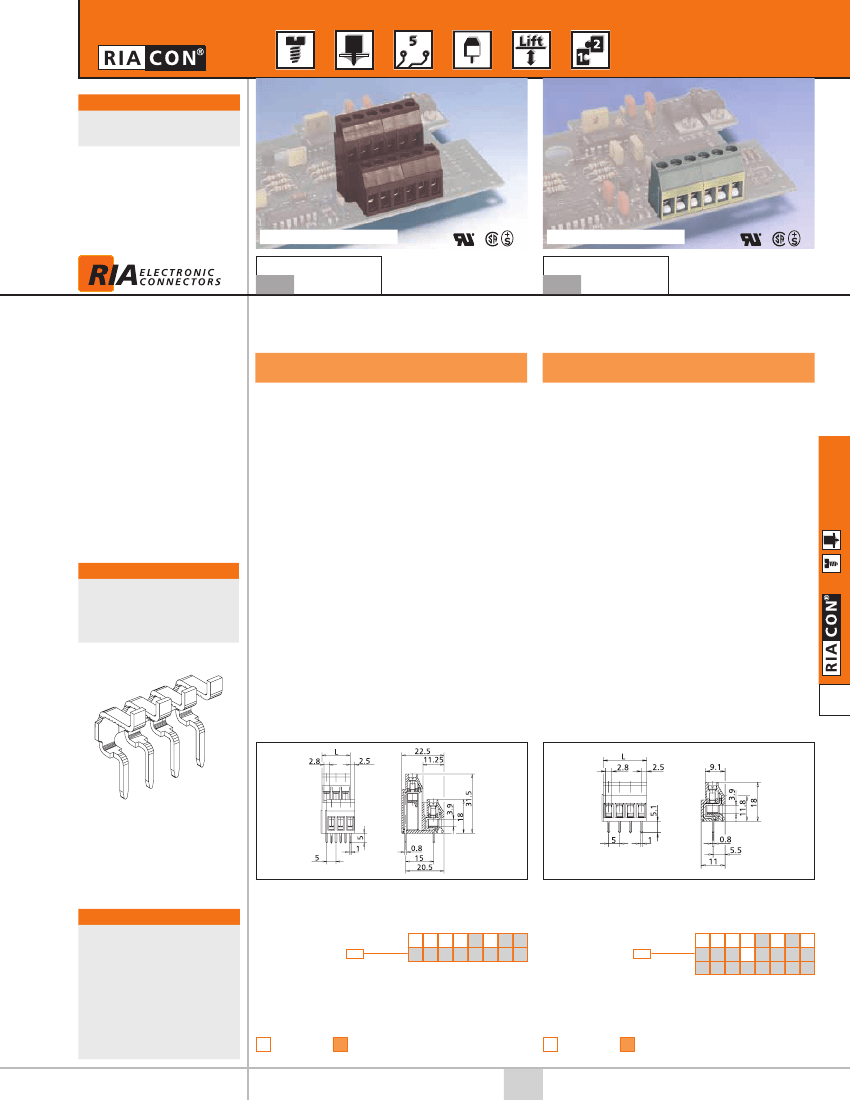

mm to inch
1 inch = 25.4 mm
1 mm = .040 inches
Designed to IEC 60664-1
Designed to IEC 60664-1
Type
96
with lift system
modular
two-tier terminal block
Type
65
with lift system
modular, distribution
terminal block
Electrical Data
Voltage
Current
Wire Range
Screw torque
Square pin
PCB hole diameter
Wire strip length
300 V
20 A
12 - 22 AWG
## (see note)
6 lbs. - in
.8 mm x 1 mm
1.4 mm
8 mm
Electrical Data
Voltage
Current
Wire Range
Screw torque
Square pin
PCB hole diameter
Wire strip length
300 V
20 A
12 - 22 AWG
## (see note)
6 lbs. - in
.8 mm x 1 mm
1.4 mm
8 mm
Mechanical Data
Housing
UL 94V-0
-40 °F to 189 °F
(-40 °C to 105 °C)
brown
brass, nickel plated
brass, tin over nickel plating
M3, steel
nickel over copper plating
4 and 6
Mechanical Data
Housing
UL 94V-0
-40 °F to 189 °F
(-40 °C to 105 °C)
green-yellow
brass, nickel plated
brass, tin over nickel plating
M3, steel
nickel over copper plating
optional: brass/stainless steel
- consult factory
2, 3, 4, 6, 8, 12
Note for Type 65
Distribution terminal block
The contact bodies are all
interconnected to act as a
“shorting” or “ground” block
Color
Terminal
Lift system
Screw
Pole sizes
Color
Terminal
Lift system
Screw
Pole sizes
Additional material data - pages DA-3 to DA-5
Additional material data - pages DA-3 to DA-5
Dimensions (mm)
Dimensions (mm)
L = (circuits - 1) x centerline + 5
L = (circuits - 1) x centerline + 5
Part Numbers
Note for wire range
Additional wire sizes and/or
combinations of same size
wires as follows:
Type 96
centerline 5 mm
Complete the part number
by adding the pole size.
Part Numbers
04
06
Type 65
Complete the part number
by adding the pole size.
centerline 5 mm
Part No.
310961
Part No.
310651
02 03 04
12
06
08
Type 96 and Type 65
##
2 No. 22-16 AWG
(Field-wiring);
2 No. 30-16 AWG
1 No. 30-12 AWG
(Factory-wiring)
01 standard
08 Available on demand. Minimum order
quantity 3000 poles per item.
01 standard
08 Available on demand. Minimum order
quantity 3000 poles per item.
Subject to technical changes and printing errors.
RIA electronic, Inc.
430 Industrial Way West, Eatontown, NJ 07724
phone 1-888-722-5625
•
fax 732-389-9066
•
www.riaelectronic.com
DA-21
