87543-1112 datasheet, PDF - EEWORLD Datasheet

87543-1112: DescriptionTelecom and Datacom Connector, 4 Contact(s), Female, Straight, Surface Mount Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size176KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

87543-1112 Overview

Telecom and Datacom Connector, 4 Contact(s), Female, Straight, Surface Mount Terminal, Locking, Receptacle,

Parameter Name	Attribute value
Objectid	1736155376
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TAPE&REEL PACKAGING,NOT TOOLED
Board mount options	SOLDER HOLDING FLANGE
body width	0.594 inch
subject depth	0.641 inch
body length	0.57 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30) OVER PALLADIUM NICKEL
Contact completed and terminated	TIN LEAD (100) OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Durability	250 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	4.8928 N
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	1
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	POLYETHYLENE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	4
UL Flammability Code	94V-0

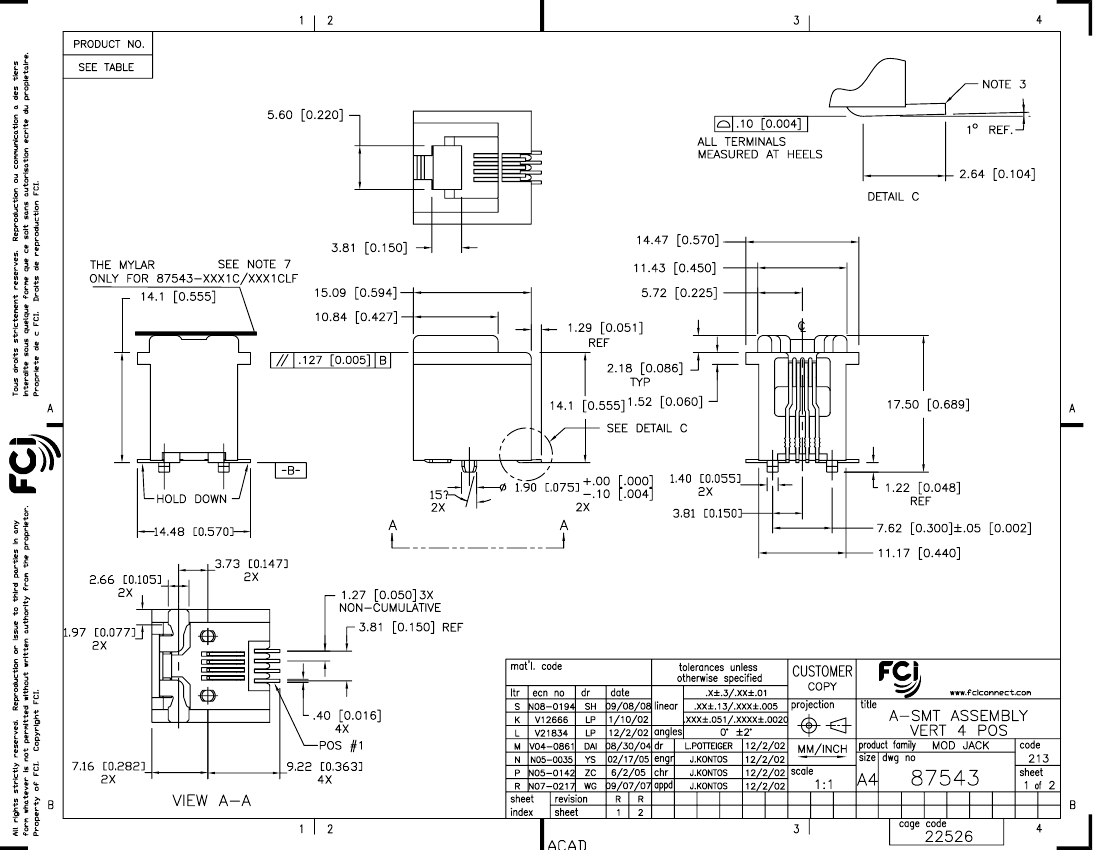

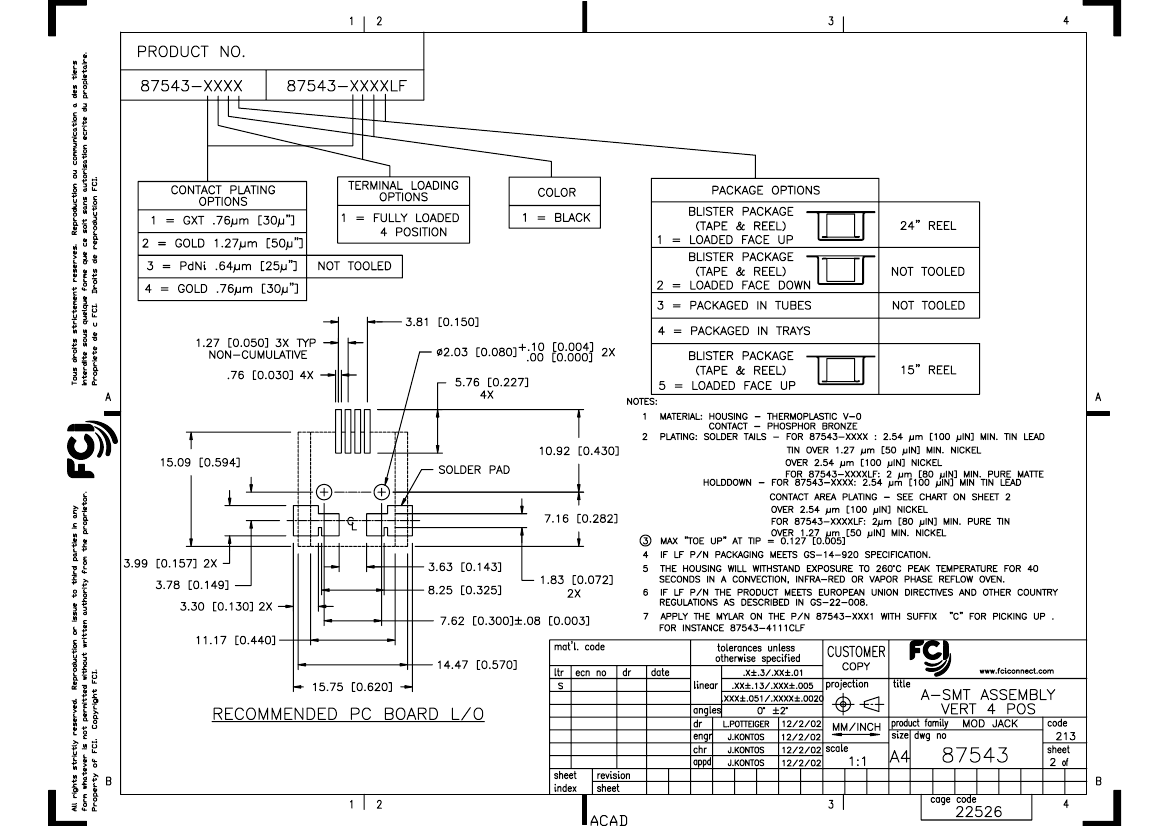

PDM: Rev:S

STATUS:

Released

Printed: Aug 01, 2010
