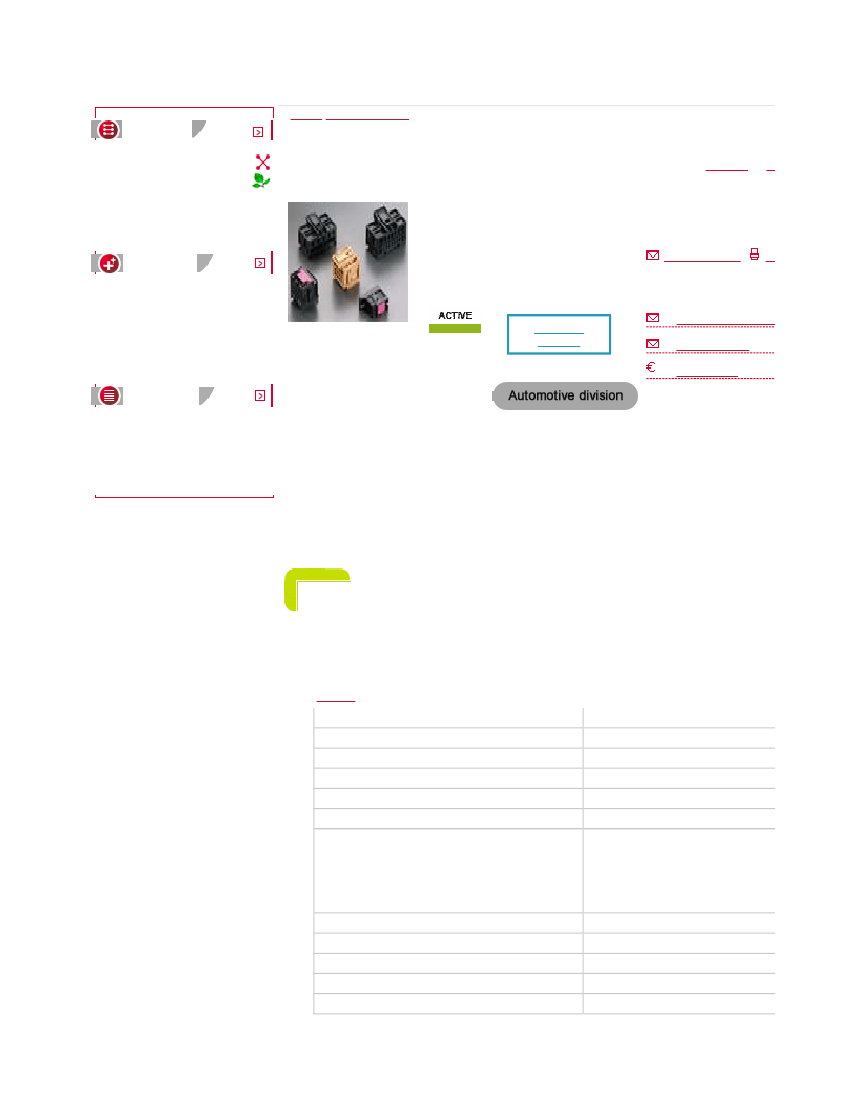

30220801
30220801
Assistant
Ad
Document & Drawing search
Application tooling
30220801
6 way Component-to-Wire Female
housing
Services
Contact us
Distributor list
Pricing request
Order samples
...
Email Datasheet
Pr
FCI Brings You More
Customer
Drawing
Contact our sales/tec
Sample request
Price request
Literature
Brochures & catalogs
Product documentation
Technical library
...
Specifications
General Mechanical Physical Terminal 1 Type Environmental Other Features
General
Application
Ways
Coding version
Product Type
Coding
Family
Wire to Device
6
Black
Housing
Yes
Wire to Device
Mechanical Polarization
Lateral Secondary Lock for Termina
Assurance (T.P.A.)
Plastic Locking Feature
Several Codings Available
No
DCS-2
1.5 mm
No
1.5
Features
Hybrid
Main Terminal family
Main Terminal size
Sealed
Terminal Size
http://portal.fciconnect.com/Comergent/en/US/adirect/fci?cmd=catProductDetail&showA... 11/22/2007
Product Detail Page
Page 2 of 2
Mechanical
Connector mating force
Physical
< 100N
Color
Material
Temperature (Range)
Terminal 1 Type
Black
PBT
-40°C to+120°C
Terminal type 1
Ways for Terminal Type 1
Contact insertion force for Terminal Type 1
Retention force (Contact) for Terminal Type 1
Environmental
DCS-2 Female 1.5 mm Terminal
6
< 10N
> 55N
IMDS
Other Features
Yes
Type
Female
For more Information, please contac
sales office.
Displayed data is for information pur
The supply of some products might
some customers.
Disclaimer
http://portal.fciconnect.com/Comergent/en/US/adirect/fci?cmd=catProductDetail&showA... 11/22/2007

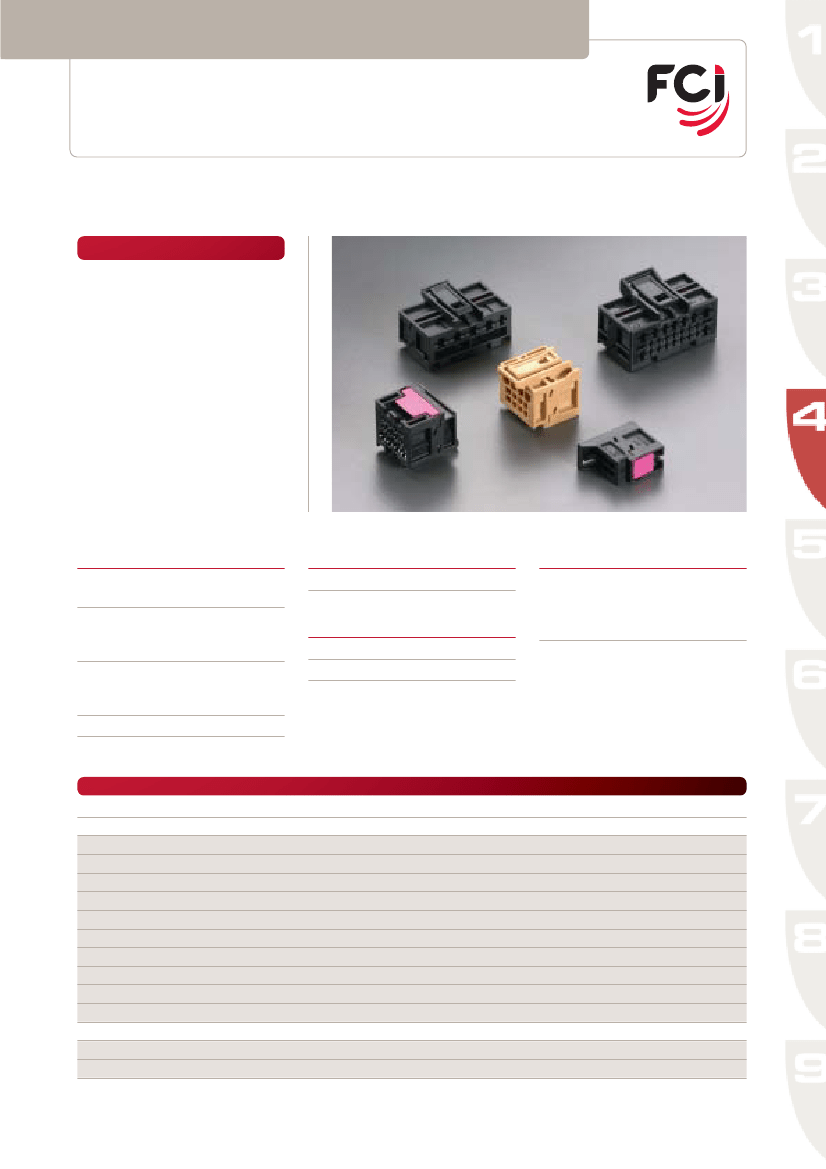

Instrument panel and cockpit connectors
Component-to-wire connectors
DCS-2
5/6/16/18 way female housing for 1.5 + 2.8 + 4.8 mm terminals
Features
•
5-6-16-18 position housing
•
•
•
•
•
available
Lateral secondary lock for terminal
position assurance (T.P.A.)
Plastic locking feature
Mechanical polarization
Several codings available
Several colours available
Performance characteristics
•
Temperature range:
from -40°C to +120°C
Construction
•
Housing material:
PBT
Connector compatibility
•
Usable terminals:
-
DCS-2 1.5 mm female terminals
-
DCS-2 2.8 mm female terminals
- 4.8 mm female terminals
•
Contact retention force:
> 55 N for DCS-2 1.5 mm terminals
> 80 N for DCS-2 2.8 mm terminals
Tooling
•
Terminal removal tool:
•
Mini applicator:
Consult us
Consult us
•
Contact insertion force:
< 10 N for DCS-2 1.5 mm terminals
> 15 N for DCS-2 2.8 mm terminals
•
Connector mating force:
< 100 N
Part Numbers
3 020 18 01
3 020 18 12
3 022 08 01
3 022 08 12
3 022 08 23
3 022 08 35
3 022 08 46
3 021 06 01
3 021 06 12
3 021 06 23
3 021 06 35
3 021 06 46
3 023 23 01
3 022 09 01
3 022 09 12
No. of position
5
5
6
6
6
6
6
6
6
6
6
6
16
18
18
Terminal size
1 x [2.8 mm] + 4 x [4.8 mm]
1 x [2.8 mm] + 4 x [4.8 mm]
1.5 mm
1.5 mm
1.5 mm
1.5 mm
1.5 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
12 x [1.5 mm] + 4 x [2.8 mm]
1.5 mm
1.5 mm
Colour
Black
Brown
Black
Brown
Red
Blue
White
Black
Brown
Red
Blue
White
Black
Black
Brown
4.32
Instrument panel and cockpit connectors
Component-to-wire connectors
DCS-2
5/6/16/18 way female housing for 1.5 + 2.8 + 4.8 mm terminals

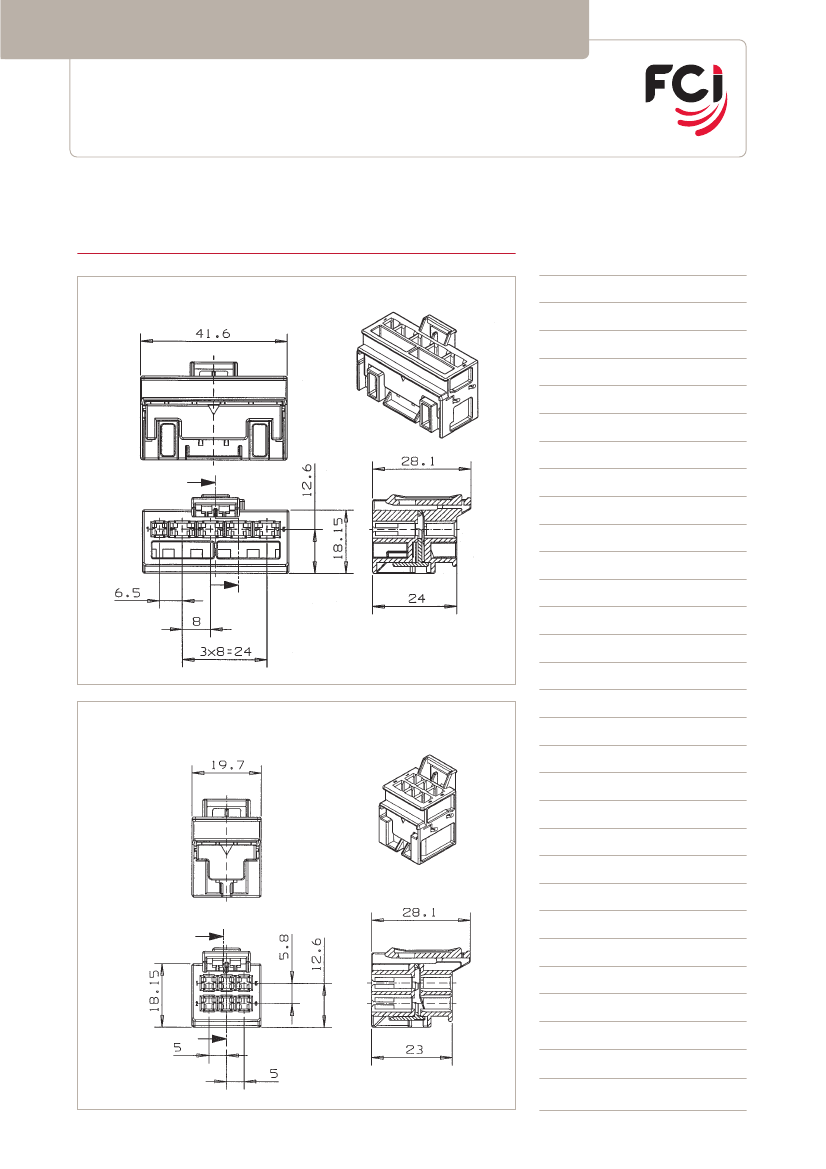

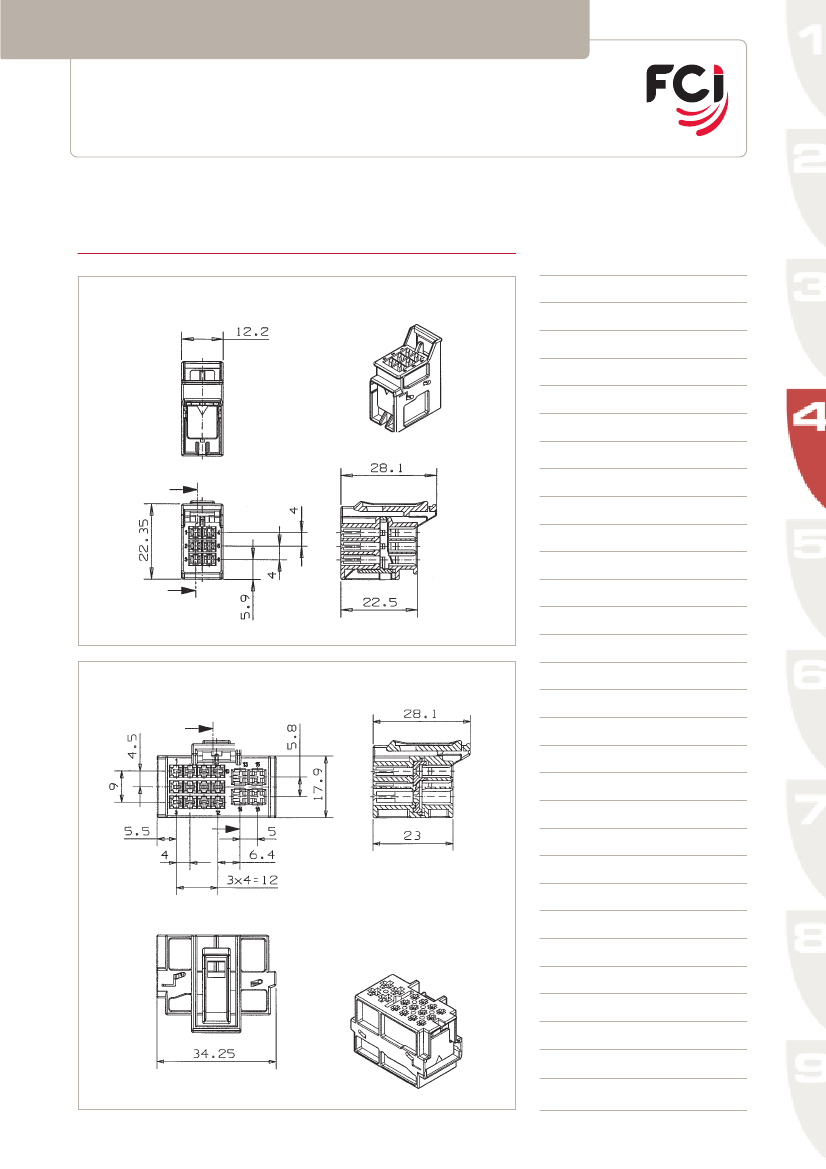

Dimensional characteristics
Notes:
5 way housing - 2.8 mm terminals
6 way housing - 2.8 mm terminals
4.33
Instrument panel and cockpit connectors
Component-to-wire connectors
DCS-2
5/6/16/18 way female housing for 1.5 + 2.8 + 4.8 mm terminals
Dimensional characteristics
Notes:
6 way housing - 1.5 mm terminals
16 way housing - 1.5+2.8 mm terminals
4.34
