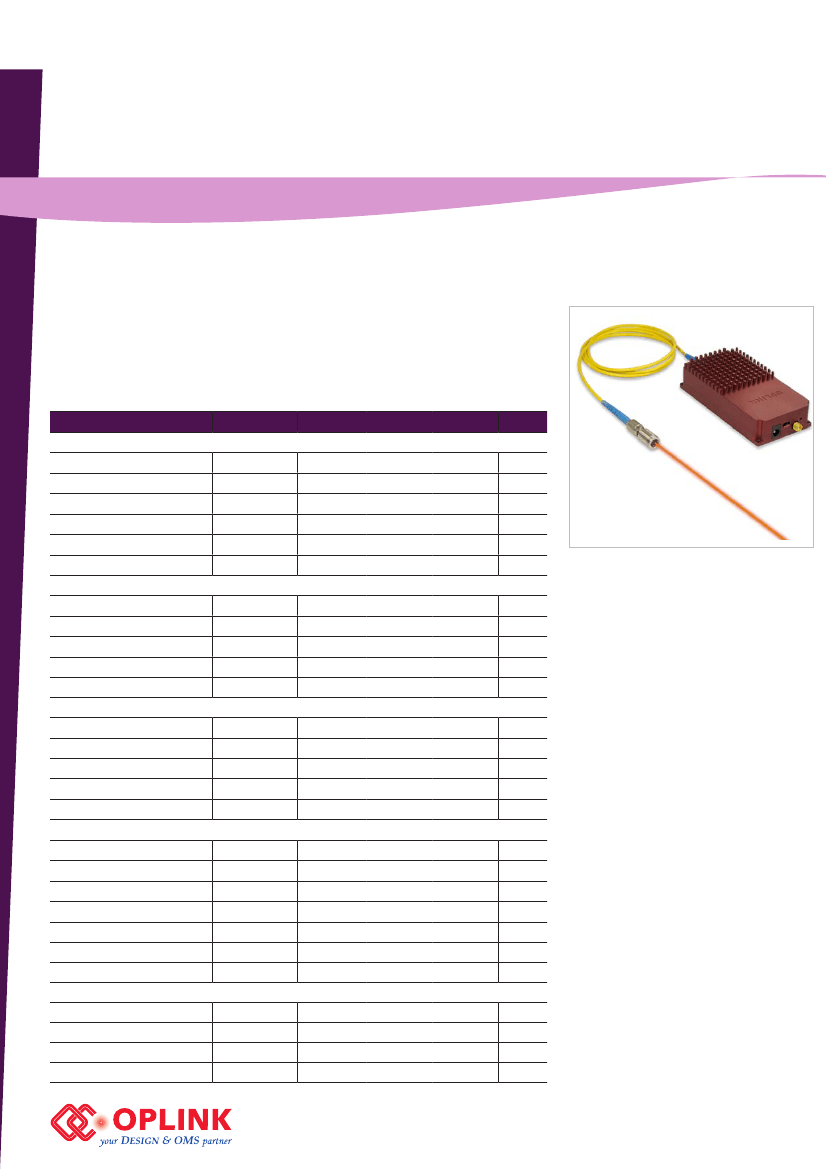

Fiber Coupled Laser Module
(635 nm)
FCLM635 Series
The FCLM
TM
Laser Module is a temperature stabilized semiconductor laser cou-
pled with single mode fiber. It features very low M
2
value Gaussian beam output
with excellent beam pointing stability at a wide temperature dynamic range. The
unique designed electrical driver enable this optical engine has the lowest power
consumptions compare to the similar product in the industry. The FCLM
TM
Laser
Module is a Class III b laser product
Performance Specificationns
Condition
Min
Typ
Max
Unit
Optical Performance
Wavelength
Output Power
Noise(RMS)
Power Stability
Power Stability
Polarization Extinction Ratio
Collimated Beam Parameters
M2
Beam Diameter
Beam Divergence
Pointing Stability
Pointing Stability
Fiber Information
Length
Fiber Type
Mode Field Diameter
NA
Fiber Jacket Diameter
Electrical Parameters
Power Supply
Power Consumption
Current(TEC)
Current(LD)
Temperature Stability
Control
Power Setting
Environmental Conditions
Storage Temperature
Operation Temperature
Operation Humidity
Package Dimensions
*
0 to + 50
+ 10 to + 40
No Condensing
112 x 56 x 26.5
mm
°C
°C
Note:
* The mechanical tolerance should be +/-0.2
mm on all package dimensions unless otherwise
custom specified.
T= 25°C
T= 25°C
10~20 MHz
1hrs, T= 25°C
24hrs, T= 25°C
15
635
20
0.1
0.25
0.75
0.3
0.5
1
nm
mW
%
%
%
dB
1.2
1/e2
full angle
2hrs, T= 25°C
0.7, 0.9, 1.5, 2.0, 4.0, 6.0
1
5
1
1, 2, 3
SM / PM
3
0.12
3
9
3
10
2
200
0.2
ACC
0% ~ 100% output power
mm
mrad
urad
urad/°C
m
um
mm
V
W
A
mA
°C
Features
Plug & Play
ESD Protection
Power Adjustable
LD Current Full Protection
LD Temperature Stabilized
Compact Size
Applications
Polarization Maintaining Fiber
High Speed Modulation
Remote Control
Collimated & Focused Beam
Metal Jacket Protection
R04.20090331
Fiber Coupled Laser Module
FCLM635 Series

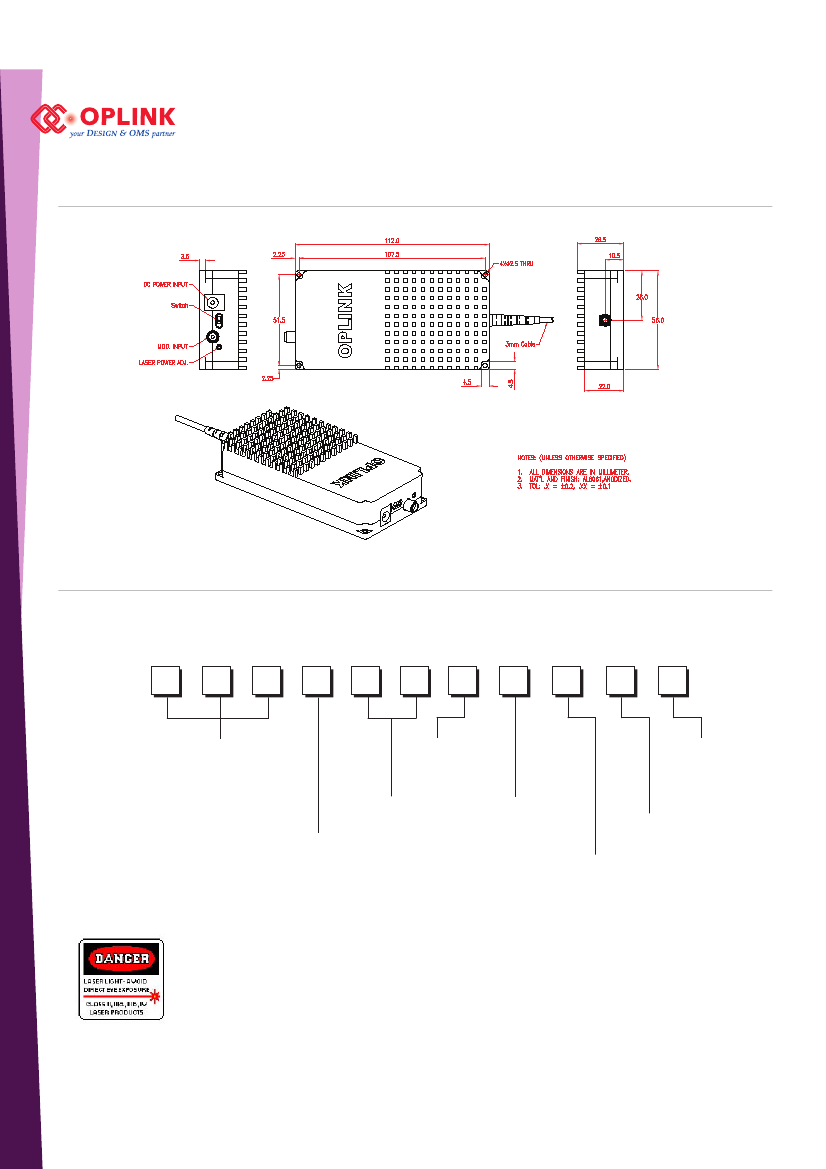

Mechanical Drawing / Package Dimensions (dimension in mm)
46335 Landing Pkwy Fremont, CA 94538 Tel: (510) 933-7200 Fax: (510) 933-7300 Email: Sales@Oplink.com • www.oplink.com
Ordering Information
Oplink can provide a remarkable range of customized optical solutions. For detail, please contact Oplink’s OEM
design team or account manager for your requirements and ordering information (510) 933-7200.
FCLM
6
3
5
Wavelength
635 nm= 635
Control Type
Local = L
Remote = R
Connector Type
None = 1
FC/PC = 2
FC/APC = 3
Power Output
20mW = 20
Operation Type
DC = D
Modulation = M
Fiber Length
Beam Size
0.7mm = 1
0.9mm = 2
1.5mm = 3
2.0mm = 4
4.0mm = 5
6.0mm = 6
None = 0
1 Meter 3mm Cable = 1
3 Meter 3mm Cable = 2
1 Meter Metal Jacket = 3
3 Meter Metal Jacket = 4
2 Meter 3mm Cable = 5
2 Meter Metal Jacket = 6
Fiber Type
Single Mode = S
Polarization Maintain = P
This component does not comply with the Federal Regulations (21 CFR Subchapter1 ) as administered by the Center for Devices and Radiological health. Purchaser acknowledges that his/
her products must comply with these regulations before they can be sold to a customer. The output light from this product is harmful to a human body even if it is invisible. Avoid looking at
the output of this product directly, or through a lens during operation. Observance of operation should be through a TV camera or related equipment. Refer to IEC 825-1 and 21 CFR 1040.10-
1040.11 as a radiation safety standard for laser products.
Oplink follows a policy of continuous product improvement. Specifications are subject to change without prior notice.
The module’s warranty is 1 year.
R04.20090331
