F
orce
Optical Broadcast Systems
S
mart
IFLs
L-Band
Model 3034
• Request Pricing
• Download User Manual
Short Range L-Band Transmitter
SNMP for remote monitoring
and control of all modules.
Transmits all 75 Ohm video, audio,
and data formats up to 2 km.
Offers flat frequency response from
850 to 2500 MHz.
1310 nm FP laser optics; 75 Ohm
operation in 3RU rack-mount or stand-
alone configurations.
Rugged stand-alone enclosures and
weatherproof connectors can withstand
the extreme environments experienced by
satellite installations.
3RU rack chassis accommodates
eight transmitters and/or receivers
and two power supplies for system
reliability.

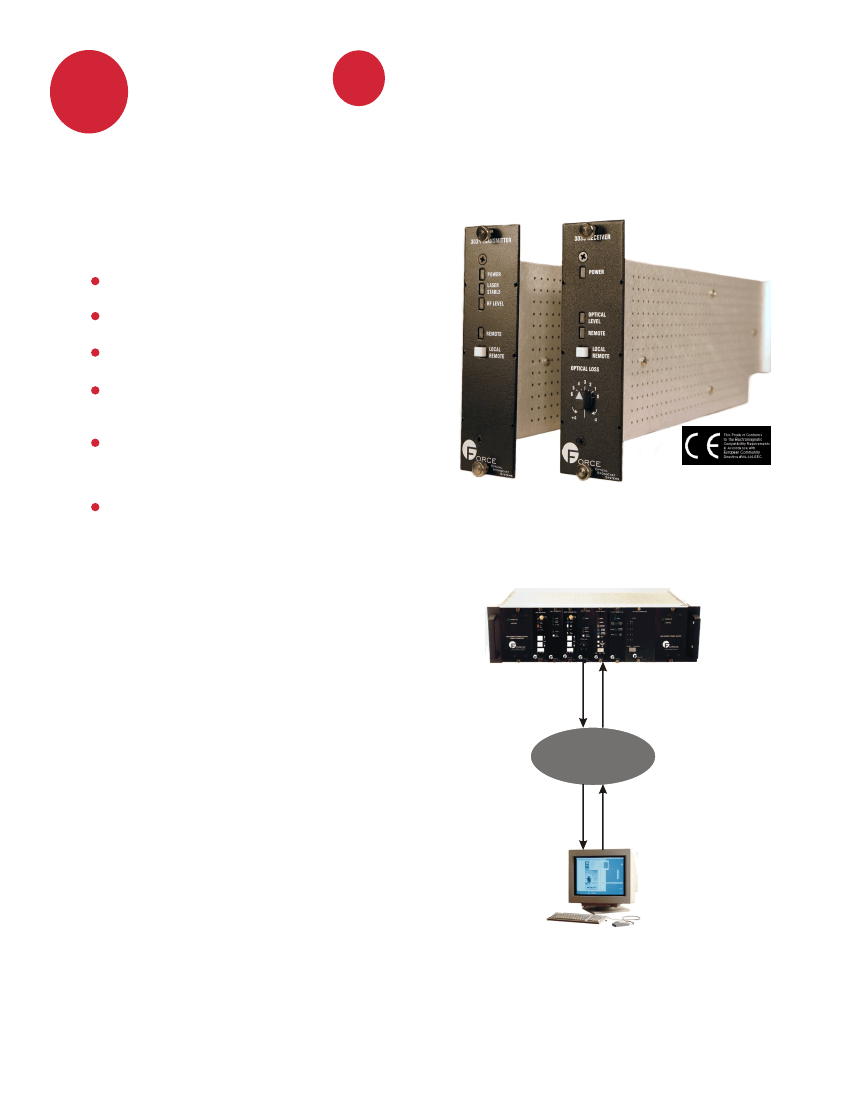

3RU Model 3034T/3035R 3RU Short Range
75 Ohm L-Band Transport Link
Monitoring and Control
of RF/Optical Systems
3000 Series Modules
The Force
Smart IFL
TM
Model 3034 Medium Range L-Band
Satellite Transport Link is designed to transport 75 Ohm
signals in the 850 to 2500 MHz range for satellite uplink or
downlink applications up to 2 km. The link may be ordered
in a stand-alone or 3RU rack-mount configuration. The
3RU configuration rack-mounts up to eight hot-swappable
transmitters and/or Model 3035 receivers and two power
supplies in a 3RU 19" rack chassis for increased system
reliability. The Model 3034 provides the user with manual
gain control which allows the user to tailor the module
input and output levels to maintain consistent
performance. Available with 1310 nm Fabry-Perot (FP)
optics, the Model 3034 can be configured to meet almost
any medium range design need. Indicator LEDs for Laser
Status, RF Level, and Local/Remote Operation (Tx), as well
as an indicator for No Optical (or low optical) input (Model
3035 Rx) allow the user to quickly assess the link’s
operational status. The 3RU version may be used with
Force's SNMP compatible power supplies for SNMP
monitoring and control of the link. As part of the 3000
Series L-Band and IF family, the Model 3034 provides the
professional satellite operator a high performance
solution for satellite communications.
MONITORING
SNMP
MANAGEMENT
TOOL
MONITORING
CONTROL
REMOTE PC
3000 Series Modules
with 3000 3RU Chassis
and SNMP Power Supply
825 Park Street, Christiansburg, VA 24073 • USA (800) 732-5252 • TEL (540) 382-0462 • FAX (540) 381-0392 •csr-sales@forceinc.com • www.forceinc.com
© 2005 by Force, Incorporated. Force, Incorporated reserves the right to make changes to the product described in this document in the interest of product improvement. All rights reserved.
CONTROL
Specifications and Ordering Information
Optical and RF Characteristics
Output Wavelength
Tx Optical Output Power
Rx Optical Input Power
Optical Loss Range
I/O Impedance
Frequency Range
Flatness (850-2500 MHz)
Flatness (950-2150 MHz)
Flatness
(any 36 MHz, 850-2500 MHz)
Flatness
(any 36 MHz, 950 -2150 MHz)
RF Gain Variation Over Temp
Link RF Gain
RF Input Range
(Small Aperture)
RF Input Range
(Large Aperture)
Input 1 dB Compression Point
Output 1 dB Compression Point
System Output OIP3
Noise Figure (0 dB Opt. Loss)
Intermodulation Products
SDFR (0 dB Opt. Loss)
Input/Output Return Loss
Input/Output VSWR
Group Delay Variation
1.
2.
3.
4.
5.
Electrical Characteristics
Max
1340
+4
+4
2
Units
nm
dBm
dBm
dB
Ohms
MHz
dB
dB
dB
dB
dB
dB
dBm
dBm
dBm
dBm
dBm
dB
dBc
dB/Hz
dB
ns
Min
Power Supply Voltage
Tx Supply Current
Rx Supply Current
Typ
+20
165
220
Max
Units
VDC
mA
mA
Min
1280
+2
-4
0
850
Typ
1310
+3
75
3000
±1.25 ±1.5
±0.75 ±1.00
±0.35
± 0.25
-2
0
+2
+10
-40
-15
-25
0
-7
-5
+8 +10
+18 +20
20
22
55
106
109
12
14
1.5
1.7
1.0
Physical Characteristics
Typ
Max
3RU Module Weight
8
227
3RU Module Dimensions
5.06 x 1.39 x 12.00
129 x 36 x 305
Stand-alone Module Weight
2
0.91
Stand-alone Module Dimensions 4.36 x 1.26 x 11.50
111 x 32 x 292
Min
Units
oz
g
in.
mm
lbs.
kg
in.
mm
Environmental Characteristics
Min
Operating Temperature Range -10
Storage Temperature Range
-40
Humidity (RH, non-condensing) 5
Typ
Max
+55
+60
95
Units
°C
°C
%
Link gain can be adjusted to specified limits up to a maximum loss of 6 dB (12 km).
The Optical Loss knob controls the link gain over the full optical loss range.
Optimal ranges are: -15 to -35 dBm, small aperture and 0 to -20 dBm, large aperture.
SFDR = 2/3 (Input Third Order Intercept (dBm) - Equivalent Input Noise (dBm/Hz)).
This Product Conforms to the Electromagnetic Compatibility Requirements in
accordance with European Community Directive #89-336-EEC.
3035 Tx and Rx Options
Tx, 75 Ohm, 1310 nm,
SM, SC/APC
Rx, 1310/1550 nm,
SM, SC/APC
3RU Rack-mount Stand-alone 3RU Rack-mount
Small Aperture Small Aperture Large Aperture
3034TA-SCSP
1
3035RA-SFSP
1
3034TB-SCSP
1
3035RB-SFSP
1
3034TC-SCSP
1
3035RA-SFSP
1
Stand-alone
Large Aperture
3034TD-SCSP
1
3035RB-SFSP
1

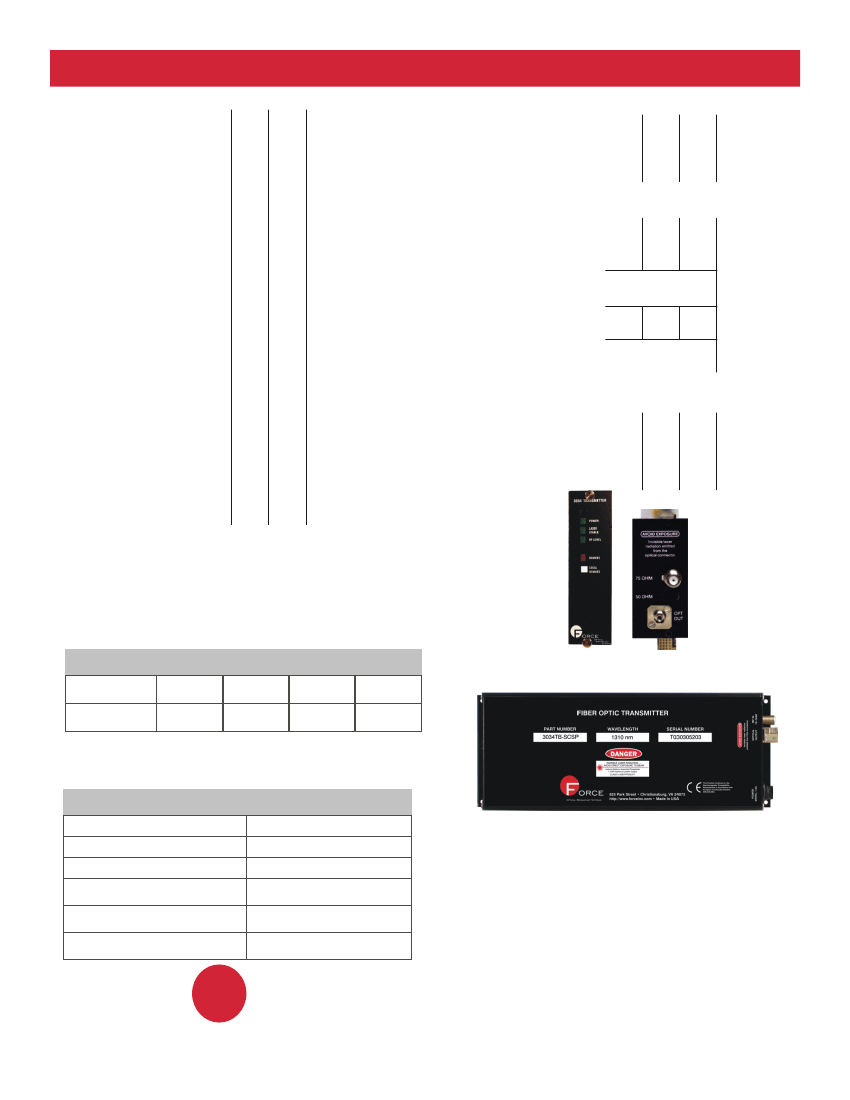

Model 3034 3RU Transmitter Front and Rear Panels
1. FC/APC connectors are also available. Replace SP in the part number with AP.
3RU Chassis and all Power Supplies
Chassis, Power Supply and Panel Options
3RU Chassis, Holds 8 Modules and 2 P.S.
3RU Power Supply, Universal AC
3RU Power Supply, -48 Volts DC
Wall-mount Power Supply, +20 Volts DC,
1.5A, Used with Stand-alone Units
3RU Blank Panel for Unused Module Slots
(optional)
3RU Blank Panel for Unused P.S. Slot (optional)
Part Number
3000CB-NN
3000UC-NN
3000UE-NN
PS3000
3000EA-NN
3000EB-NN
Model 3034 Stand-alone Transmitter
Rev. 2.4 04/06/05
Optical Broadcast Systems
© 2005 by Force, Incorporated. Force, Incorporated reserves the right to make changes to the product described in this document in the interest of product improvement. All rights reserved.
F
orce
825 Park Street, Christiansburg, VA 24073
USA (800) 732-5252 • TEL (540) 382-0462 • FAX (540) 381-0392
csr-sales@forceinc.com • www.forceinc.com
