D15S91C4GI00 Overview

D Subminiature Connector, 15 Contact(s), Female, Press Fit Terminal

Parameter Name	Attribute value
Reach Compliance Code	compliant
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	D15S91C4GI00
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Housing size	2/A
Termination type	PRESS FIT
Total number of contacts	15
Base Number Matches	1

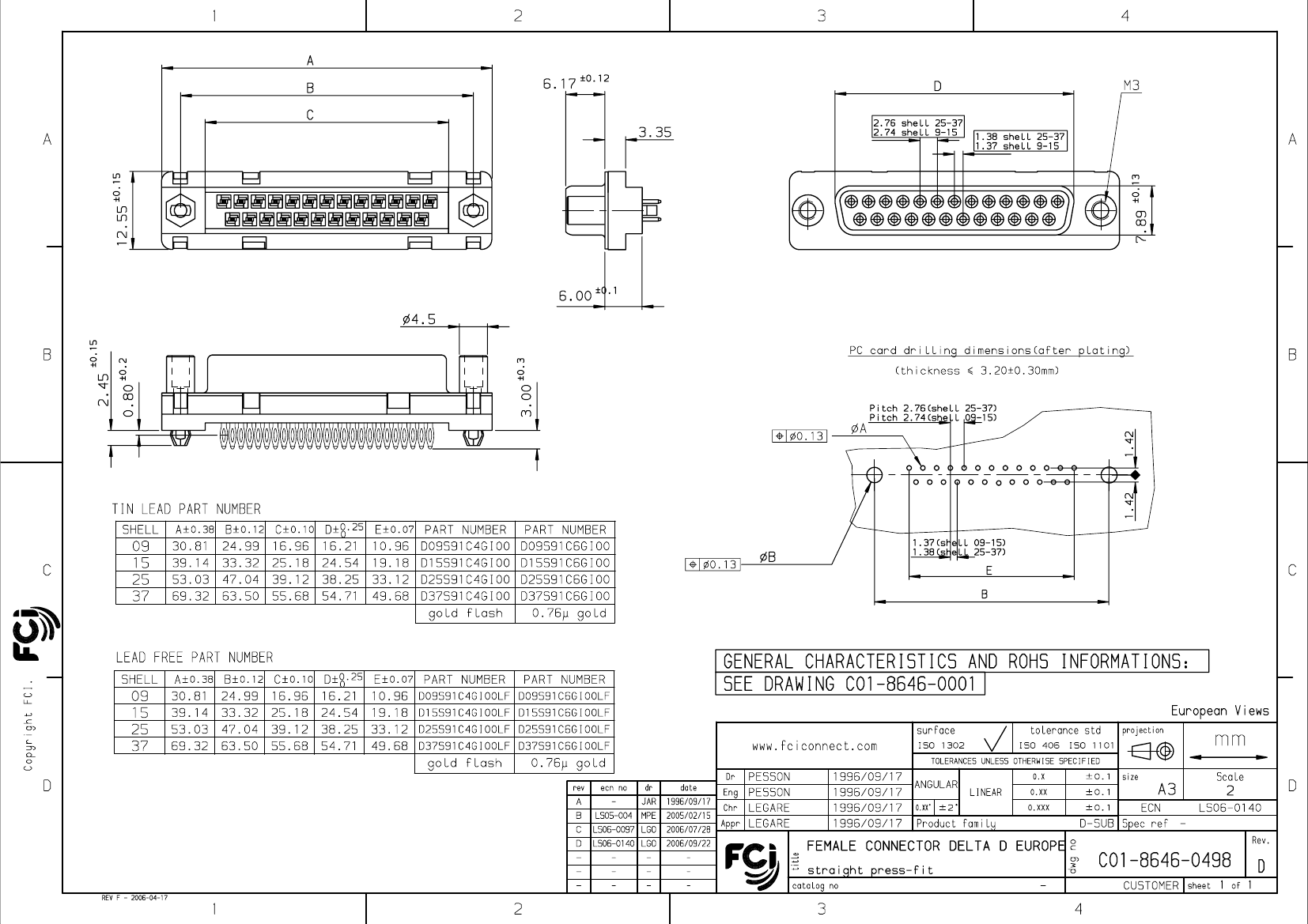

PDM: Rev:D

STATUS:

Released

Printed: Jan 18, 2011

.

	D15S91C4GI00	D09S91C6GI00	D37S91C4GI00	D25S91C4GI00	D37S91C6GI00
Description	D Subminiature Connector, 15 Contact(s), Female, Press Fit Terminal	D Subminiature Connector, 9 Contact(s), Female, Press Fit Terminal	D Subminiature Connector, 37 Contact(s), Female, Press Fit Terminal	D Subminiature Connector, 25 Contact(s), Female, Press Fit Terminal	D Subminiature Connector, 37 Contact(s), Female, Press Fit Terminal
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	D15S91C4GI00	D09S91C6GI00	D37S91C4GI00	D25S91C4GI00	D37S91C6GI00
Mixed contacts	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Housing size	2/A	1/E	4/C	3/B	4/C
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	15	9	37	25	37
Base Number Matches	1	1	1	1	-
