53611-G16-4R datasheet, PDF - EEWORLD Datasheet

53611-G16-4R: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle; CategoryThe connector The connector; File Size137KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

53611-G16-4R Overview

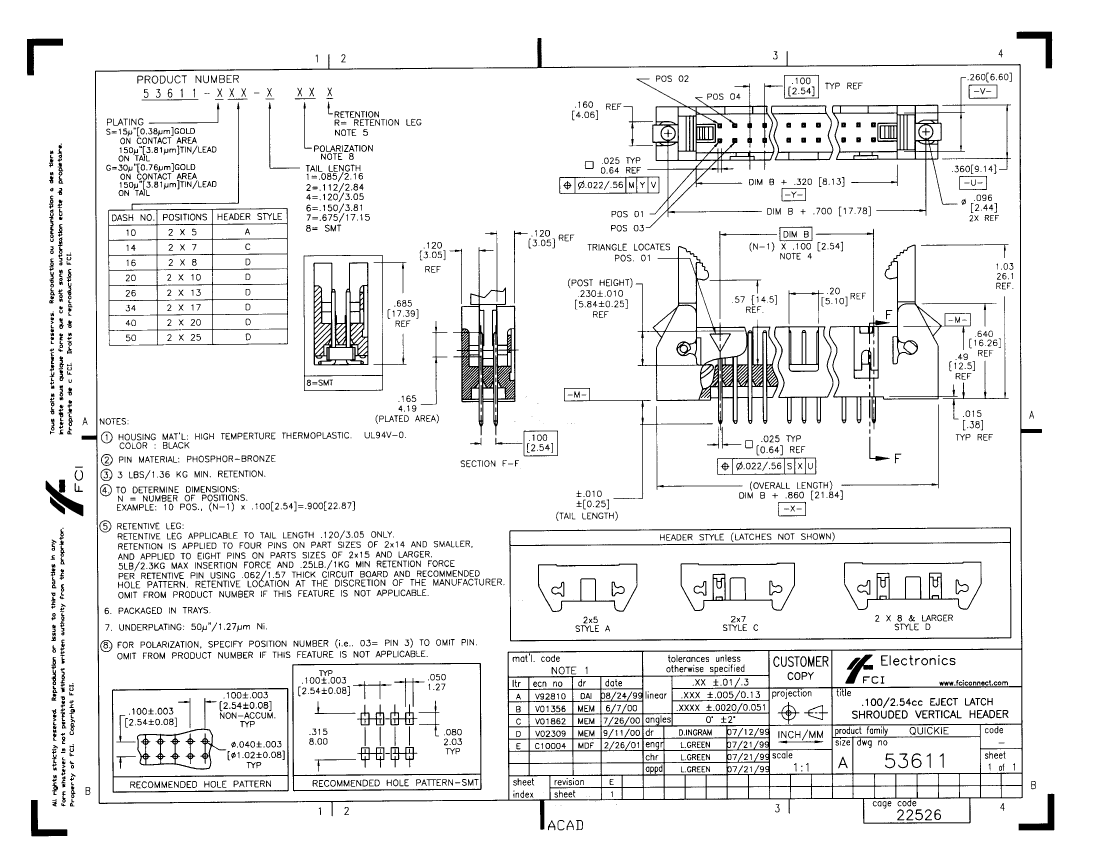

Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TRAY PACKING, RETENTION LEG
body width	0.36 inch
subject depth	0.64 inch
body length	1.56 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Durability	100 Cycles
maximum insertion force	2.224 N
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e0
Manufacturer's serial number	53611
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
Evacuation force-minimum value	.2502 N
Base Number Matches	1

PDM: Rev:E

STATUS:

Released

Printed: Aug 02, 2002
