53611-S10-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 53611-S10-6

53611-S10-6: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle; CategoryThe connector The connector; File Size194KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

53611-S10-6 Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle

53611-S10-6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POLARIZED
body width	0.36 inch
subject depth	0.64 inch
body length	1.26 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.224 N
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	53611
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.15 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0
Evacuation force-minimum value	.2502 N
Base Number Matches	1

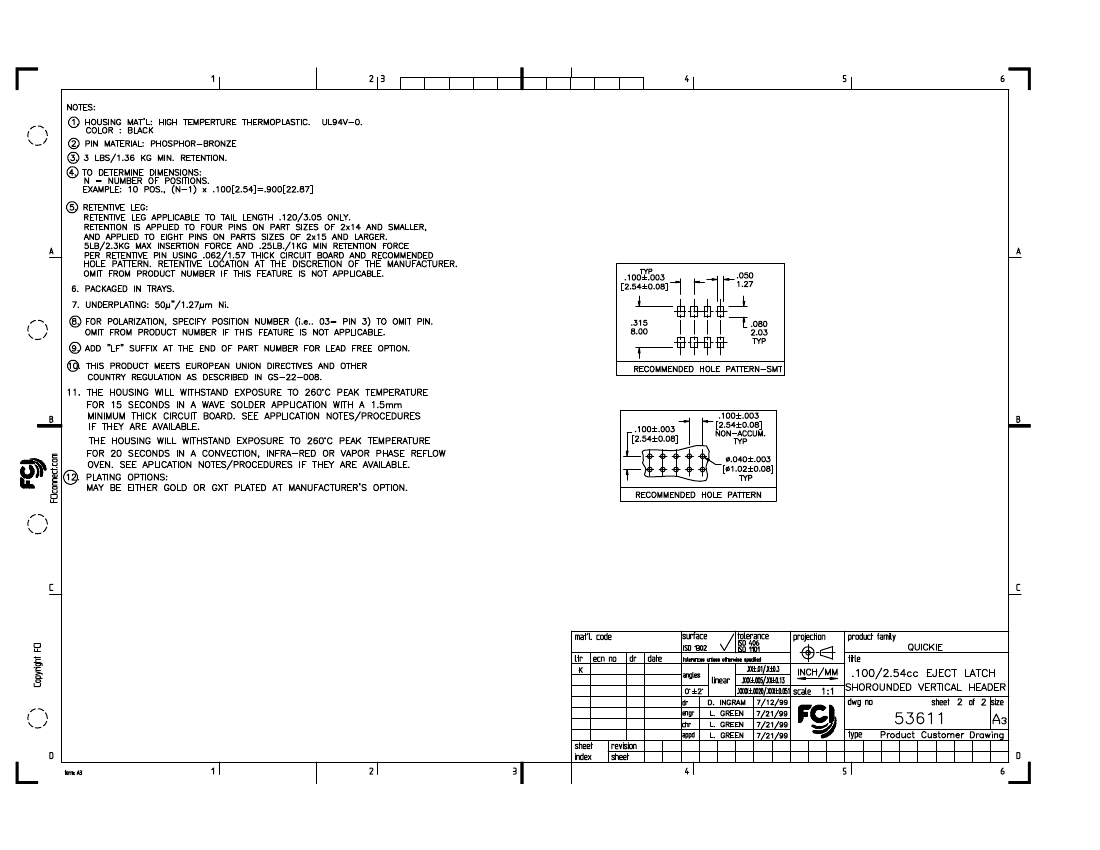

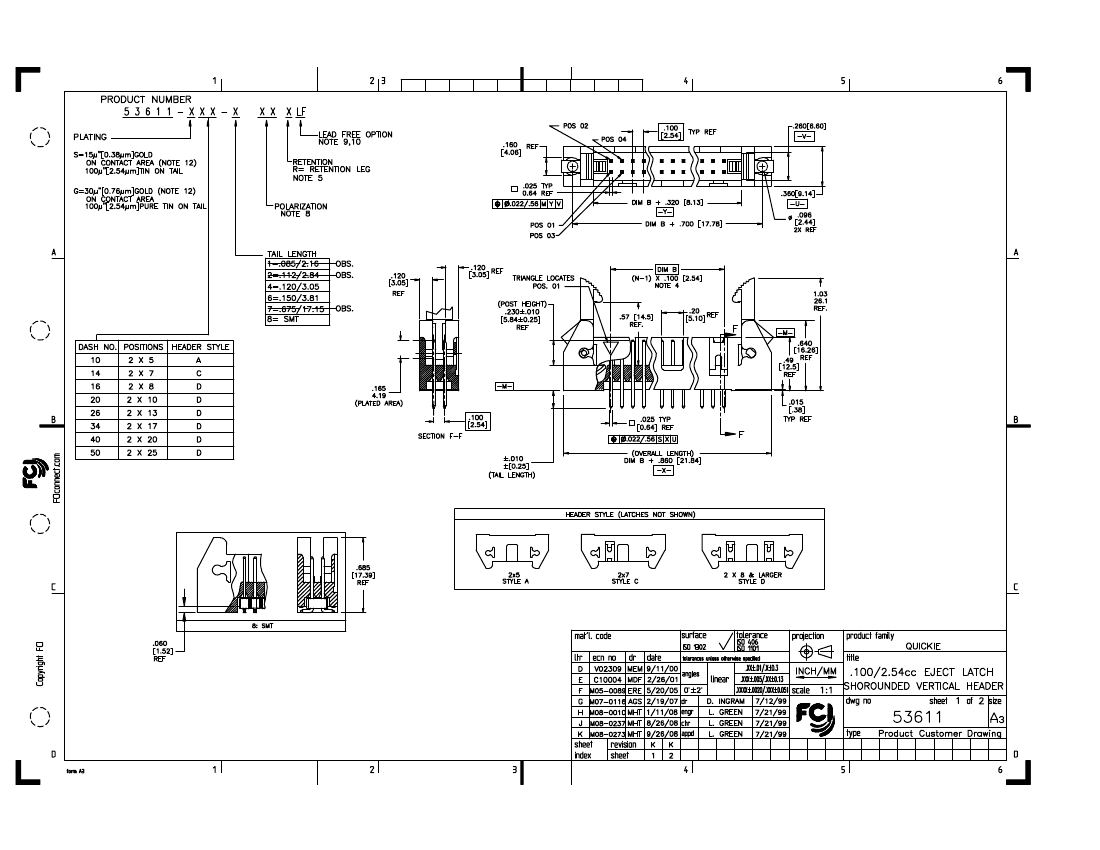

Preview

Download Datasheet

View All

PDM: Rev:K

STATUS:

Released

Printed: Apr 12, 2011

53611-S10-6 Related Products

	53611-S10-6	53611-G10-4	53611-G10-6	53611-G14-4	SGT7690500	53611-G16-6	53611-G34-4	53611-S10-8
Description	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle	Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle	Three phase power solid state relay	Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle	Board Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Latch & Eject, Black Insulator, Receptacle,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	-	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant	-	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	-	POLARIZED	POLARIZED	POLARIZED
body width	0.36 inch	0.36 inch	0.36 inch	0.36 inch	-	0.36 inch	0.36 inch	0.36 inch
subject depth	0.64 inch	0.64 inch	0.64 inch	0.64 inch	-	0.64 inch	0.64 inch	0.64 inch
body length	1.26 inch	1.26 inch	1.26 inch	1.56 inch	-	1.56 inch	2.46 inch	1.26 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	-	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	-	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	MALE	MALE	MALE	MALE	-	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	-	10 mΩ	10 mΩ	10 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	-	NO	NO	NO
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V	1500VAC V	-	1500VAC V	1500VAC V	1500VAC V
Durability	100 Cycles	100 Cycles	100 Cycles	100 Cycles	-	100 Cycles	100 Cycles	100 Cycles
Filter function	NO	NO	NO	NO	-	NO	NO	NO
IEC compliance	NO	NO	NO	NO	-	NO	NO	NO
maximum insertion force	2.224 N	2.224 N	2.224 N	2.224 N	-	2.224 N	2.224 N	2.224 N
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	-	10000000000 Ω	10000000000 Ω	10000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	-	BLACK	BLACK	BLACK
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	-	THERMOPLASTIC	THERMOPLASTIC	POLYETHYLENE
JESD-609 code	e0	e0	e0	e0	-	e0	e0	e0
MIL compliance	NO	NO	NO	NO	-	NO	NO	NO
Manufacturer's serial number	53611	53611	53611	53611	-	53611	53611	-
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	-	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	-	0.1 inch	0.1 inch	0.1 inch
Mixed contacts	NO	NO	NO	NO	-	NO	NO	NO
Installation option 1	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT	-	LATCH & EJECT	LATCH & EJECT	LATCH & EJECT
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	-	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	-	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	-	ONE	ONE	ONE
PCB row number	2	2	2	2	-	2	2	2
Number of rows loaded	2	2	2	2	-	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	-	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-	-65 °C	-65 °C	-65 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm	5.969 mm
Plating thickness	15u inch	30u inch	30u inch	30u inch	-	30u inch	30u inch	15u inch
Rated current (signal)	3 A	3 A	3 A	3 A	-	3 A	3 A	3 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	-	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	-
Terminal length	0.15 inch	0.12 inch	0.15 inch	0.12 inch	-	0.15 inch	0.12 inch	-
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	-	SOLDER	SOLDER	SURFACE MOUNT
Total number of contacts	10	10	10	14	-	16	34	10
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	-	94V-0	94V-0	94V-0
Evacuation force-minimum value	.2502 N	.2502 N	.2502 N	.2502 N	-	.2502 N	.2502 N	.2502 N
Base Number Matches	1	1	1	1	-	1	1	-
