GD74HC257D datasheet, PDF - EEWORLD Datasheet

GD74HC257D: DescriptionMultiplexer, HC/UH Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, PDSO16,; Categorylogic logic; File Size109KB，5 Pages; ManufacturerGoldstar Electron Co., Ltd.

Download Datasheet Parametric View All

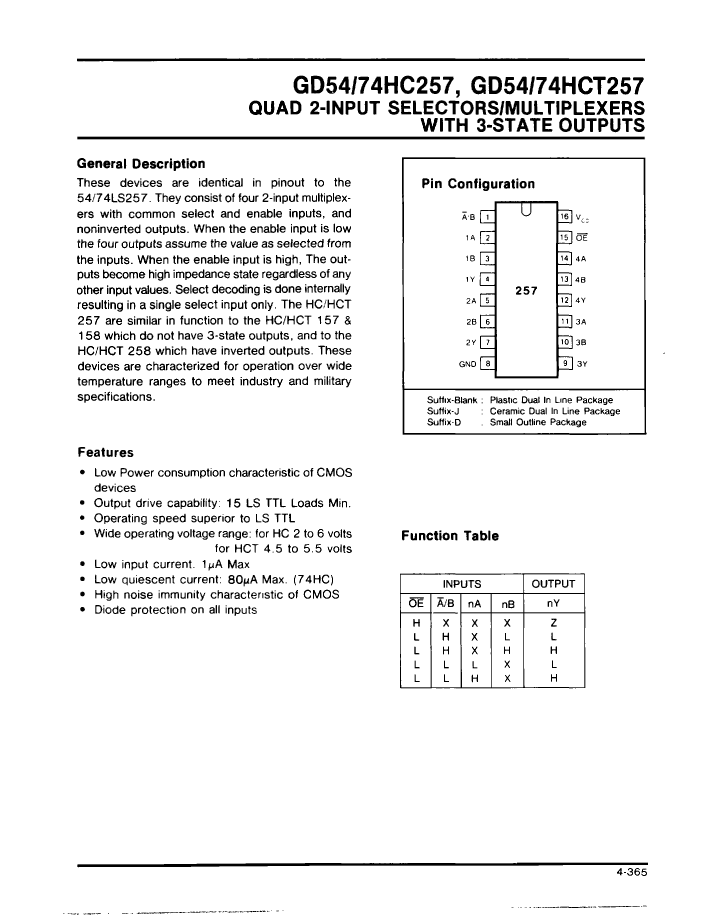

GD74HC257D Overview

Multiplexer, HC/UH Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, PDSO16,

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
series	HC/UH
JESD-30 code	R-PDSO-G16
Load capacitance (CL)	50 pF
Logic integrated circuit type	MULTIPLEXER
Number of functions	4
Number of entries	2
Output times	1
Number of terminals	16

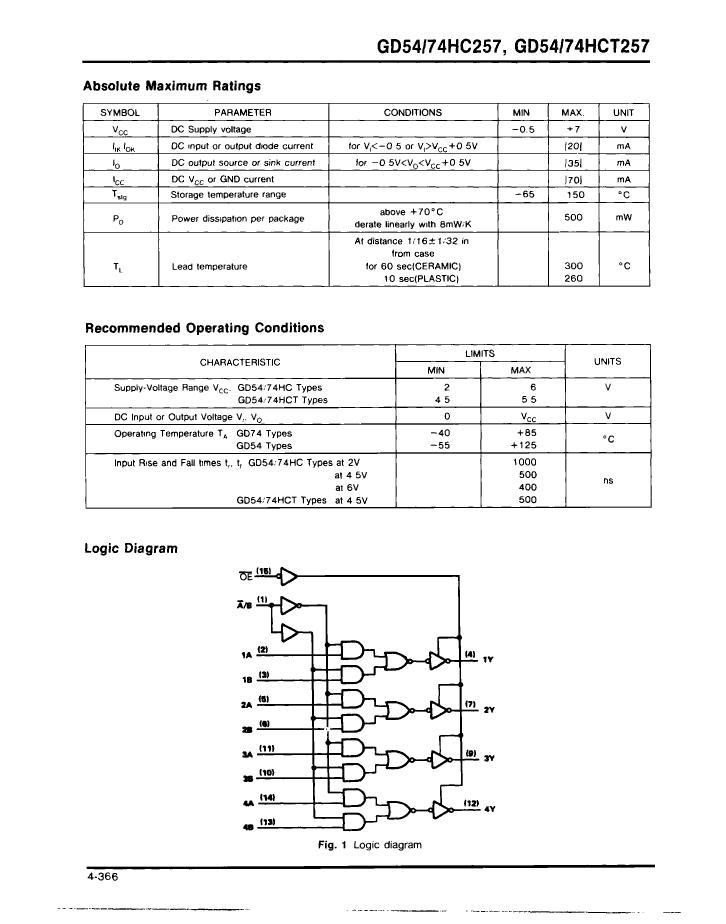

Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE

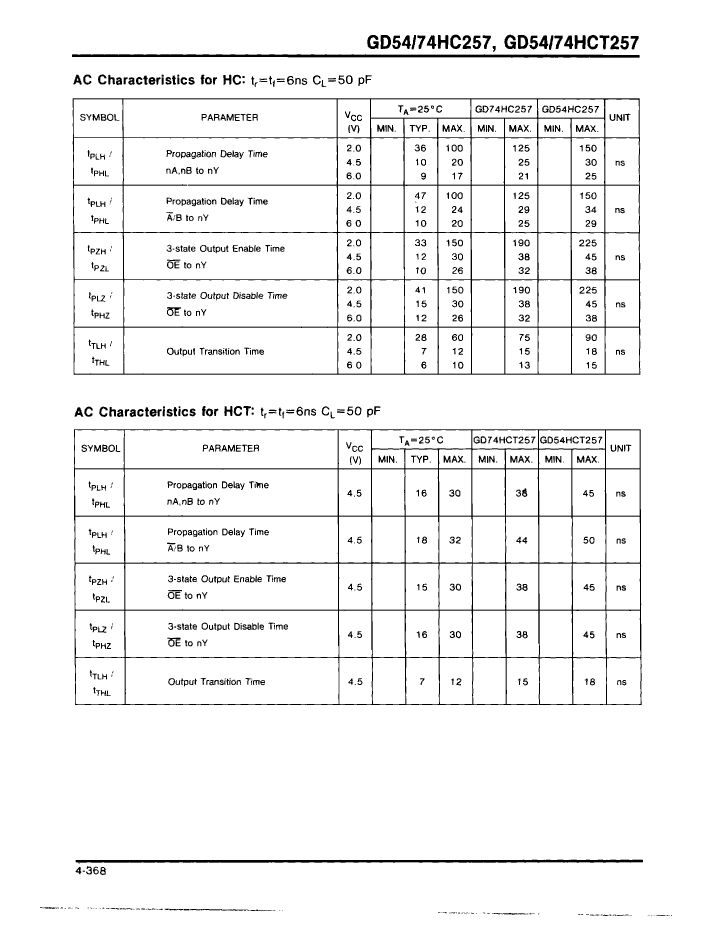

propagation delay (tpd)	29 ns
Certification status	Not Qualified

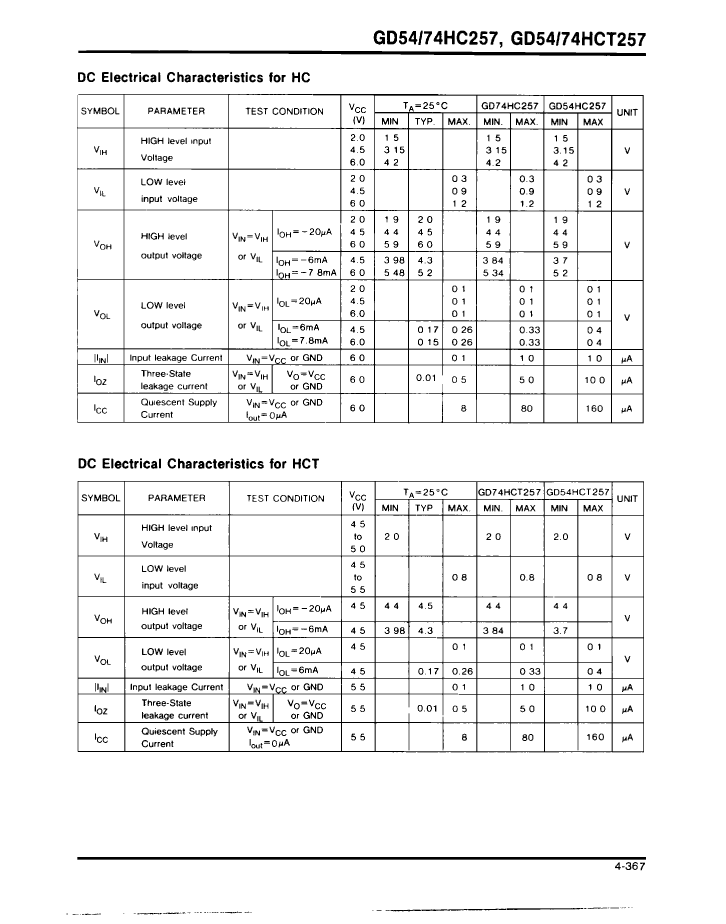

Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1
