GD74HCT221 Overview

Monostable Multivibrator, CMOS, PDIP16,

GD74HCT221 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Logic integrated circuit type	MONOSTABLE MULTIVIBRATOR
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

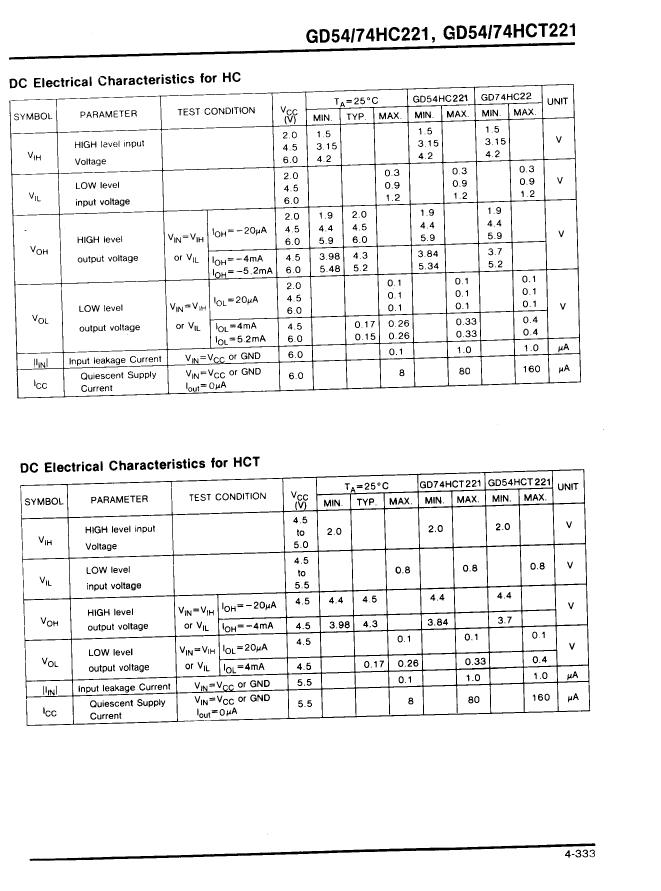

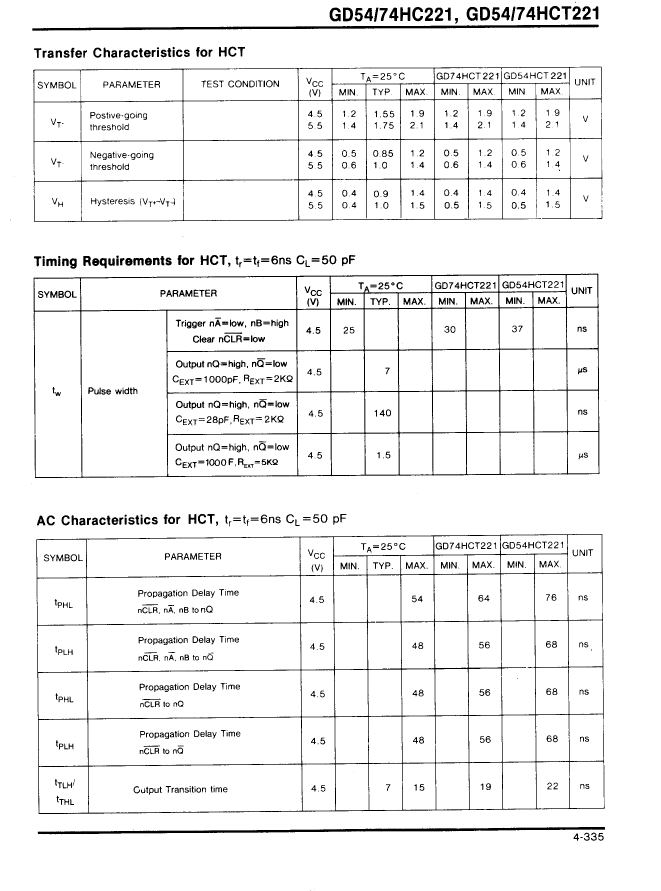

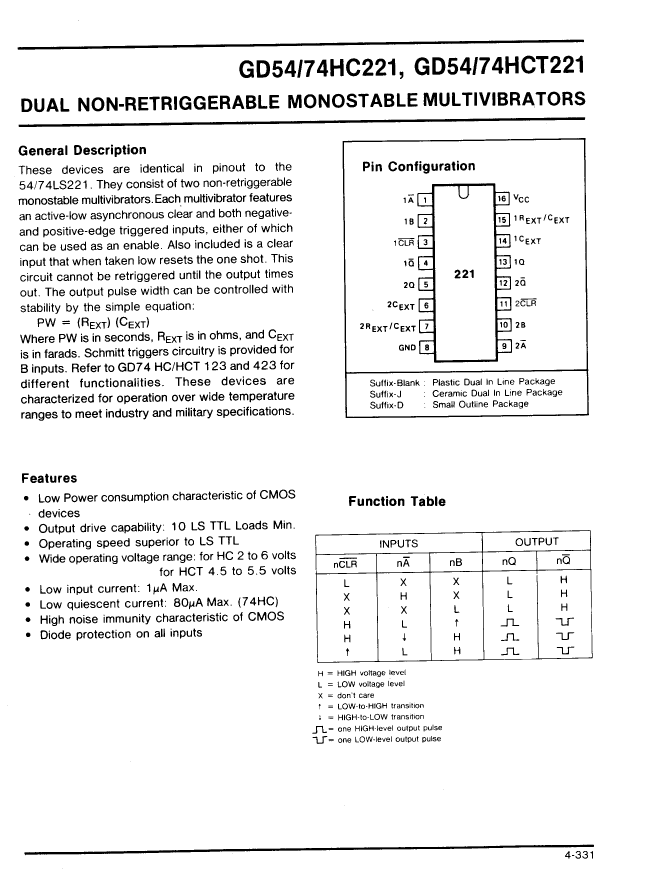

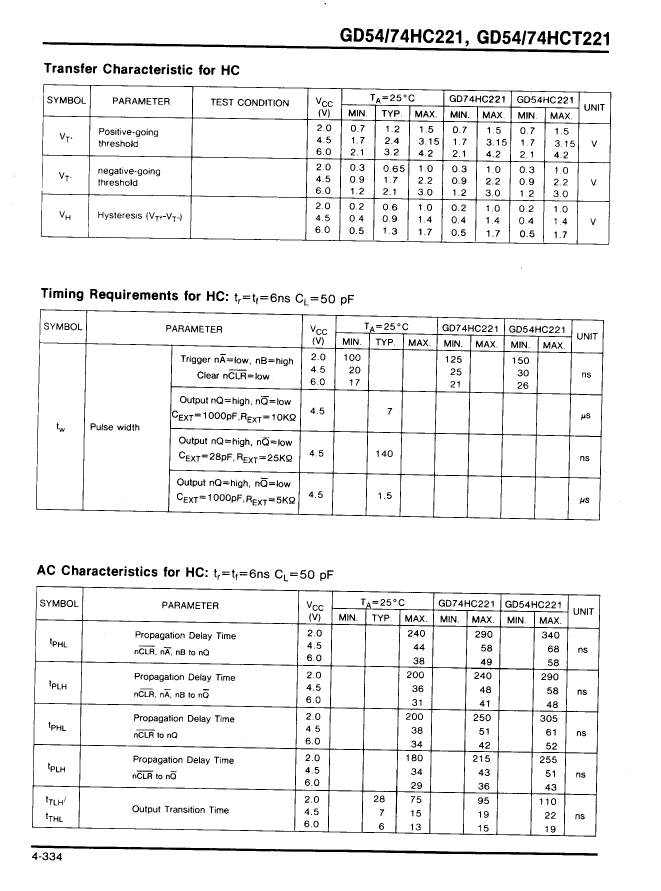

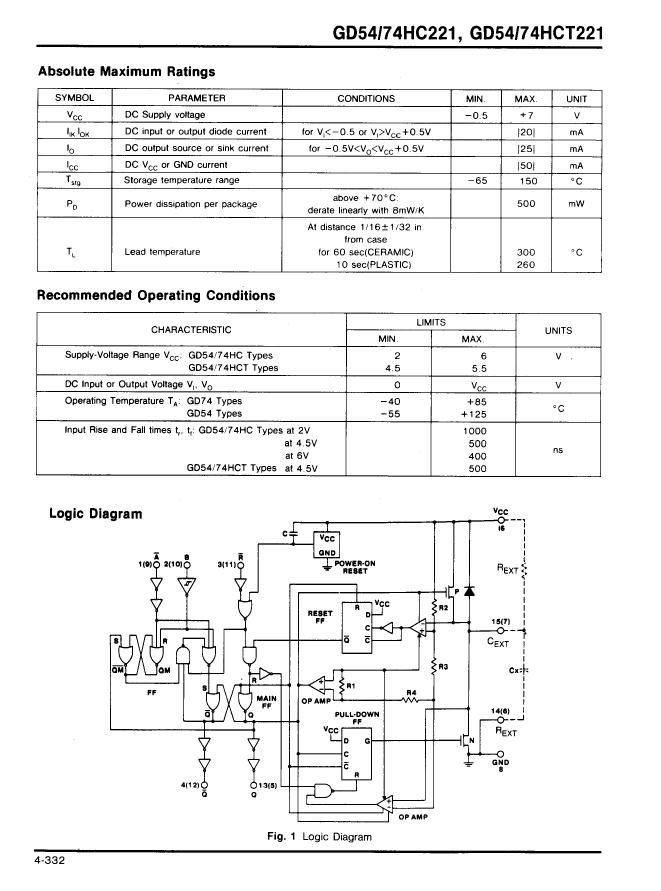

Preview

Download Datasheet

View All

GD74HCT221 Related Products

	GD74HCT221	GD74HCT221J	GD74HCT221D	GD54HC221J	GD74HC221D	GD74HC221J	GD74HC221	GD54HCT221J
Description	Monostable Multivibrator, CMOS, PDIP16,	Monostable Multivibrator, CMOS, CDIP16,	Monostable Multivibrator, CMOS, PDSO16,	Monostable Multivibrator, CMOS, CDIP16,	Monostable Multivibrator, CMOS, PDSO16,	Monostable Multivibrator, CMOS, CDIP16,	Monostable Multivibrator, CMOS, PDIP16,	Monostable Multivibrator, CMOS, CDIP16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	SOP, SOP16,.25	DIP, DIP16,.3	SOP, SOP16,.25	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-PDIP-T16	R-XDIP-T16	R-PDSO-G16	R-XDIP-T16	R-PDSO-G16	R-XDIP-T16	R-PDIP-T16	R-XDIP-T16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR
Number of terminals	16	16	16	16	16	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C	125 °C	85 °C	85 °C	85 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-55 °C	-40 °C	-40 °C	-40 °C	-55 °C
Package body material	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP	SOP	DIP	SOP	DIP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	SOP16,.25	DIP16,.3	SOP16,.25	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	2/6 V	2/6 V	2/6 V	2/6 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	YES	NO	YES	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	-	-	-
