GD54LS240 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> GD54LS240

GD54LS240: DescriptionBus Driver, LS Series, 2-Func, 4-Bit, Inverted Output, TTL, PDIP20,; Categorylogic logic; File Size64KB，3 Pages; ManufacturerGoldstar Electron Co., Ltd.

Download Datasheet Parametric Compare View All

GD54LS240 Overview

Bus Driver, LS Series, 2-Func, 4-Bit, Inverted Output, TTL, PDIP20,

GD54LS240 Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-PDIP-T20
Load capacitance (CL)	45 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	44 mA
propagation delay (tpd)	18 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

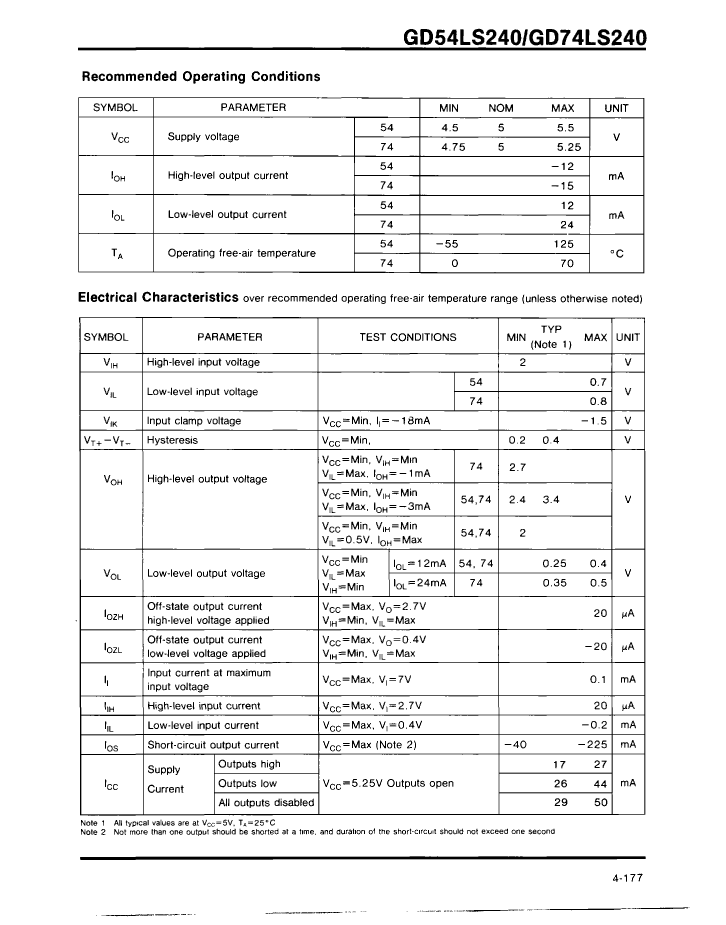

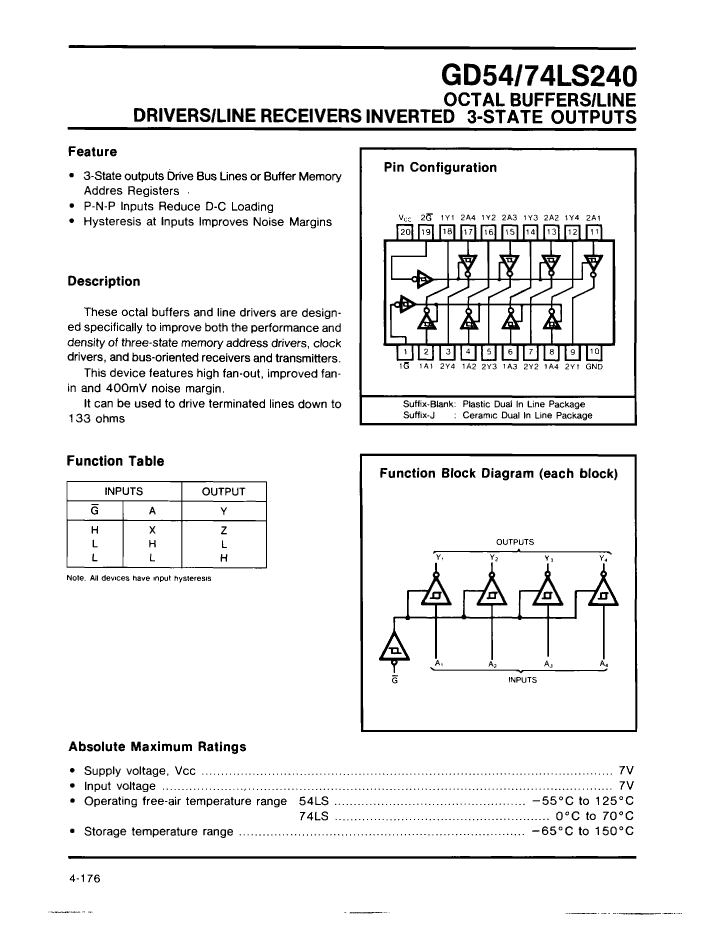

Preview

Download Datasheet

View All

GD54LS240 Related Products

	GD54LS240	GD54LS240J	GD74LS240J	GD74LS240
Description	Bus Driver, LS Series, 2-Func, 4-Bit, Inverted Output, TTL, PDIP20,	Bus Driver, LS Series, 2-Func, 4-Bit, Inverted Output, TTL, CDIP20,	Bus Driver, LS Series, 2-Func, 4-Bit, Inverted Output, TTL, CDIP20,	Bus Driver, LS Series, 2-Func, 4-Bit, Inverted Output, TTL, PDIP20,
Reach Compliance Code	unknown	unknown	unknown	unknown
series	LS	LS	LS	LS
JESD-30 code	R-PDIP-T20	R-CDIP-T20	R-CDIP-T20	R-PDIP-T20
Load capacitance (CL)	45 pF	45 pF	45 pF	45 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	4	4	4	4
Number of functions	2	2	2	2
Number of ports	2	2	2	2
Number of terminals	20	20	20	20
Maximum operating temperature	125 °C	125 °C	70 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Maximum supply current (ICC)	44 mA	44 mA	44 mA	44 mA
propagation delay (tpd)	18 ns	18 ns	18 ns	18 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1
