GD74HCT03D

Description

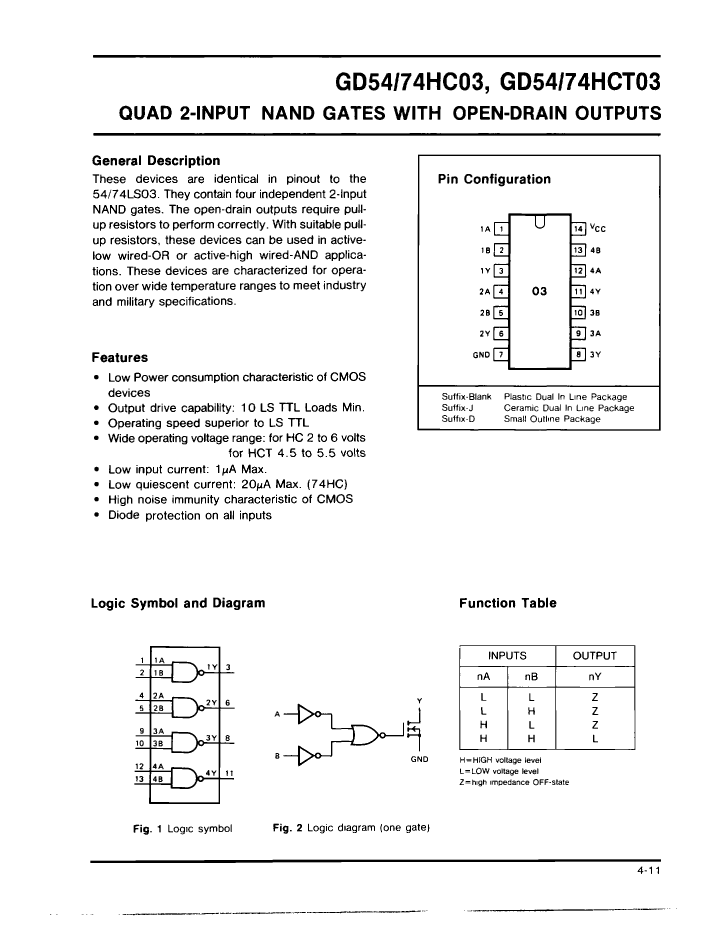

NAND Gate, HCT Series, 4-Func, 2-Input, CMOS, PDSO14,
Categorylogic    logic
File Size89KB,4 Pages
ManufacturerGoldstar Electron Co., Ltd.
Download Datasheet Parametric View All

GD74HCT03D Overview

NAND Gate, HCT Series, 4-Func, 2-Input, CMOS, PDSO14,

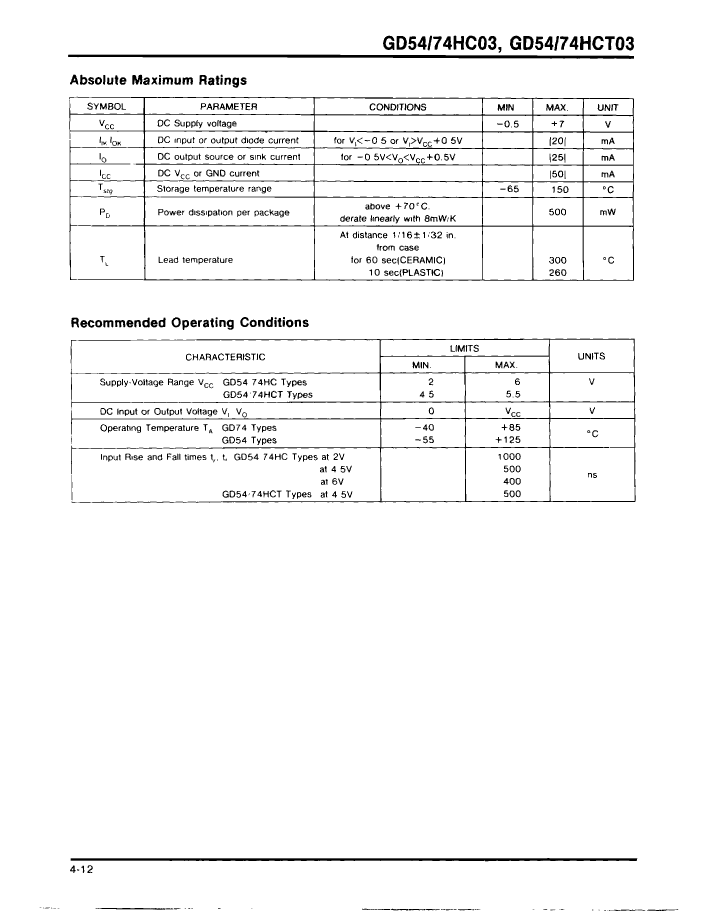

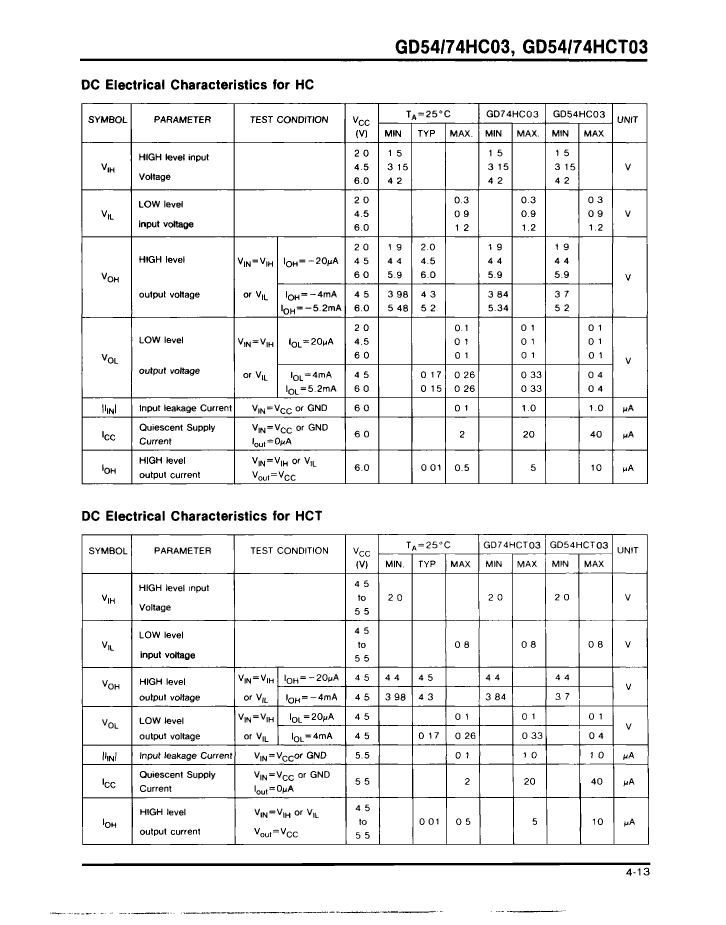

GD74HCT03D Parametric

Parameter NameAttribute value
package instruction,
Reach Compliance Codeunknown
seriesHCT
JESD-30 codeR-PDSO-G14
Load capacitance (CL)50 pF
Logic integrated circuit typeNAND GATE
Number of functions4
Number of entries2
Number of terminals14
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output characteristicsOPEN-DRAIN
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE

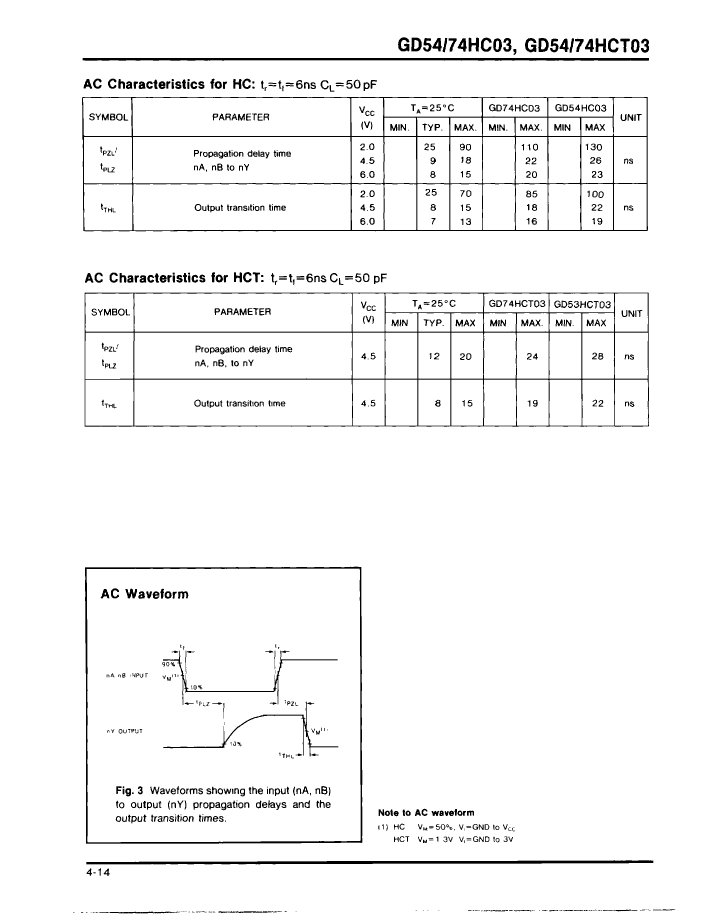

propagation delay (tpd)24 ns
Certification statusNot Qualified
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal formGULL WING
Terminal locationDUAL
Base Number Matches1
