GD54HC14J datasheet, PDF - EEWORLD Datasheet

GD54HC14J: DescriptionInverter, HC/UH Series, 6-Func, 1-Input, CMOS, CDIP14,; Categorylogic logic; File Size114KB，5 Pages; ManufacturerGoldstar Electron Co., Ltd.

Download Datasheet Parametric View All

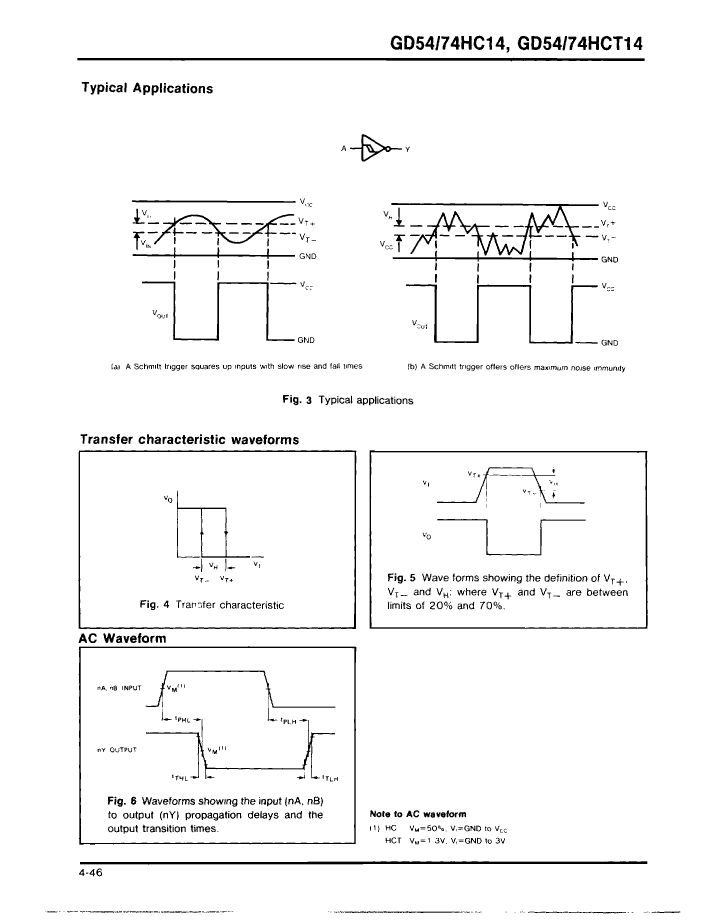

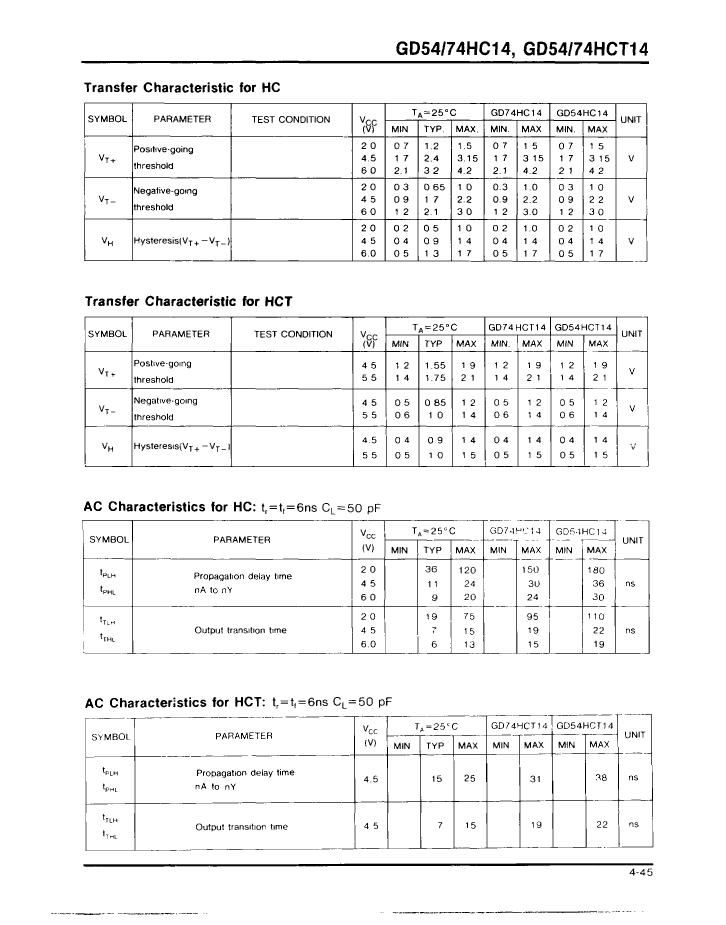

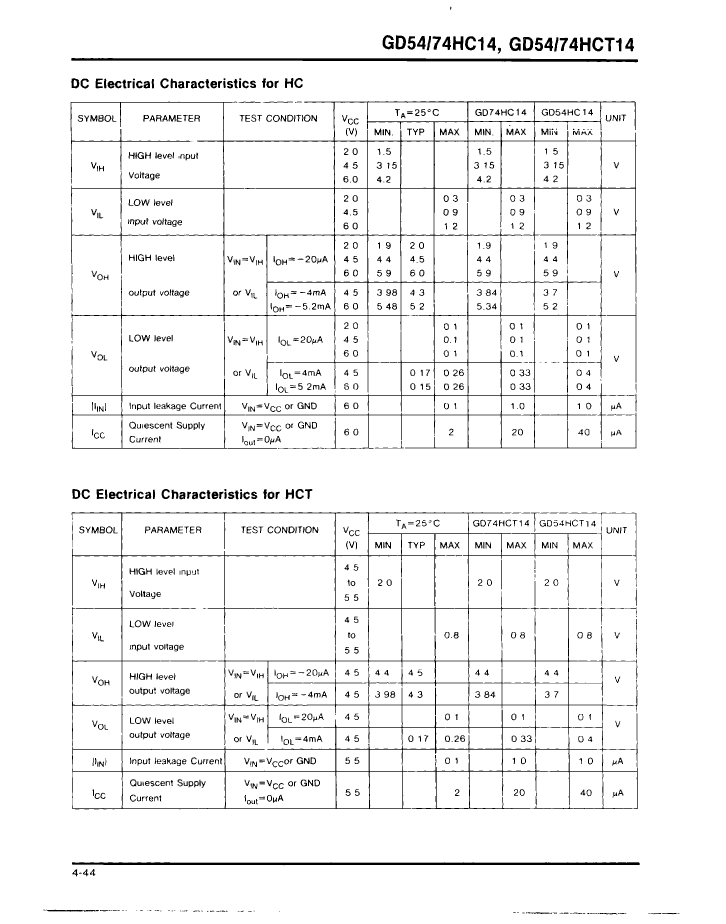

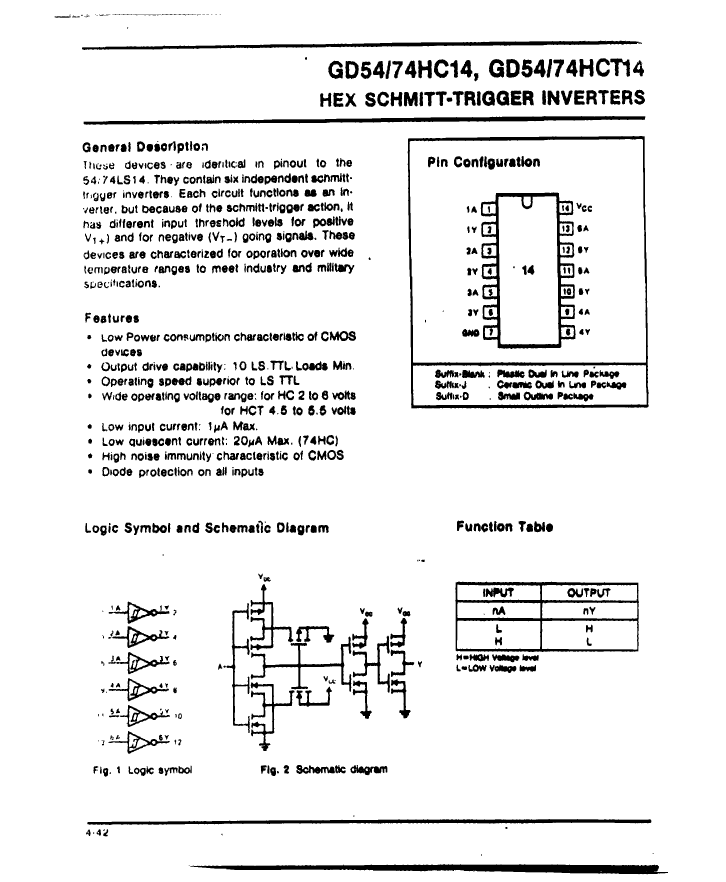

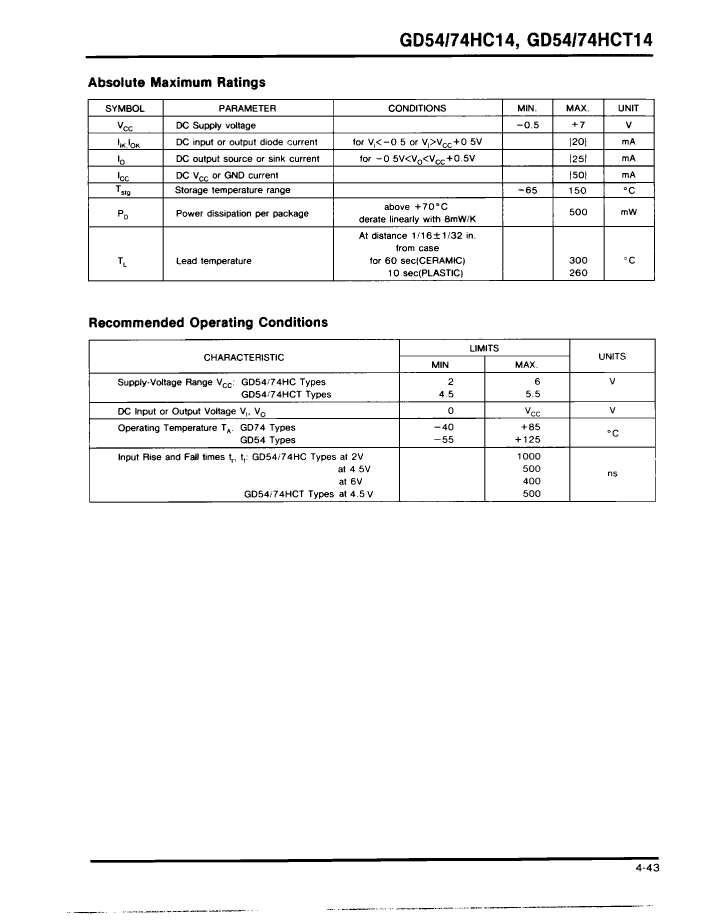

GD54HC14J Overview

Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, CDIP14,

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
series	HC/UH
JESD-30 code	R-CDIP-T14
Load capacitance (CL)	50 pF
Logic integrated circuit type	INVERTER
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	36 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1
