BK4F100V1A datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BK4F100V1A

Preview

BK4F100V1A: DescriptionBoard Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.024 inch Pitch, Surface Mount Terminal, Natural Insulator, Plug; CategoryThe connector The connector; File Size93KB，1 Pages; ManufacturerJapan Aviation Electronics Industry Limited

Download Datasheet Parametric Compare View All

BK4F100V1A Overview

Board Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.024 inch Pitch, Surface Mount Terminal, Natural Insulator, Plug

BK4F100V1A Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	NONE
Board mount options	PEG
body width	0.244 inch
subject depth	0.128 inch
body length	1.445 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	50 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	200VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	NATURAL
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	BK4
Plug contact pitch	0.024 inch
Match contact row spacing	0.094 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.1054 mm
Plating thickness	8u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.6 mm
Termination type	SURFACE MOUNT
Total number of contacts	100
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

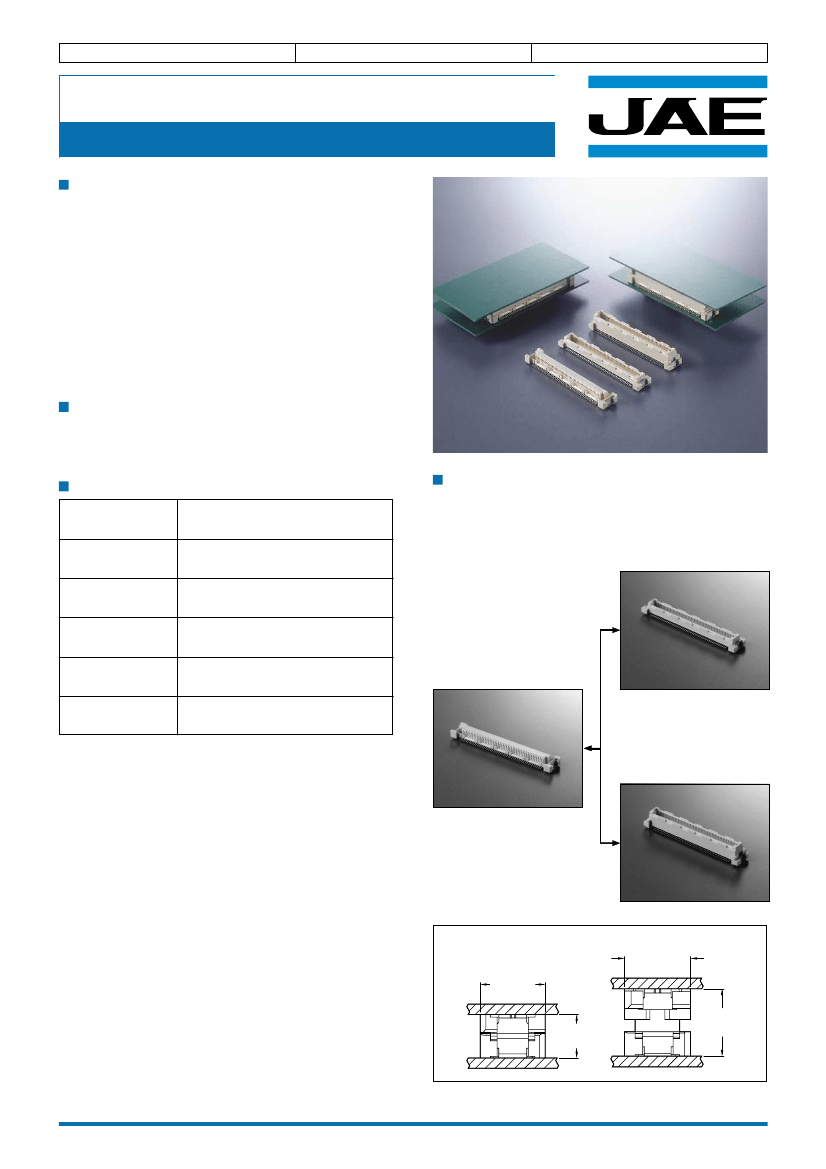

Connectors

Printed circuit boards

Board to board

0.6mm Contact Spacing, Surface Mount Type

P.C.Board-to-P.C.Board Application (Parallel) • per MiniPCI Type I / II Standard

BK4 Series Connectors

FEATURES

connector per

•

Board-to-board applicationSpecial InterestMiniPCI Type I/II

standard of PCI SIG (PCI

Group), for

installing modem card and LAN card in notebook personal

computers.

0.6 mm spacing high density packaging, optimum for

compact equipment.

Low profile. 4 mm and 6 mm between parallel boards.

Reliable twist-resistant ribbon type contacts (plain contact)

will not fail when mating.

Mating guide for easy insertion.

Metallic holddowns increase retention of connector on

board.

Enables automatic packaging.

•

APPLICATIONS

Notebook personal computers, sub-notebook personal computers,

PDA and other data communications equipment

GENERAL SPECIFICATIONS

No. of Contacts

TYPES & COMBINATIONS

Receptacle

Plug

100

0.5 Amps

0.2k VACr.m.s.(for one minute)

500 megohms min.

50 milliohms max.(after test)

-40°C to +85°C

Straight type

P/N:BK4F100V1A

Current Rating

•

Straight type distance:4 mm

Board-to-board

P/N:BK4M100V1A

D.W.Voltage

Insulation

Resistance

Contact

Resistance

Operating

Temperature

•

Straight type distance:6 mm

Board-to-board

P/N:BK4M100V1B

mm(inch)

6.2(.244)

4

(.157)

6

(.236)

* The products and specifications contained in this catalog are subject to change

without notice. When considering use of or placing an order for products

included in this catalog, please check first with our sales department.

BK4F100V1A Related Products

	BK4F100V1A	BK4M100V1A	BK4M100V1B
Description	Board Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.024 inch Pitch, Surface Mount Terminal, Natural Insulator, Plug	Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.024 inch Pitch, Surface Mount Terminal, Natural Insulator, Receptacle	Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.024 inch Pitch, Surface Mount Terminal, Natural Insulator, Receptacle
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	NONE	WITH LOW PROFILE	WITH LOW PROFILE
Board mount options	PEG	PEG	PEG
body width	0.244 inch	0.244 inch	0.244 inch
subject depth	0.128 inch	0.136 inch	0.215 inch
body length	1.445 inch	1.445 inch	1.445 inch
Body/casing type	PLUG	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL	TIN/LEAD	TIN/LEAD
Contact point gender	FEMALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	50 mΩ	50 mΩ	50 mΩ
DIN compliance	NO	NO	NO
Dielectric withstand voltage	200VAC V	200VAC V	200VAC V
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	NATURAL	NATURAL	NATURAL
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
MIL compliance	NO	NO	NO
Manufacturer's serial number	BK4	BK4	BK4
Plug contact pitch	0.024 inch	0.024 inch	0.024 inch
Mixed contacts	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	2	2	2
Number of rows loaded	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	5.1054 mm	5.1054 mm	5.1054 mm
Plating thickness	8u inch	8u inch	8u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.6 mm	0.6 mm	0.6 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	100	100	100
UL Flammability Code	94V-0	94V-0	94V-0
Base Number Matches	1	1	1
