ATT-461M-28-HEX-02: DescriptionRF/Microwave Attenuator, 0 MHz - 4000 MHz RF/MICROWAVE FIXED ATTENUATOR; CategoryWireless rf/communication Radio frequency and microwave; File Size297KB，6 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric View All

ATT-461M-28-HEX-02 Overview

RF/Microwave Attenuator, 0 MHz - 4000 MHz RF/MICROWAVE FIXED ATTENUATOR

ATT-461M-28-HEX-02 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	SMA-M, I/P POWER-MAX(PEAK)=200W
Nominal attenuation	28 dB
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
Maximum operating frequency	4000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.2
Base Number Matches	1

Preview

Download Datasheet

View All

Wireless - Cellular Products

Broadband Wireless Frequency Coverage

•

DC-2, DC-8, DC-12.4, and DC-26.5 GHz units available

Rugged Stainless Steel Construction

Any Male/Female combination available

Low cost high value performance

Attenuators

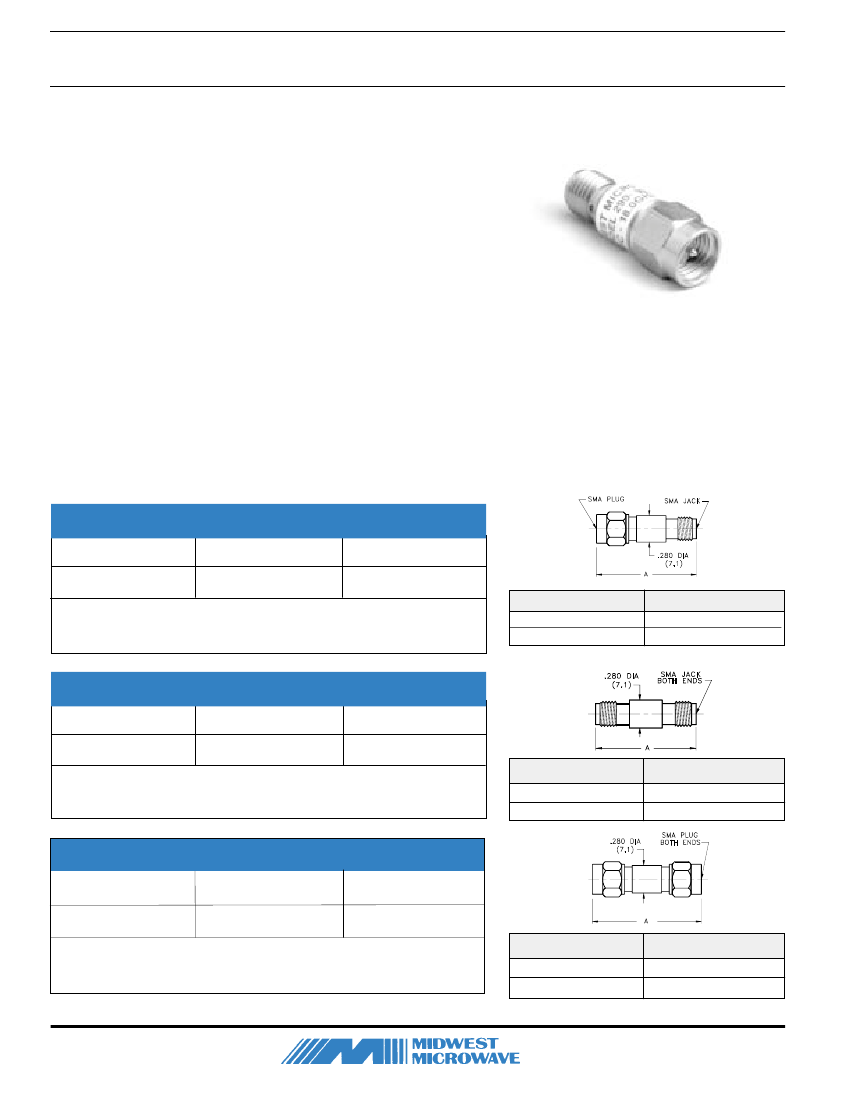

Midwest Microwave's SMA subminiature series of fixed coaxial attenuators

(MINIPAD

) provide temperature stable, ruggedly built, precision perfor-

mance in a compact light weight package size. Attenuation values up

through 30 dB in 1 dB increments are available with any of the units

described and with any combination of female or male SMA connectors.

SPECIFICATIONS

Frequency:

DC - 2.0, DC - 4.0, DC - 12.4 GHz

DC - 18.0, and DC - 26.5 GHz

Attenuation Accuracy:

1-6 dB ± 0.5dB

7-20 dB ± 0.7 dB

21-30 dB ± 1.5 dB

VSWR:

1.15 max @ DC - 2.0 GHz, 1.20 max @ 2 - 4.0 GHz, 1.25 max @ 4.0 - 12.4 GHz

1.35 max @ 12.4 - 18.0 GHz, and 1.5 max @ 18.0 - 26.5 GHz

Power:

2 Watts Average @ +25

C derated linearly to .5 watts @ +125

Peak Power:

200 Watts

Operating Temperature Range:

-65 to +125C

Finish:

Passivated Stainless Steel

DC - 2.0 GHz

Male/Female

ATT-0460-XX-SMA-02

460 Series

Female/Female

ATT-460F-XX-SMA-02

Model Numbers

Male/Male

ATT-460M-XX-SMA-02

Attenuation Value

Length A

0.86

1.02

1-12 dB

13-30 dB

XX = Attenuation Value: Select 01-30*dB in 1dB increments only

Wireless System Performance

DC - 4.0 GHz

Male/Female

ATT-0461-XX-SMA-02

461 Series

Female/Female

ATT-461F-XX-SMA-02

Model Numbers

Male/Male

ATT-461M-XX-SMA-02

Attenuation Value

1-12 dB

Length A

0.90

1.03

XX = Attenuation Value: Select 01-30*dB in 1dB increments only

Wireless System Performance

13-30 dB

DC - 12.4 GHz

Male/Female

ATT-0463-XX-SMA-02

463 Series

Female/Female

ATT-463F-XX-SMA-02

Model Numbers

Male/Male

ATT-463M-XX-SMA-02

Attenuation Value

1-12 dB

13-30 dB

Length A

0.98

1.12

XX = Attenuation Value: Select 01-30*dB in 1dB increments only

Wireless System Performance

Note: * Higher dB levels are available on special request.

DC - 8 GHz units available as ATT-0462-XX-SMA-02 etc.
