Electrical / Environmental
Buckle Style Core Common-Mode Chokes
•
•
•
•
Insulation Resistance, Minimum
Voltage Rating
Insulation System
Temperature Rise, Maximum
100 MW
250VAC
Class B, 130°C
40°C
HM28
S
RoH
liant
mp
Co
Schematic
Specifications @ 25°C / Packaging
Part
Number
Current
Rating
Amps AC
Inductance
@ 1.0 kHz
DCR
mH Min.
W
Max.
Carton
Box
Qty
Figure (Units)
Part
Number
Current
Rating
Amps AC
Inductance
@ 1.0 kHz
DCR
mH Min.
W
Max.
Carton
Box
Qty
Figure (Units)
HM28-20001LF
HM28-20002LF
HM28-20003LF
HM28-20004LF
HM28-20005LF
HM28-24006LF
HM28-24007LF
HM28-24008LF
HM28-24009LF
HM28-24010LF
HM28-24011LF
HM28-24012LF
HM28-24013LF
HM28-24014LF
HM28-24015LF
HM28-24016LF
HM28-24017LF
HM28-25025LF
HM28-25026LF
HM28-25027LF
HM28-25028LF
HM28-25029LF
HM28-25030LF
HM28-25031LF
HM28-25032LF
0.5
0.6
0.7
0.9
1.0
0.5
0.6
0.7
0.9
1.0
0.5
0.6
0.7
0.9
1.0
1.5
2.0
0.5
0.6
0.7
0.9
1.0
1.5
2.0
2.5
9
4.5
2.5
1.1
0.45
9
4.5
2.5
1.1
0.45
36
24
9.2
7.8
5.2
3.6
3.2
120
92
66
36
25
15.5
10
8
1.40
0.75
0.40
0.25
0.13
1.40
0.75
0.40
0.25
0.13
2.70
1.60
0.75
0.50
0.34
0.25
0.20
2.60
2.00
1.50
0.80
0.60
0.32
0.25
0.19
1
1
1
1
1
2
2
2
2
2
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
400
400
400
400
400
400
400
400
400
400
300
300
300
300
300
300
300
330
330
330
330
330
330
330
330
HM28-25033LF
HM28-32018LF
HM28-32019LF
HM28-32020LF
HM28-32021LF
HM28-32022LF
HM28-32023LF
HM28-32024LF
HM28-35034LF
HM28-35035LF
HM28-35036LF
HM28-35037LF
HM28-35038LF
HM28-35039LF
HM28-35040LF
HM28-35041LF
HM28-35042LF
HM28-42051LF
HM28-42052LF
HM28-42053LF
HM28-42054LF
HM28-42055LF
HM28-42056LF
HM28-42057LF
HM28-42058LF
3.0
0.5
0.6
0.7
0.9
1.0
1.5
2.0
0.5
0.6
0.7
0.9
1.0
1.5
2.0
2.5
3.0
1.5
1.8
2.0
2.5
2.7
3.0
3.5
4.0
5
36
24
9.2
7.8
5.2
3.6
3.2
120
92
66
36
25
15.5
10
8
5
33
22
18
12
10
8.1
6
4.7
0.10
2.70
1.60
0.75
0.50
0.34
0.25
0.20
2.60
2.00
1.50
0.80
0.60
0.32
0.25
0.19
0.10
0.50
0.40
0.30
0.20
0.15
0.12
0.10
0.08
4
5
5
5
5
5
5
5
6
6
6
6
6
6
6
6
6
7
7
7
7
7
7
7
7
330
400
400
400
400
400
400
400
231
231
231
231
231
231
231
231
231
144
144
144
144
144
144
144
144
Ordering Information
HM28 - 20
Model Series
Case Size / Body Style
004
LF
Lead-Free
Sequence number
22
MAGNETIC COMPONENTS SELECTOR GUIDE 2009/10 EDITION
We reserve the right to change specifications without prior notice.
www.bitechnologies.com

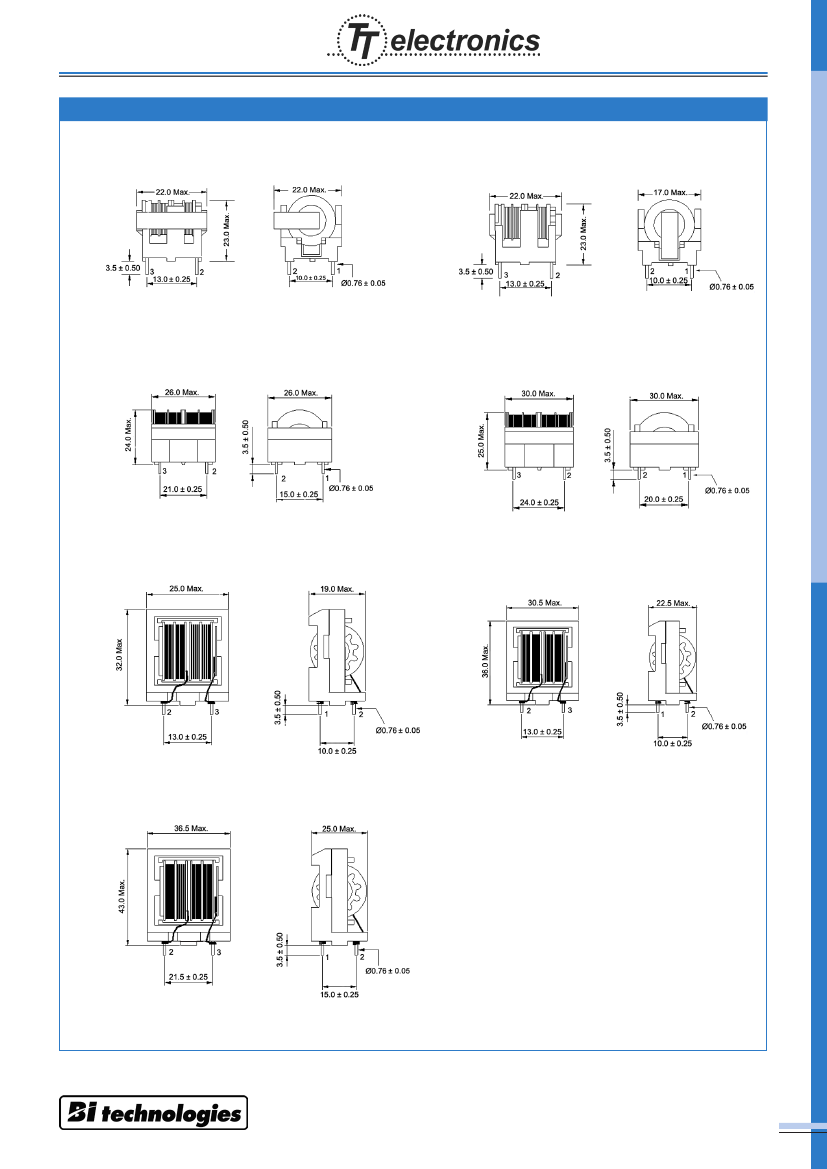

Outline Dimensions (mm)
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
www.bitechnologies.com
2009/10 EDITION MAGNETIC COMPONENTS SELECTOR GUIDE
23
We reserve the right to change specifications without prior notice.
