B84115-E-B60 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> B84115-E-B60

B84115-E-B60: Description250V, 50/60Hz, SINGLE PHASE EMI FILTER; CategoryAnalog mixed-signal IC filter; File Size151KB，7 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric Compare View All

B84115-E-B60 Overview

250V, 50/60Hz, SINGLE PHASE EMI FILTER

B84115-E-B60 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	TAB CONNECTORS ON FACE ENDS, MOUNTING TABS ON FACE ENDS
Certification	UL; CSA; VDE
filter type	SINGLE PHASE EMI FILTER
high	44.5 mm
high potential	2700 V
Maximum leakage current	3.5 mA
length	133 mm
Manufacturer's serial number	B84115E
Installation type	PANEL MOUNT
working frequency	50/60Hz Hz
physical size	L133XB50.8XH44.5 (mm)
Rated current	6 A
Rated voltage	250 V
width	50.8 mm
Base Number Matches	1

Preview

Download Datasheet

View All

2-Line Filters

SIFI-E Series

SIFI-E for high insertion loss

Rated voltage 250 V~, 50/60 Hz

Rated current 3 A to 10 A

Construction

Two-line filter

Metal case

Polyurethane potting (UL 94 V-0)

B84115

Features

Compact design

Very high insertion loss, even

in the range below 100 kHz

Low leakage current

All relevant approvals

Cost-optimized construction

Also for assembly on top-hat rails

Applications

Switch-mode power supplies in

– industrial electronics

– telecommunications

– data systems

– medical engineering

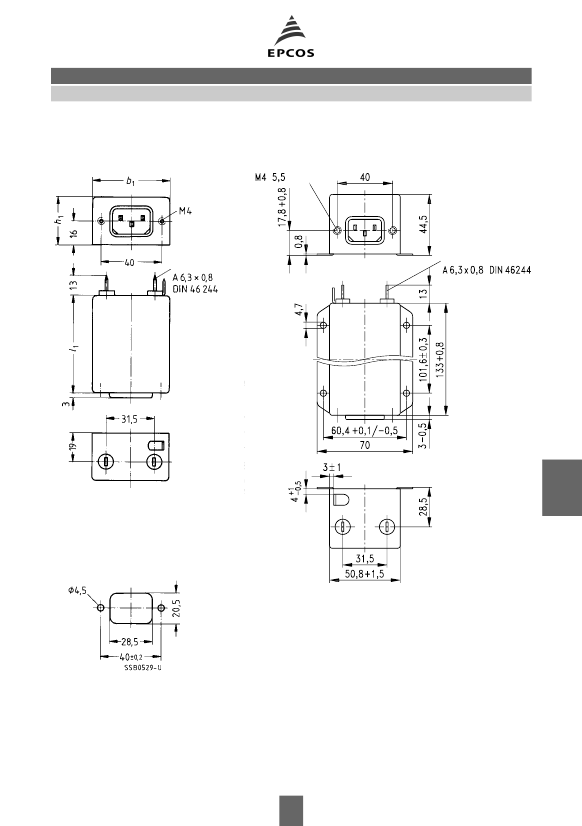

Case styles and terminal styles

Case style A

Case style B

Case style K

Tab connectors on face ends, lateral mounting tabs.

Particularly suitable for mounting on a shielding wall.

Tab connectors on face ends, mounting tabs on face ends.

IEC connector as per IEC 60320 C 14 on line side,

tab connectors on load side, mounting holes with metric thread.

Marking

Marking on component:

Manufacturer’s logo, ordering code,

rated voltage, rated current,

date code

Minimum marking on packaging:

Manufacturer’s logo, ordering code

167

03/01

B84115-E-B60 Related Products

	B84115-E-B60	B84115-E-B110	B84115-E-B30	B84115-E-A60	B84115-E-A30	B84115-E-A110	B84115-E-K30	B84115-E-K60
Description	250V, 50/60Hz, SINGLE PHASE EMI FILTER	250V, 50/60Hz, SINGLE PHASE EMI FILTER	250V, 50/60Hz, SINGLE PHASE EMI FILTER	250V, 50/60Hz, SINGLE PHASE EMI FILTER	250V, 50/60Hz, SINGLE PHASE EMI FILTER	250V, 50/60Hz, SINGLE PHASE EMI FILTER	250V, 50/60Hz, SINGLE PHASE EMI FILTER	250V, 50/60Hz, SINGLE PHASE EMI FILTER
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Certification	UL; CSA; VDE	UL; CSA; VDE	UL; CSA; VDE	UL; CSA; VDE	UL; CSA; VDE	UL; CSA; VDE	UL; CSA; VDE	UL; CSA; VDE
filter type	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER
high	44.5 mm	44.5 mm	38.1 mm	44.5 mm	38.1 mm	44.5 mm	38 mm	44.5 mm
high potential	2700 V	2700 V	2700 V	2700 V	2700 V	2700 V	2700 V	2700 V
Maximum leakage current	3.5 mA	3.5 mA	0.5 mA	3.5 mA	0.5 mA	3.5 mA	0.5 mA	3.5 mA
length	133 mm	133 mm	63.5 mm	133 mm	63.5 mm	133 mm	79.5 mm	133 mm
Installation type	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
working frequency	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz
physical size	L133XB50.8XH44.5 (mm)	L133XB50.8XH44.5 (mm)	L63.5XB50.8XH38.1 (mm)	L133XB50.8XH44.5 (mm)	L63.5XB50.8XH38.1 (mm)	L133XB50.8XH44.5 (mm)	L79.5XB50.8XH38 (mm)	L133XB70xH44.5 (mm)
Rated current	6 A	10 A	3 A	6 A	3 A	10 A	3 A	6 A
Rated voltage	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
Base Number Matches	1	1	1	1	1	1	1	1
Other features	TAB CONNECTORS ON FACE ENDS, MOUNTING TABS ON FACE ENDS	TAB CONNECTORS ON FACE ENDS, MOUNTING TABS ON FACE ENDS	TAB CONNECTORS ON FACE ENDS, MOUNTING TABS ON FACE ENDS	TAB CONNECTORS ON FACE ENDS, LATERAL MOUNTING TABS	TAB CONNECTORS ON FACE ENDS, LATERAL MOUNTING TABS	TAB CONNECTORS ON FACE ENDS, LATERAL MOUNTING TABS	-	-
Manufacturer's serial number	B84115E	-	B84115E	-	B84115E	B84115E	SIFI-E	SIFI-E
width	50.8 mm	50.8 mm	50.8 mm	50.8 mm	50.8 mm	50.8 mm	-	-
