BSM100GAL120DN2

Description
Insulated Gate Bipolar Transistor, 100A I(C), 1200V V(BR)CES, N-Channel, MODULE-5
CategoryDiscrete semiconductor    The transistor
File Size97KB,6 Pages
ManufacturerEUPEC [eupec GmbH]
Download Datasheet Parametric View All

BSM100GAL120DN2 Overview

Insulated Gate Bipolar Transistor, 100A I(C), 1200V V(BR)CES, N-Channel, MODULE-5

BSM100GAL120DN2 Parametric

Parameter NameAttribute value
package instructionMODULE-5
Reach Compliance Codeunknown
Shell connectionISOLATED
Maximum collector current (IC)100 A
Collector-emitter maximum voltage1200 V
ConfigurationSINGLE WITH BUILT-IN DIODE
Gate-emitter maximum voltage20 V
JESD-30 codeR-XUFM-X7
Number of components1
Number of terminals7
Maximum operating temperature150 °C
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Polarity/channel typeN-CHANNEL
Maximum power dissipation(Abs)800 W
Certification statusNot Qualified
surface mountNO
Terminal formUNSPECIFIED
Terminal locationUPPER
transistor applicationsPOWER CONTROL
Transistor component materialsSILICON
Nominal off time (toff)470 ns
Nominal on time (ton)210 ns
VCEsat-Max3.2 V
Base Number Matches1

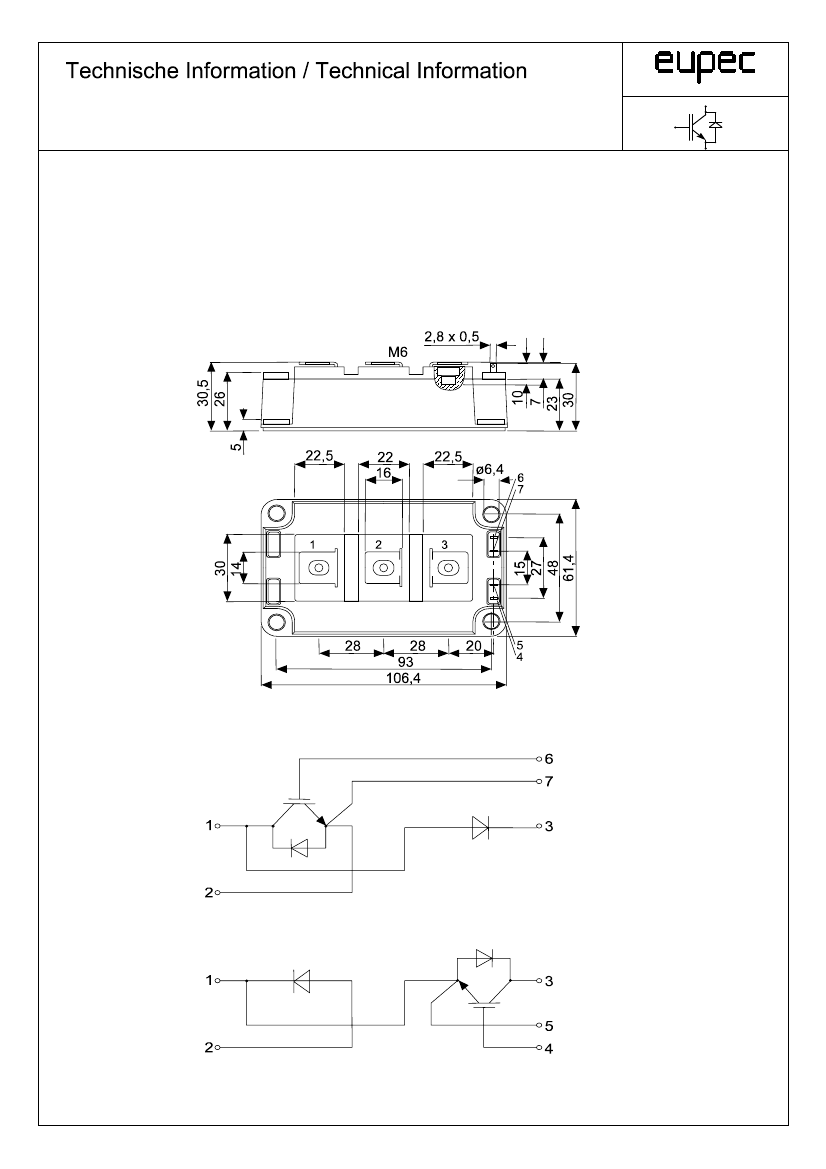

BSM 100 GAL 120 DN2
IGBT Power Module
• Single switch with chopper diode at collector
• Including fast free-wheeling diodes
• Package with insulated metal base plate
Type
BSM 100 GAL 120 DN2
Maximum Ratings
Parameter
Collector-emitter voltage
Collector-gate voltage
R
GE
= 20 kΩ
Gate-emitter voltage
DC collector current
T
C
= 25 °C
T
C
= 80 °C
Pulsed collector current,
t
p
= 1 ms
T
C
= 25 °C
T
C
= 80 °C
Power dissipation per IGBT
T
C
= 25 °C
Chip temperature
Storage temperature
Thermal resistance, chip case
Diode thermal resistance, chip case
Diode thermal resistance, chip-case,chopper
Insulation test voltage,
t
= 1min.
Creepage distance
Clearance
DIN humidity category, DIN 40 040
IEC climatic category, DIN IEC 68-1
T
j
T
stg
R
thJC
R
thJCD
R
THJCDC
V
is
-
-
-
-
P
tot
800
+ 150
-40 ... + 125
0.16
0.3
0.25
2500
20
11
F
40 / 125 / 56
sec
Vac
mm
K/W
°C
I
Cpuls
300
200
W
V
GE
I
C
150
100
Symbol
V
CE
V
CGR
1200
± 20
A
Values
1200
Unit
V
V
CE
I
C
Package
Ordering Code
1200V 150A
HALF BRIDGE GAL 2 C67076-A2012-A70
1
Nov-24-1997
