BCX71H datasheet, PDF - EEWORLD Datasheet

BCX71H: DescriptionTransistor,; CategoryDiscrete semiconductor The transistor; File Size128KB，2 Pages; ManufacturerAllegro; Websitehttp://www.allegromicro.com/

Download Datasheet Parametric Compare View All

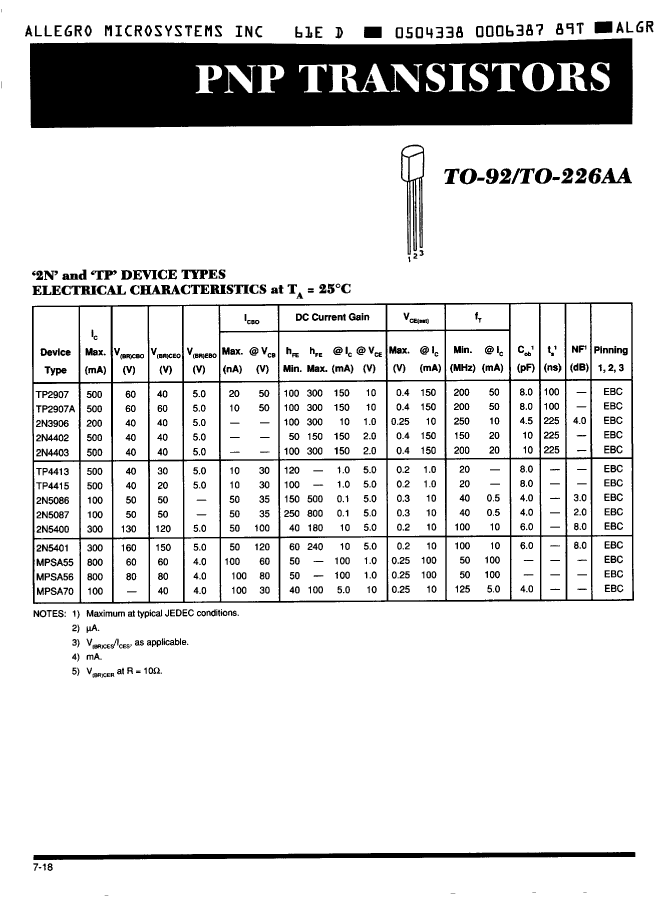

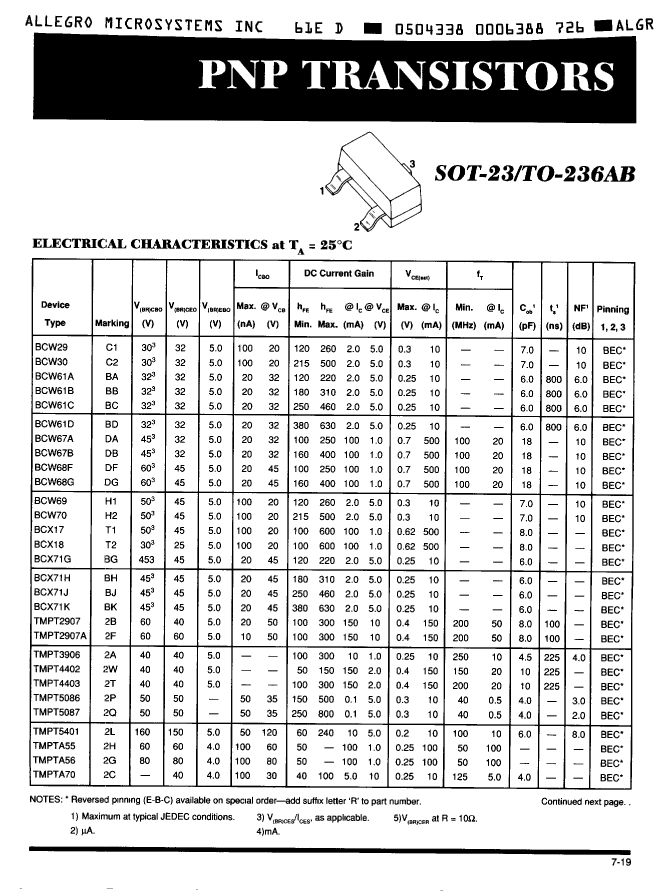

BCX71H Overview

Transistor,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	compliant
Maximum collector current (IC)	0.2 A
Configuration	Single
Minimum DC current gain (hFE)	180
JESD-609 code	e0
Maximum operating temperature	150 °C
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.25 W
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

	BCX71H	BCX71HR	BCX17R	BCX71GR	BCX71JR	BCX18	BCX18R	BCX71G
Description	Transistor,	Transistor	Transistor	Transistor	Transistor	Transistor,	Transistor	Transistor,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	unknown	unknown	unknown	unknown	compliant	unknown	unknow
Maximum collector current (IC)	0.2 A	0.1 A	0.5 A	0.1 A	0.1 A	0.5 A	0.5 A	0.2 A
Configuration	Single	Single	Single	Single	Single	Single	Single	Single
Minimum DC current gain (hFE)	180	180	100	120	250	100	100	120
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Maximum operating temperature	150 °C	150 °C	175 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP	PNP	PNP
Maximum power dissipation(Abs)	0.25 W	0.3 W	0.425 W	0.225 W	0.225 W	0.3 W	0.425 W	0.25 W
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	-	180 MHz	100 MHz	180 MHz	180 MHz	-	100 MHz	100 MHz
Maker	-	-	Allegro	Allegro	Allegro	Allegro	Allegro	Allegro
