54200409 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 54200409

54200409: DescriptionCombination Line Connector, 4 Contact(s), Female,; CategoryThe connector The connector; File Size76KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

54200409 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	54200409	-	-	View	Buy Now

54200409 Overview

Combination Line Connector, 4 Contact(s), Female,

54200409 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Options	GENERAL PURPOSE
Shell material	POLYAMIDE
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

ECU Connectors and Packagings

I/O Connector Systems

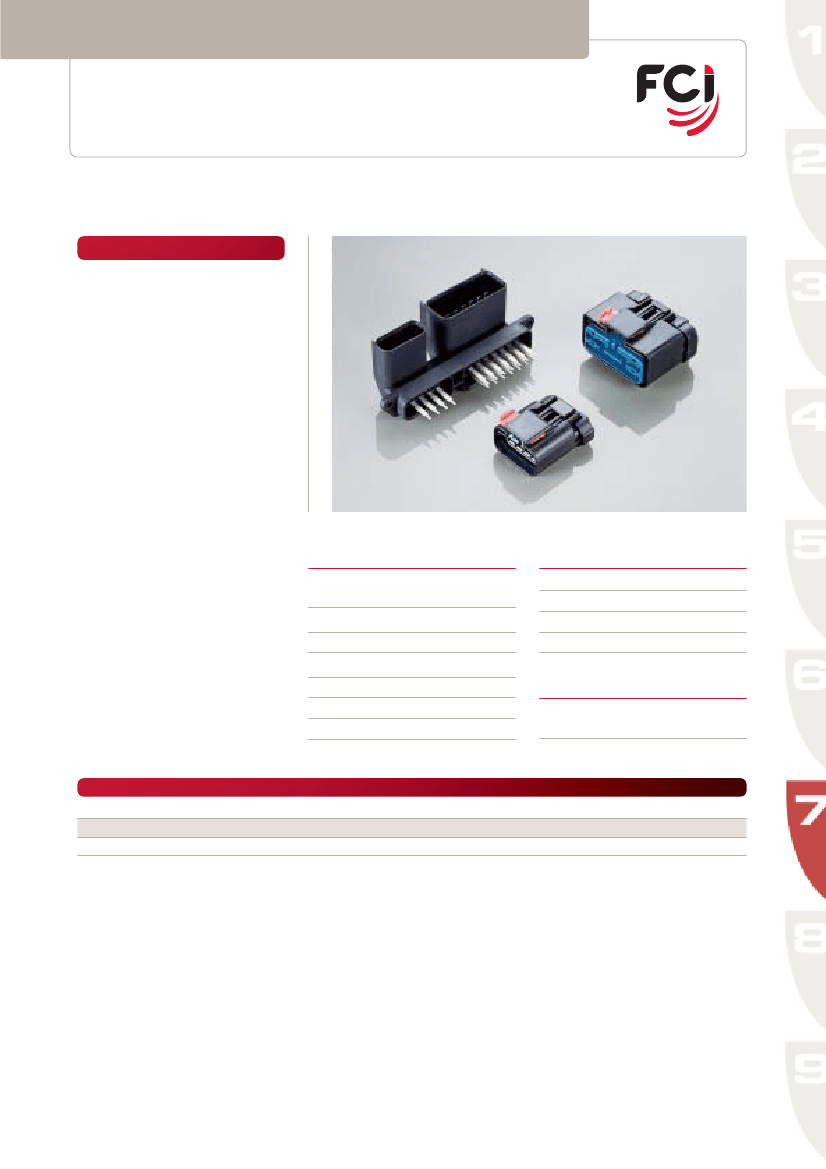

Apex

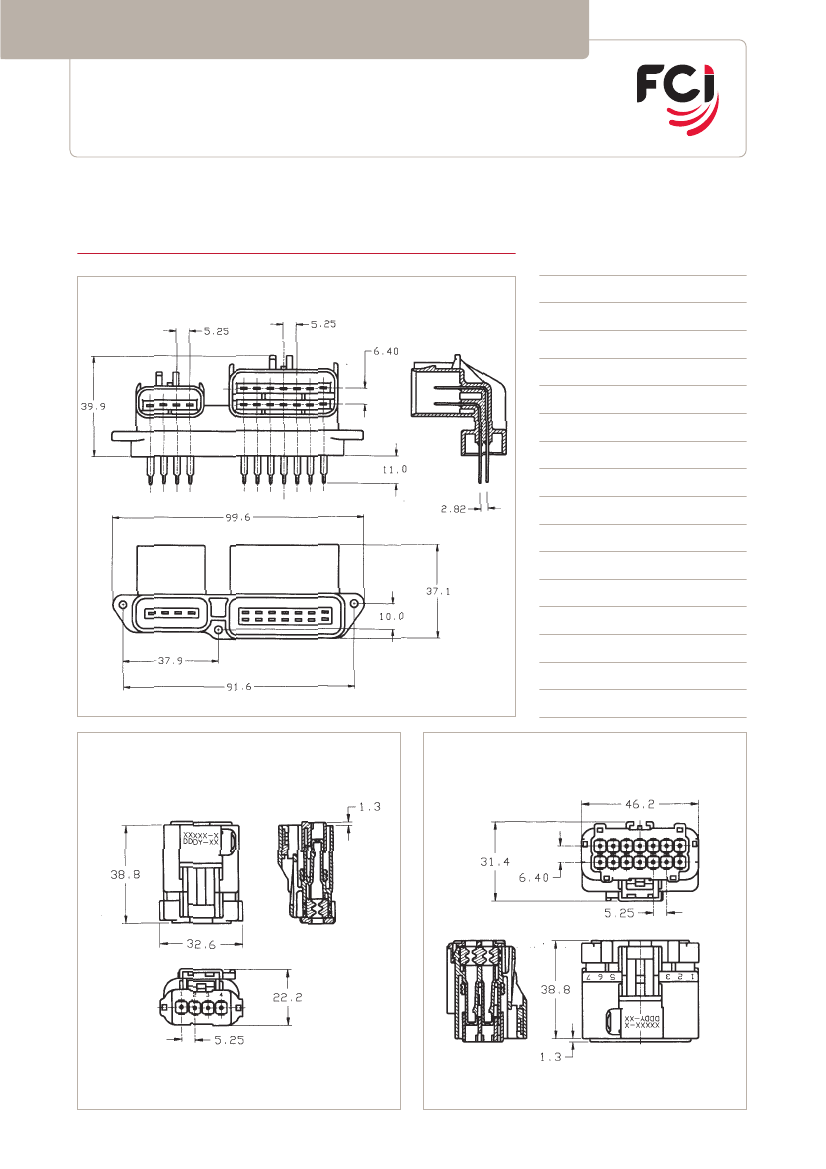

18 way sealed connector system

Features

18 way pin header

•

Moulded-in pin headers

•

Double row 5.25 x 6.40 mm pitch

•

Right angle version for PCB

4 & 14 way female housing

•

Single and double row housing with

circumferential interface seal

•

Rear sealing ensured with

grommet

•

Terminal position assurance (T.P.A.)

•

Connector position assurance

(C.P.A.)

•

Mechanical polarization

Performance characteristics

•

Temperature range:

from -40°C to +120°C

Pin header

Construction

•

Housing material:

•

Interface seal:

•

Rear grommet seal:

Silicone

CuZn/Sn

•

Contact pull out force:

Female housing

> 90 N

•

Tab material and plating:

•

Contact retention force:

•

Contact insertion force:

•

Connector mating force:

> 75 N

< 30 N

< 90 N

Connector compatibility

•

Usable terminals:

Apex 2.8 mm female terminals

Part Numbers

54451800

54201400

54200409

No. of position

14 + 4

Terminal size

2.8 mm terminals

Type

Pin header

Female housing

Colour

Black

7.9

54200409 Related Products

	54200409	54451800
Description	Combination Line Connector, 4 Contact(s), Female,	Combination Line Connector, 18 Contact(s), Male, Solder Terminal
Reach Compliance Code	compliant	compliant
Connector type	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR
Contact point gender	FEMALE	MALE
DIN compliance	NO	NO
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Mixed contacts	NO	NO
Options	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYAMIDE	POLYAMIDE
Total number of contacts	4	18
Base Number Matches	1	1
