92248-008 Overview

Card Edge Connector, 72 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket,

Parameter Name	Attribute value
Objectid	2146619734
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.5
Other features	POLARIZED, LATCHED
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	TIN LEAD (150) OVER NICKEL
Contact completed and terminated	TIN LEAD (100) OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	72
UL Flammability Code	94V-0

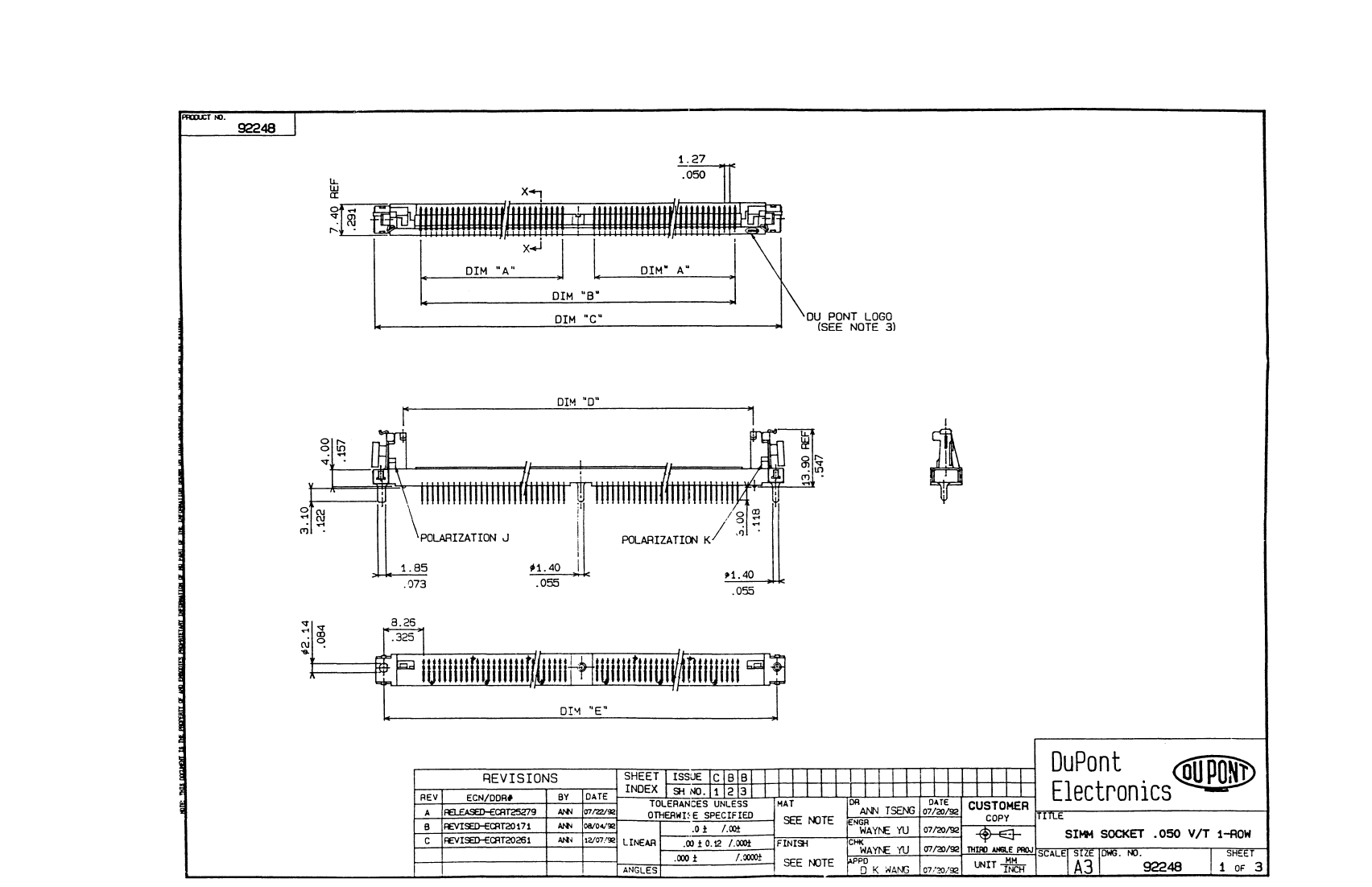

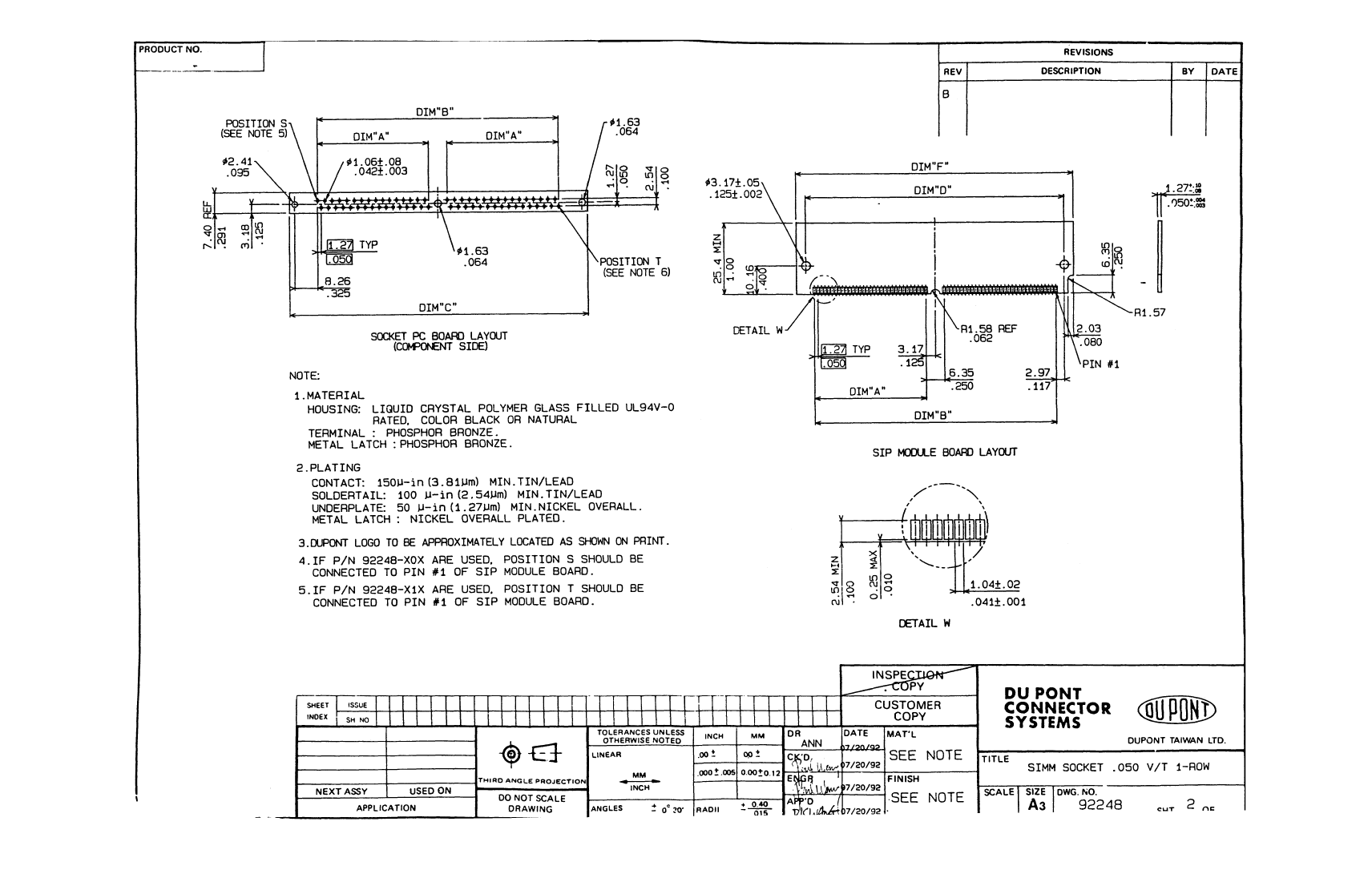

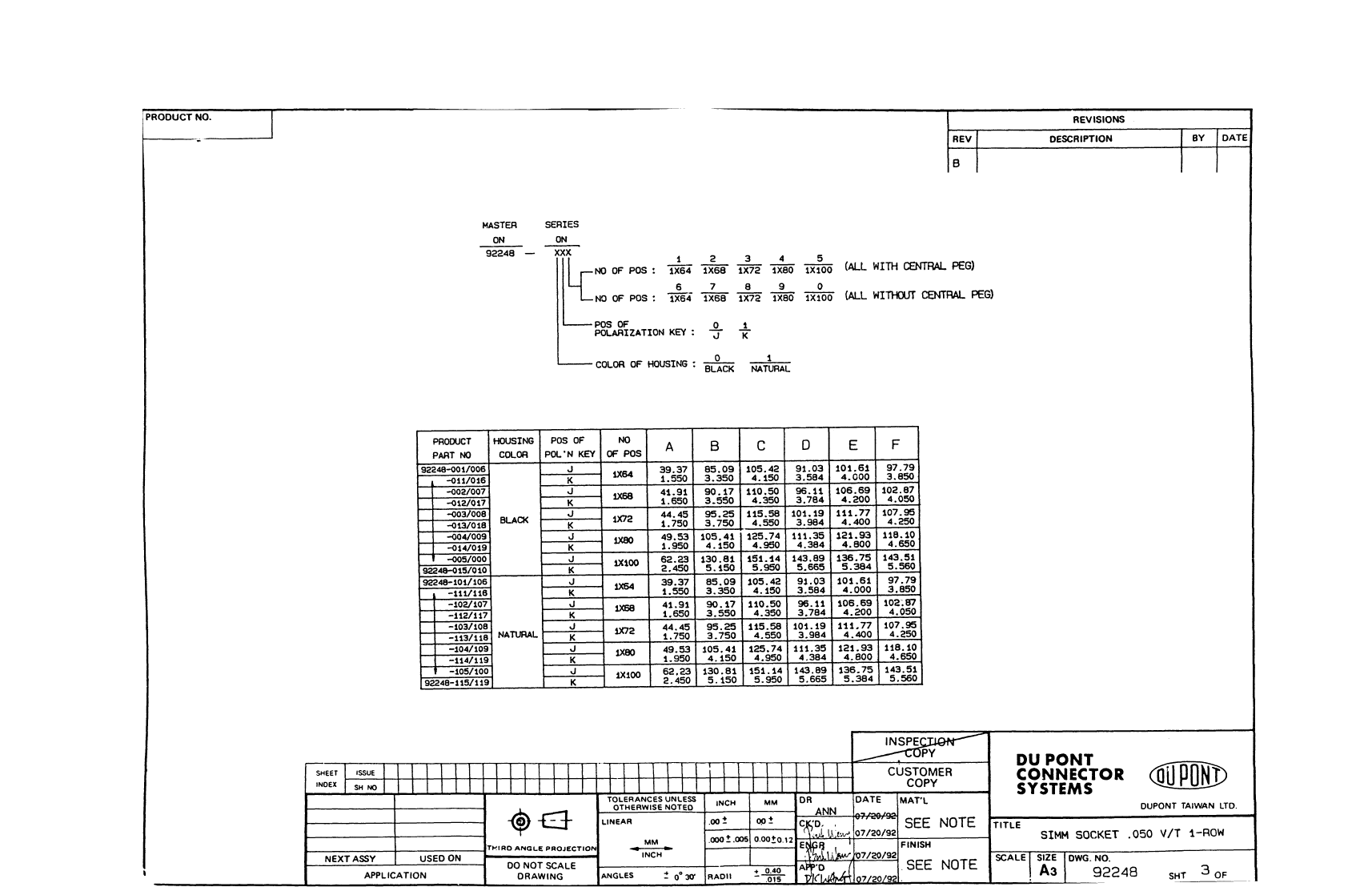

PDM: Rev:C

STATUS:

Released

Printed: Jul 28, 2010
