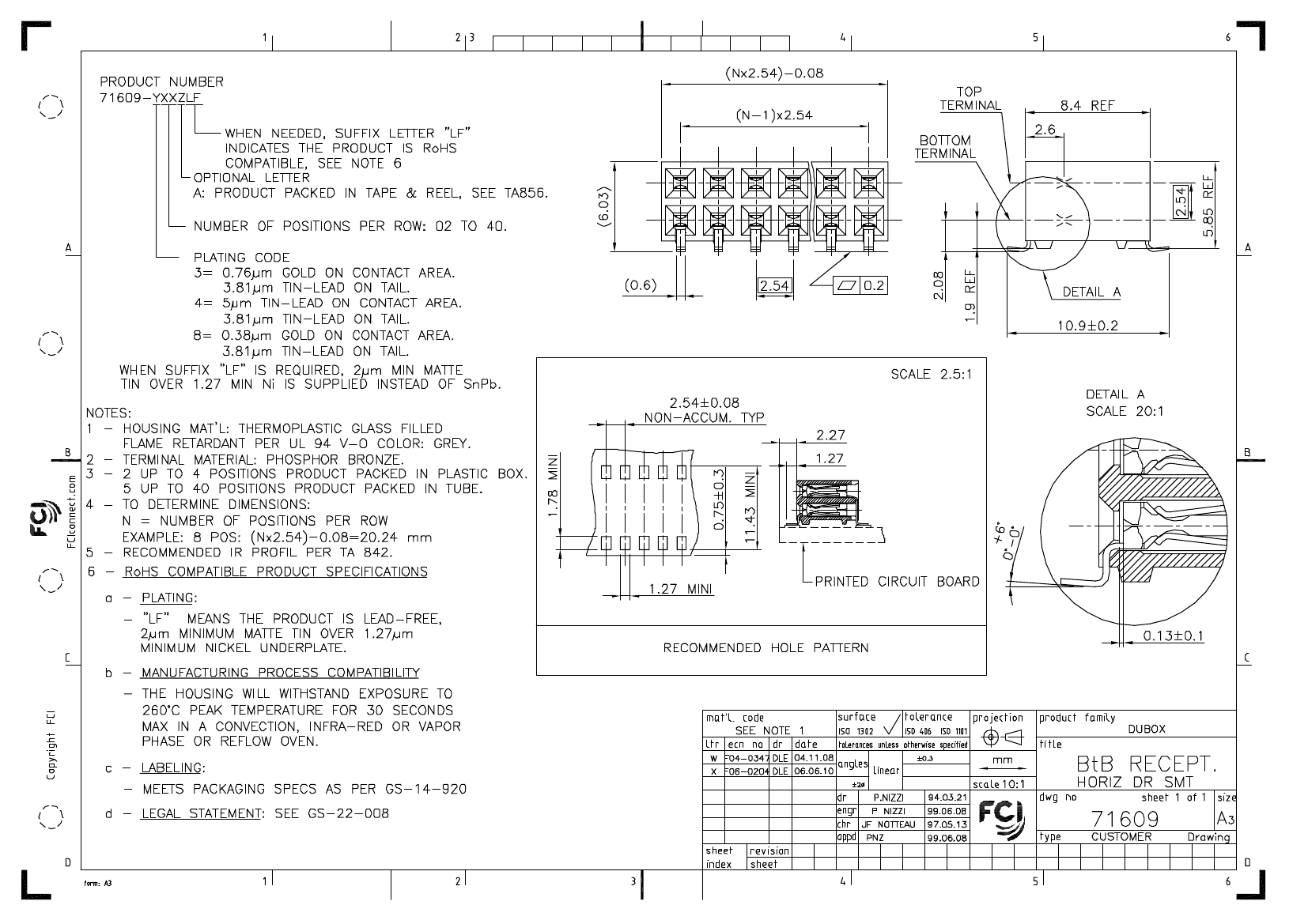

71609-337: DescriptionBoard Connector, 74 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Detent, Gray Insulator, Receptacle; CategoryThe connector The connector; File Size61KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

71609-337 Overview

Board Connector, 74 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Detent, Gray Insulator, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.236 inch
subject depth	0.331 inch
body length	3.62 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.4734 N
Insulation resistance	100000000000 Ω
Insulator color	GRAY
insulator material	THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	71609
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	DETENT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	9.8044 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	74
UL Flammability Code	94V-0
Evacuation force-minimum value	.3058 N
Base Number Matches	1

PDM: Rev:X

STATUS:

Released

Printed: Sep 15, 2009
