33230201 datasheet, PDF - EEWORLD Datasheet

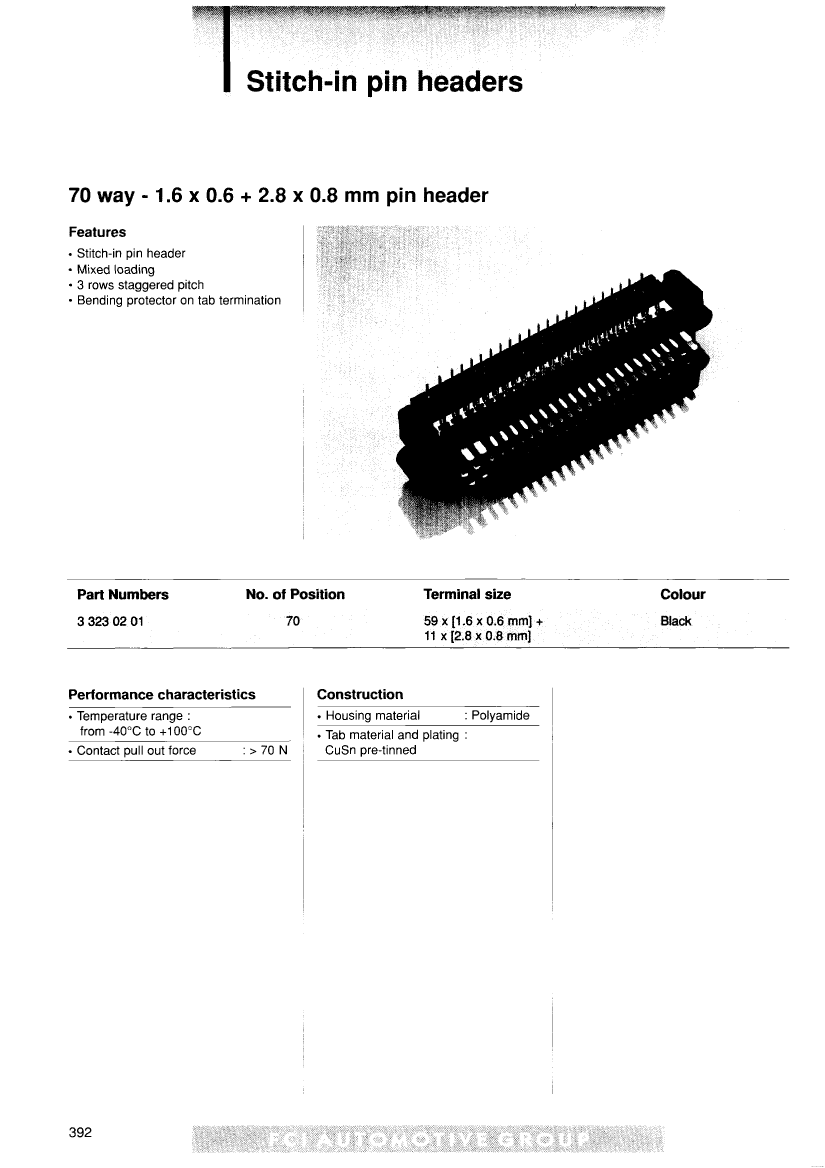

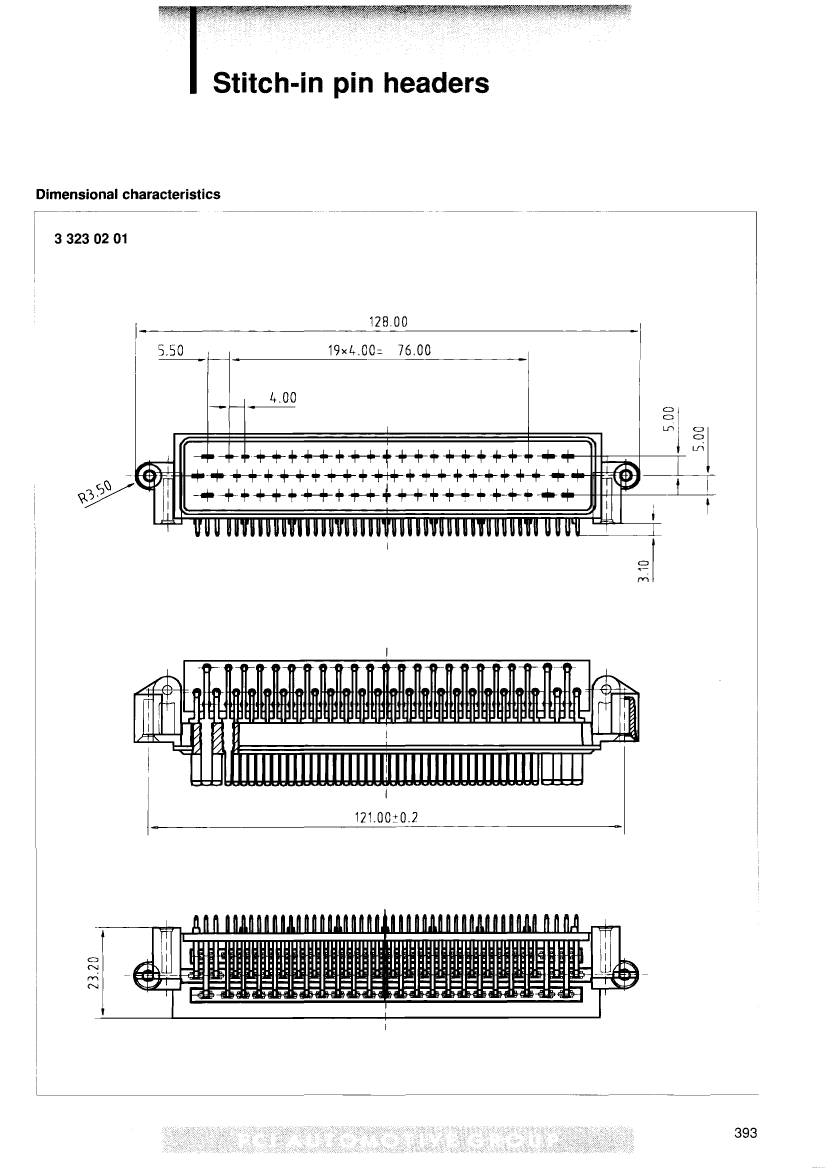

33230201: DescriptionBoard Connector, 70 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size158KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

33230201 Overview

Board Connector, 70 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	STAGGERED CONFIGURATION
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	3323
Mixed contacts	YES
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	4 mm
Termination type	SOLDER
Total number of contacts	70
Base Number Matches	1
