90784-009 datasheet, PDF - EEWORLD Datasheet

90784-009: DescriptionBoard Connector, 80 Contact(s), 2 Row(s), Male, Right Angle, 0.025 inch Pitch, Solder Terminal, M2x0.4, Black Insulator, Plug; CategoryThe connector The connector; File Size2MB，17 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

90784-009 Overview

Board Connector, 80 Contact(s), 2 Row(s), Male, Right Angle, 0.025 inch Pitch, Solder Terminal, M2x0.4, Black Insulator, Plug

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PACKAGING TUBE
body width	0.571 inch
subject depth	0.701 inch
body length	1.417 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD OVER NICKEL
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	15 mΩ
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.417 N
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.025 inch
Mixed contacts	NO
Installation option 1	M2X0.4
Installation option 2	SCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.27 mm
Plating thickness	30u inch
Rated current (signal)	0.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.059 inch
Terminal pitch	0.635 mm
Termination type	SOLDER
Total number of contacts	80
Evacuation force-minimum value	.1112 N
Base Number Matches	1

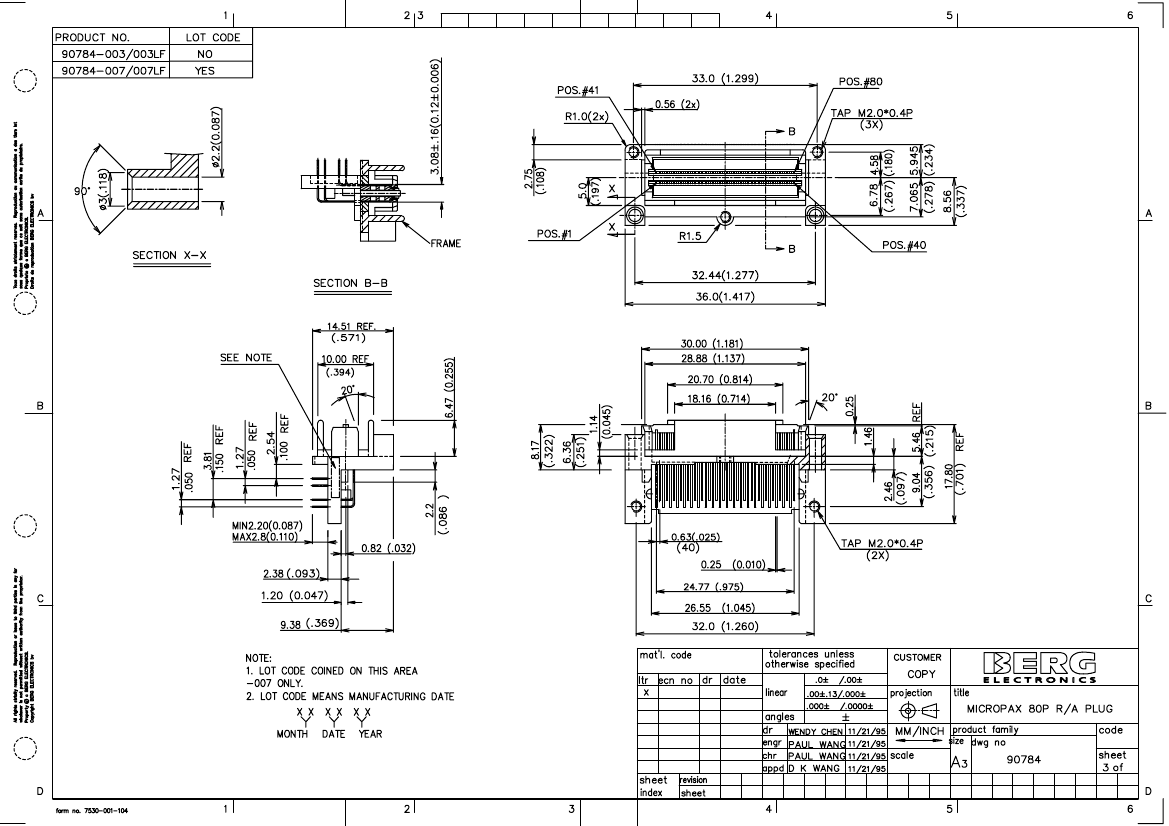

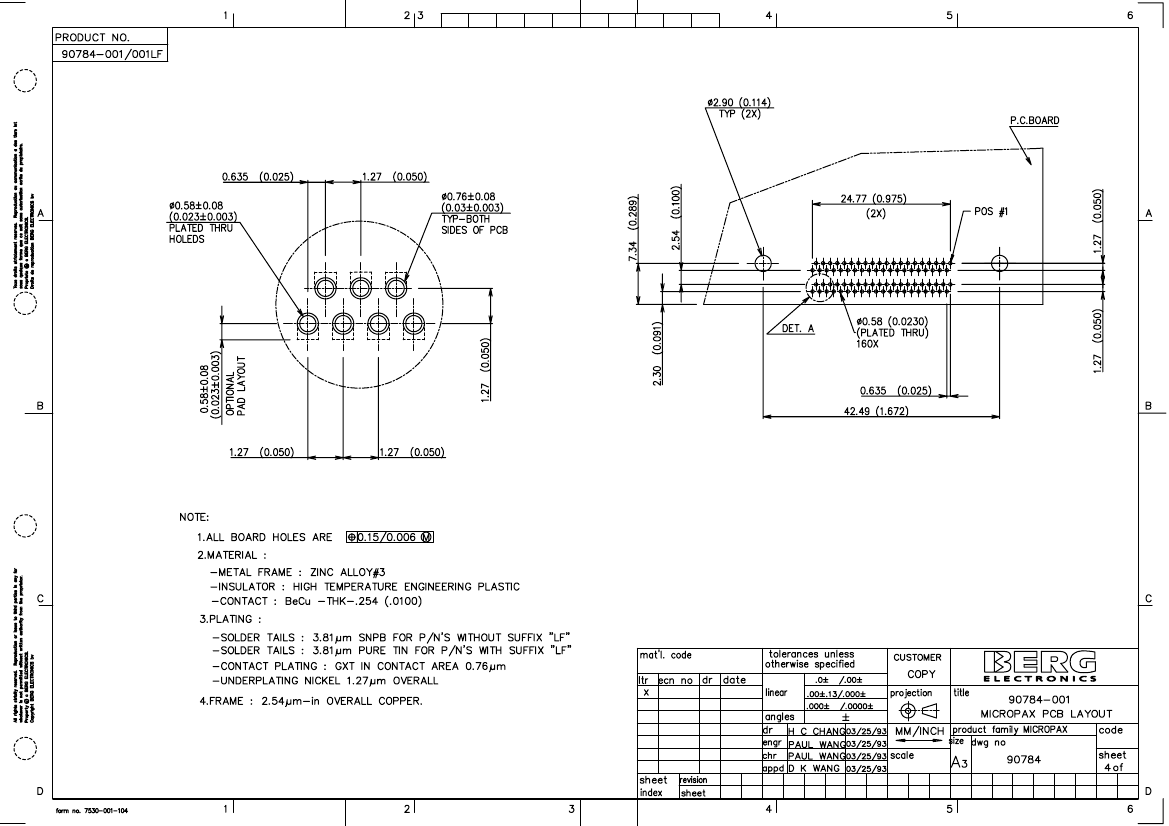

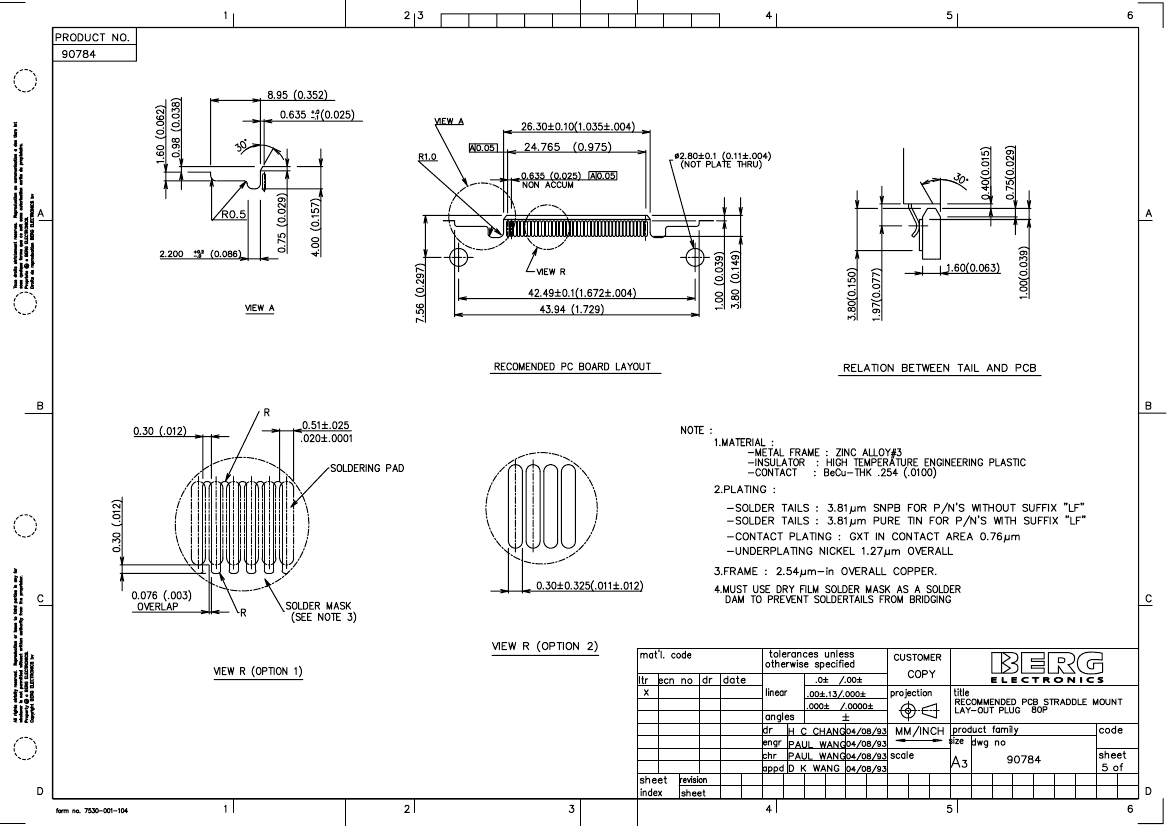

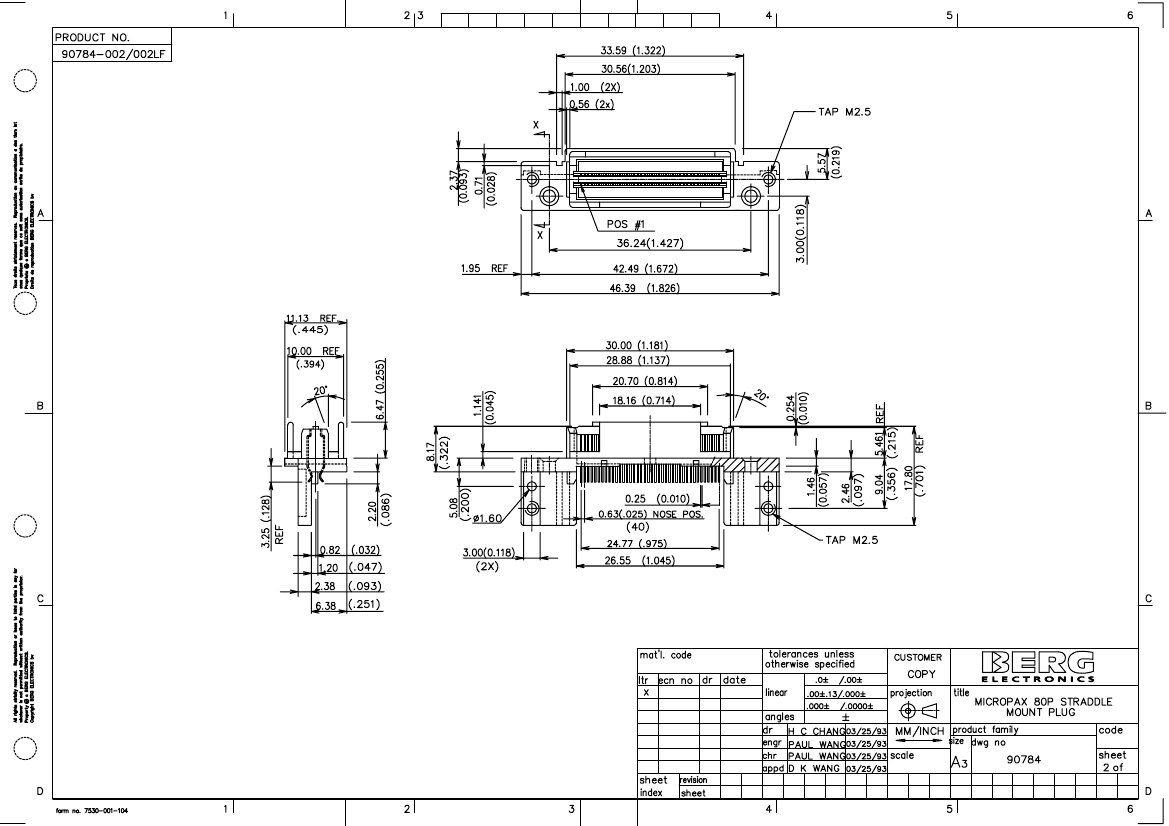

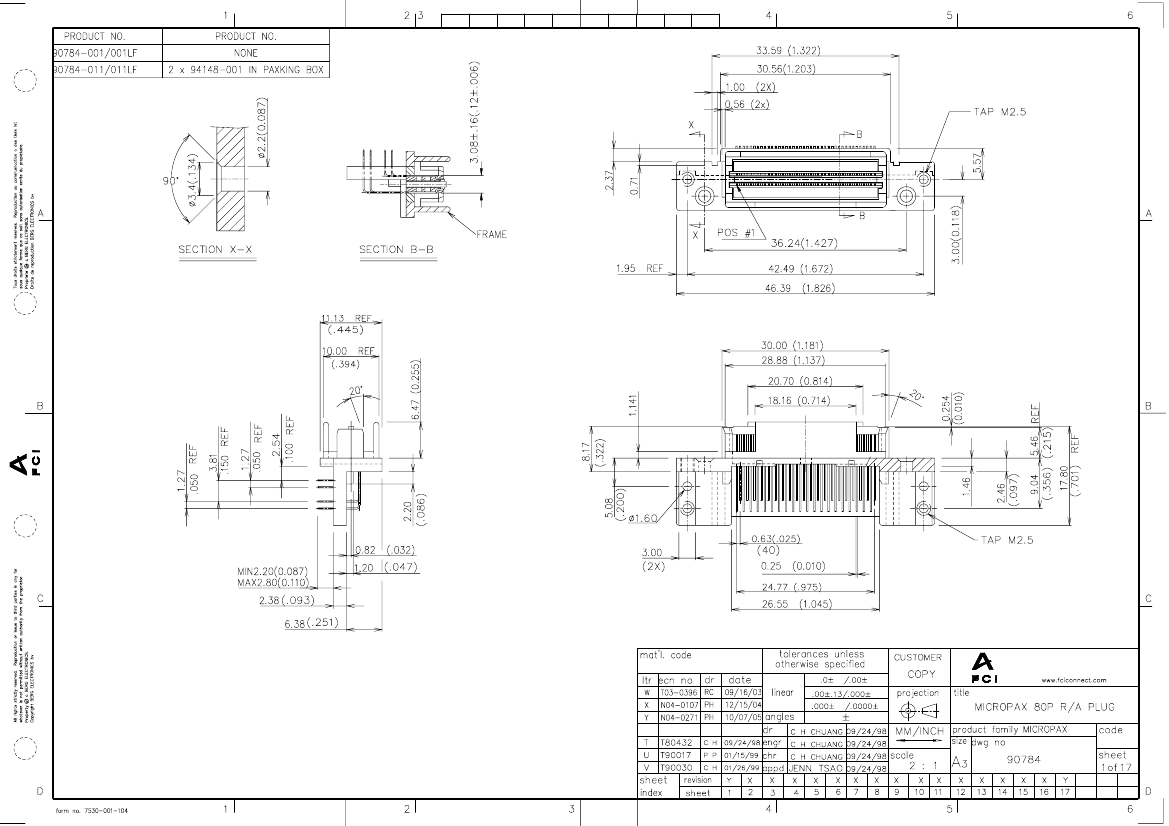

PDM: Rev:Y

STATUS:

Released

Printed: Jul 22, 2010
