31-10-RFXG1

Description
RF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal, Jack
CategoryThe connector    The connector
File Size467KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

31-10-RFXG1 Online Shopping

Suppliers Part Number Price MOQ In stock
31-10-RFXG1 - - View Buy Now

31-10-RFXG1 Overview

RF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal, Jack

31-10-RFXG1 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Factory Lead Time7 weeks 1 day
Other featuresINSERTION LOSS MAX AT 3 GHZ
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF BNC CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGOLD
Contact point genderFEMALE
Coupling typeBAYONET
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.2 dB
insulator materialNYLON
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number31-10-RFXG1
Plug informationMULTIPLE MATING PARTS AVAILABLE
Installation methodSTRAIGHT
Installation typeBOARD
Maximum operating frequency4 GHz
OptionsGENERAL PURPOSE
Panel mountingYES
Termination typeSOLDER
voltage standing wave ratio1.3
Base Number Matches1

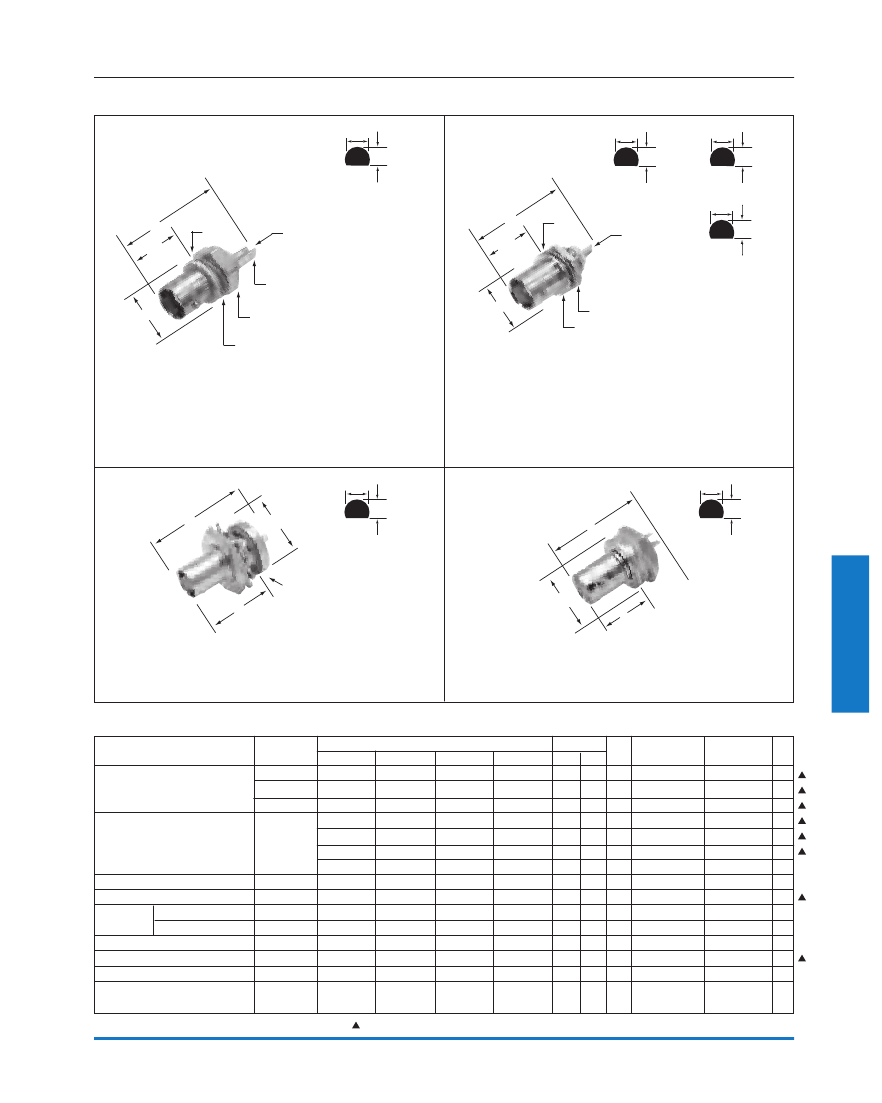

BNC 50 ohm
Bulkhead Receptacles
Fig. 1
.375(9.5)
.342(8.7)
Z
U
e
max panel
Amphenol
®
Fig. 2
.390(9.9)
.355(9.0)
T
.390(9.9)
solder cup
P
.340(8.6)
.437(11.1)
.405(10.3)
BNC
a
d
e
max panel
a
solder cup
d
ground tab
b
b
.500(12.7) hex nut
lock washer
.500(12.7) hex nut
lock washer
BNC Bulkhead Receptacle Isolated from Panel,
Solder Cup & Ground Tab Front Mount
31-10
31-10-RFX
31-10-RFXG1
Fig. 3
a
b
.510(13.0)
.475(12.1)
Y
BNC Bulkhead Receptacles
Front Mount
31-238
5575
31-239
31-102
31-2221
31-221
31-3376
31-221-RFX
31-4238
31-236
Fig. 4
.510(13.0)
.475(12.1)
a
Y
BNC
e
max panel
d
b
d
BNC Bulkhead Receptacle
Rear Mount
31-4237
BNC Bulkhead Receptacle
Isolated From Panel
Front Mount
31-4890-1
BNC BULKHEAD RECEPTACLES
Description
Front Mount, Isolated from Panel
Front Mount
Terminal
Type
Solder Cup
Solder Cup
Solder Cup
Dimensions, inches (mm)
a
b
d
e
1.19(30.2)
.500(12.7) .471(12.0)
.187(4.8)
1.18(30.0)
1.18(30.0)
1.06(27.0)
Front Mount
Solder Cup
1.06(27.0)
1.06(27.0)
1.19(30.2)
1.19(30.2)
1.30(32.9)
1.30(32.9)
1.20(30.6)
1.20(30.6)
1.06(27.0)
1.34(34.0)
1.06(27.0)
.500(12.7)
.500(12.7)
.500(12.7)
.500(12.7)
.500(12.7)
.500(12.7)
.500(12.7)
.578(14.7)
.578(14.7)
.594(15.1)
.594(15.1)
.500(12.7)
.687(17.4)
.625(15.9)
.471(12.0)
.471(12.0)
.484(12.3)
.472(12.0)
.469(11.9)
.481(12.3)
.484(12.3)
.594(15.1)
.594(15.1)
.516(13.1)
.516(13.1)
.472(12.0)
.831(21.1)
.571(14.5)
.125(3.2)
.187(4.8)
.125(3.2)
.125(3.2)
.156(4.0)
.250(6.4)
.250(6.4)
.250(6.4)
.250(6.4)
.250(6.4)
.250(6.4)
.156(4.0)
.250(6.4)
.187(4.7)
Notes Mtg.
Plt. Ins. Hole
P1 D22 Z
P1
P7
P1
P7
P1
P1
P34
P1
P1
P33
P1
P1
P4
D22
D22
D1
D23
D1
D1
D1
D9
D9
D1
D1
D1
Z
Z
U
U
T
Military
Number
UG-1094/U
UG-625B/U
Amphenol
Number
31-10*
Fig .
1
31-10-RFX
1
31-10-RFXG1
1
31-221*
31-221-RFX
31-236*
31-2221
31-3376*
31-239*
31-102*
31-4238*
31-238*
5575*
31-4890-1
2
2
2
2
2
2
2
2
2
2
3
4
Front Mount, Gold Plated Contact
Front Mount, Pressurized
Front Mount, Pressurized
Fr. Mount,
Hermetic
Front Mount
Rear Mount, Hermetic
Front Mount Isolated from Panel
Metal Mounting Threads
Gold Plated Contact
External Tooth Lockwasher
Solder Cup
Solder Cup
Solder Cup
Spade
Spade
Solder Cup
Spade
Solder Cup
U UG-1094A/U
U M39012/21-0002
P
P
UG-657A/U
UG-657/U
UG-912/U
UG-625/U
U M39012/24-0002
T
Y
D
1/11 U
P33 D1/11 Y
M39012/24-0001
31-4237*
* recognized under the component program of U.L., Inc.
distributor stocked
Amphenol Corporation Tel: 800-627-7100
115
www.amphenolrf.com
