8535EF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 8535EF

8535EF: DescriptionInside DC Block, 0.007MHz Min, 50000MHz Max, 1.25dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size41KB，1 Pages; ManufacturerCobham PLC; Environmental Compliance

Download Datasheet Parametric Compare View All

8535EF Overview

Inside DC Block, 0.007MHz Min, 50000MHz Max, 1.25dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE

8535EF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Other features	2.4 MM-F
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum DC voltage	30 V
Maximum insertion loss	1.25 dB
JESD-609 code	e4
Maximum operating frequency	50000 MHz
Minimum operating frequency	0.007 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-35 °C
RF/Microwave Device Types	INSIDE DC BLOCK
Terminal surface	Gold (Au)
Maximum voltage standing wave ratio	1.65
Base Number Matches	1

Preview

Download Datasheet

View All

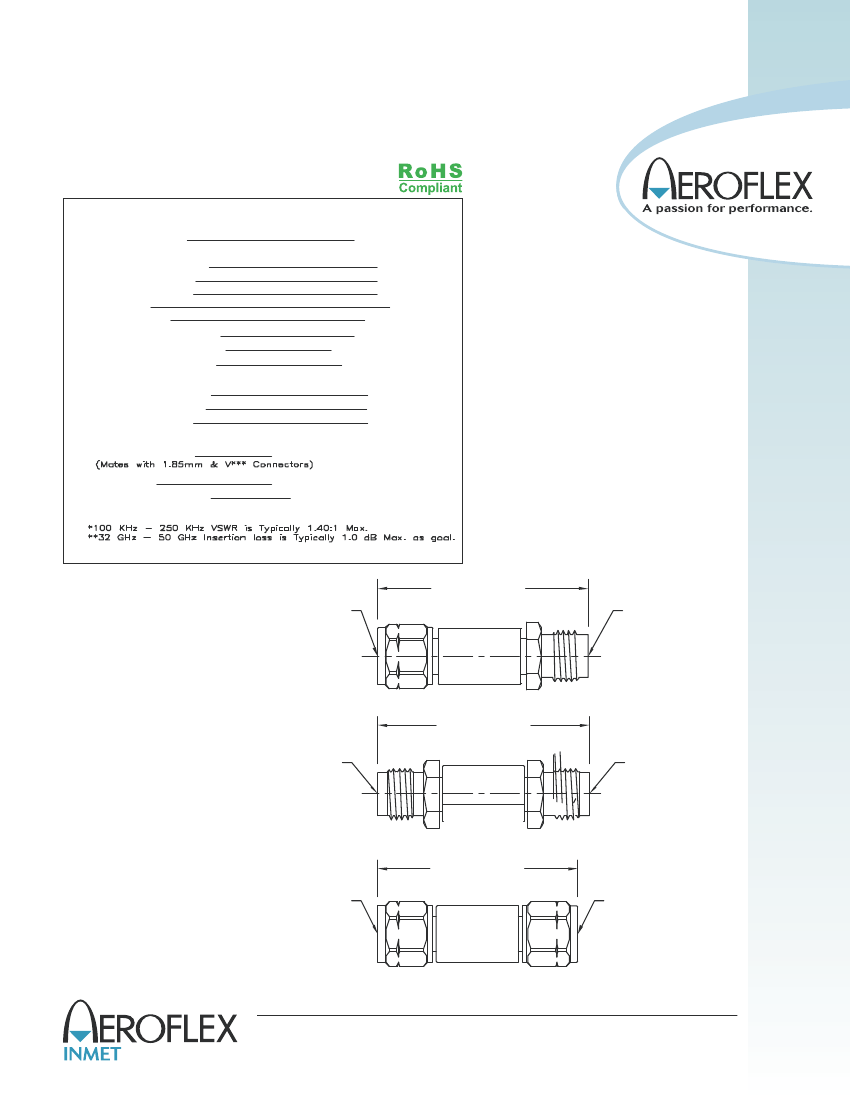

DC BLOCKS

2.4mm, 7 kHz - 50 GHz, Inner Only

SPECIFICATIONS:

Models: 8535E

Electrical:

Frequency Range

VSWR:

*250 KHz - 18 GHz

18 GHz - 32 GHz

32 GHz - 50 GHz

Impedance

Voltage Rating

Operating Temp Range

Typical Rise Time (90%)

< -3 dB Bandwidth Typ.

Insertion Loss:

100 KHz - 1 GHz

2.4

1 GHz - 32 GHz

2.4

32 GHz - 50 GHz**

7 KHz - 50 GHz

1.30:1 Max.

1.55:1 Max.

1.65:1 Max.

50 Ohms

30 Volts Max.

-35°C to +85°C

9 picoSeconds Max.

<7 KHz - >50 GHz

0.50 dB Max.

0.75 dB Max.

1.25 dB Max.

Gold Plated Beryllium Copper

Mechanical:

2.4mm Connectors

Conductors

Gold Plated Beryllium Copper

Barrel & Coupling Nut

Passivated Stainless Steel

For a Gold Plated Barrel & Coupling Nut add /AU to the Model Number

***V is a trademark of Anritsu Corp.

Model Number:

8535E

2.4mm Male

1.125±.050

[28.58±1.27]

2.4mm Male / Female

2.4mm Female

Model Number:

8535EF

2.4mm Female

1.134±.050

[28.80±1.27]

2.4mm Female

2.4mm Female / Female

Model Number:

8535EM

2.4mm Male

1.070±.050

[27.18±1.27]

2.4mm Male

2.4mm Male / Male

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

8535E: REV D

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex.com/inmet • inmetsales@aeroflex.com

8535EF Related Products

	8535EF	8535EM	8535E
Description	Inside DC Block, 0.007MHz Min, 50000MHz Max, 1.25dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE	Inside DC Block, 0.007MHz Min, 50000MHz Max, 1.25dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE	Inside DC Block, 0.007MHz Min, 50000MHz Max, 1.25dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE
Reach Compliance Code	unknown	unknown	unknown
Other features	2.4 MM-F	2.4 MM-M	2.4 MM-F; 2.4 MM-M
Characteristic impedance	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL
Maximum DC voltage	30 V	30 V	30 V
Maximum insertion loss	1.25 dB	1.25 dB	1.25 dB
JESD-609 code	e4	e4	e4
Maximum operating frequency	50000 MHz	50000 MHz	50000 MHz
Minimum operating frequency	0.007 MHz	0.007 MHz	0.007 MHz
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-35 °C	-35 °C	-35 °C
RF/Microwave Device Types	INSIDE DC BLOCK	INSIDE DC BLOCK	INSIDE DC BLOCK
Terminal surface	Gold (Au)	Gold (Au)	GOLD
Maximum voltage standing wave ratio	1.65	1.65	1.65
Base Number Matches	1	1	1
Is it lead-free?	Lead free	Lead free	-
Is it Rohs certified?	conform to	conform to	-
