8535EM: DescriptionInside DC Block, 0.007MHz Min, 50000MHz Max, 1.25dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size191KB，1 Pages; ManufacturerCobham Semiconductor Solutions; Environmental Compliance

Download Datasheet Parametric Compare View All

8535EM Overview

Inside DC Block, 0.007MHz Min, 50000MHz Max, 1.25dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Other features	2.4 MM-M
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum DC voltage	30 V
Maximum insertion loss	1.25 dB
JESD-609 code	e4
Maximum operating frequency	50000 MHz
Minimum operating frequency	0.007 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-35 °C
RF/Microwave Device Types	INSIDE DC BLOCK
Terminal surface	Gold (Au)
Maximum voltage standing wave ratio	1.65
Base Number Matches	1

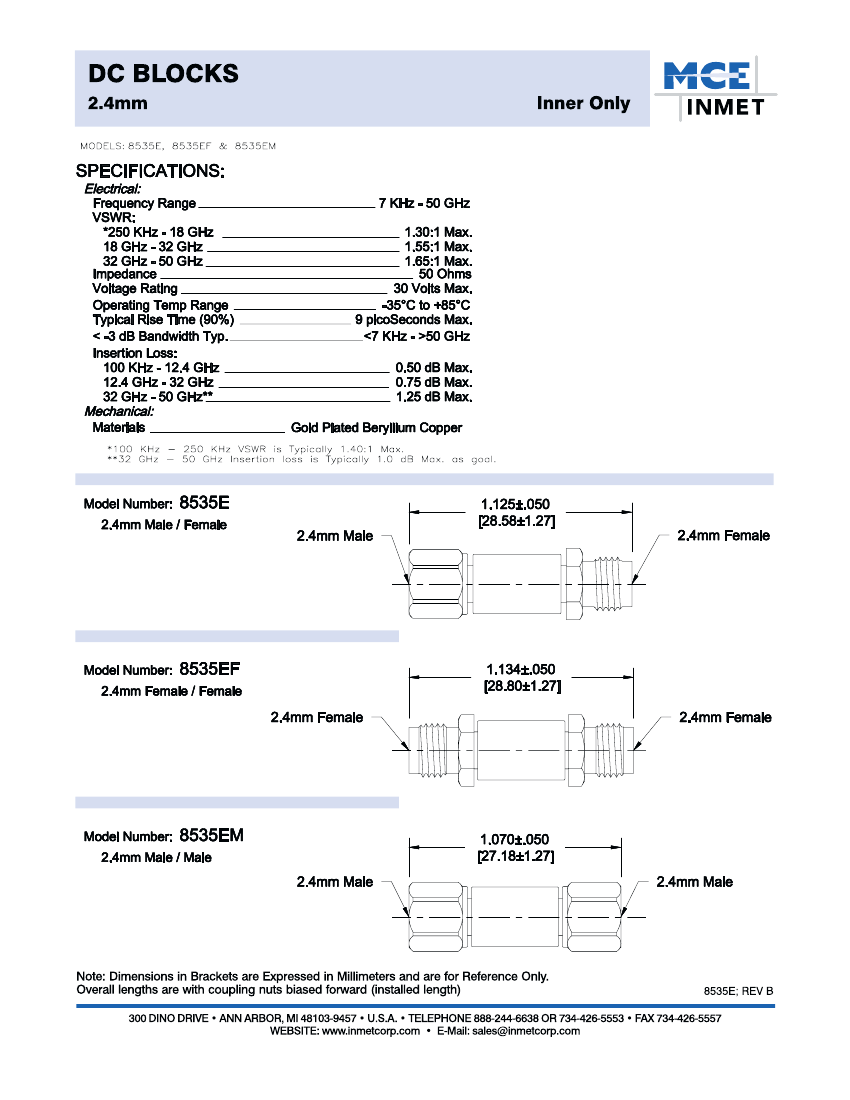

7 kHz - 50 GHz

	8535EM	8535E
Description	Inside DC Block, 0.007MHz Min, 50000MHz Max, 1.25dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE	Inside DC Block, 0.007MHz Min, 50000MHz Max, 1.25dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	unknown	unknown
Other features	2.4 MM-M	2.4 MM-F; 2.4 MM-M
Characteristic impedance	50 Ω	50 Ω
structure	COAXIAL	COAXIAL
Maximum DC voltage	30 V	30 V
Maximum insertion loss	1.25 dB	1.25 dB
JESD-609 code	e4	e4
Maximum operating frequency	50000 MHz	50000 MHz
Minimum operating frequency	0.007 MHz	0.007 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-35 °C	-35 °C
RF/Microwave Device Types	INSIDE DC BLOCK	INSIDE DC BLOCK
Terminal surface	Gold (Au)	Gold (Au)
Maximum voltage standing wave ratio	1.65	1.65
Base Number Matches	1	1
