8535GLF/AU datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 8535GLF/AU

8535GLF/AU: DescriptionInside DC Block, 0.007MHz Min, 26500MHz Max, 1.2dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size48KB，1 Pages; ManufacturerCobham Semiconductor Solutions; Environmental Compliance

Download Datasheet Parametric Compare View All

8535GLF/AU Overview

Inside DC Block, 0.007MHz Min, 26500MHz Max, 1.2dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE

8535GLF/AU Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Other features	GPO-F
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum DC voltage	50 V
Maximum insertion loss	1.2 dB
JESD-609 code	e4
Maximum operating frequency	26500 MHz
Minimum operating frequency	0.007 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-35 °C
RF/Microwave Device Types	INSIDE DC BLOCK
Terminal surface	Gold (Au)
Maximum voltage standing wave ratio	1.4
Base Number Matches	1

Preview

Download Datasheet

View All

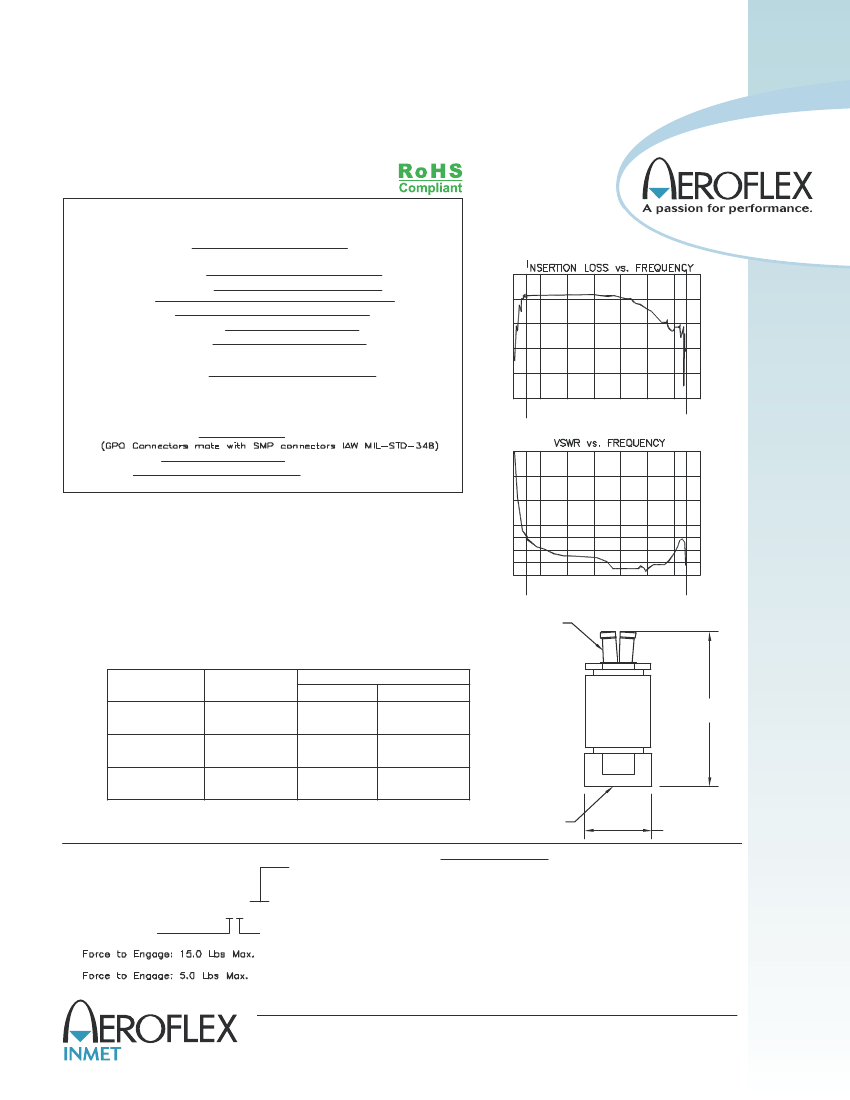

DC BLOCKS

GPO™, 7 kHz - 26.5 GHz, Inner Only

SPECIFICATIONS:

Models: 8535GX, 8535GLX

Electrical:

Frequency Range

VSWR:

30 KHz - 1 GHz

1 GHz - 26.5 GHz

Impedance

Voltage Rating

Operating Temp Range

Rise Time (10 - 90%)

Insertion Loss

30 kHz - 26.5 GHz

7 kHz - 26.5 GHz

1.35:1 Max.

1.40:1 Max.

50 Ohms

50 Volts Max.

-35°C to +85°C

< 9 pS Typical

1.2 dB Max.

Typical performance from 7 kHz - 26.5 GHz

-0.2

-0.4

-0.6

-0.8

-1.0

Insertion Loss (dB)

Mechanical:

Conductors

Barrel**

.00001

.0001

.001

.01

100

GPO

Connectors

30 kHz

Gold Plated Beryllium Copper

Passivated Stainless Steel

2.0

1.8

1.6

FREQ (GHz)

26.5 GHz

GPO is a trademark of Corning Gilbert Inc.

VSWR

** For a Gold Plated Barrel add /AU to the Model Number

1.4

1.3

1.2

1.1

1.0

.00001

.0001

.001

.01

100

Model Number:

8535GYZ

30 kHz

FREQ (GHz)

26.5 GHz

GPO Female

Connector

Configuration

Male/Female

Male/Male

Female/Female

Model

Numbers

8535G

8535GL

8535GM

8535GLM

8535GF

LENGTH

Inches

Millimeters

.58 ±.05

.56 ±.05

.60 ±.05

4.73 ±1.27]

4.22 ±1.27]

[15.24 ±1.27]

LENGTH

GPO Male

Ø.25 [6.35]

HOW TO ORDER:

Finish

= Passivated Barrel

/AU = Gold Plated Barrel

Model Number:

Ordering Examples:

Model Number:

8535G

GPO - Male/Female, Male has Full Detent Interface

Model Number:

8535GF

GPO- Female/Female

Model Number:

8535GLM

GPO- Male/Male, Limited Detent Interface

8535G: REV A

8535GYZ/FF

Connector Configuration

= Male/Female

F = Fem/Fem

M = Male/Male

Connector Style

= Full Detent Male Interface

L = Limited Detent Male Interface

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex-inmet.com • inmetsales@aeroflex.com

8535GLF/AU Related Products

	8535GLF/AU	8535GLF
Description	Inside DC Block, 0.007MHz Min, 26500MHz Max, 1.2dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE	Inside DC Block, 0.007MHz Min, 26500MHz Max, 1.2dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	unknown	unknown
Other features	GPO-F	GPO-F
Characteristic impedance	50 Ω	50 Ω
structure	COAXIAL	COAXIAL
Maximum DC voltage	50 V	50 V
Maximum insertion loss	1.2 dB	1.2 dB
Maximum operating frequency	26500 MHz	26500 MHz
Minimum operating frequency	0.007 MHz	0.007 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-35 °C	-35 °C
RF/Microwave Device Types	INSIDE DC BLOCK	INSIDE DC BLOCK
Maximum voltage standing wave ratio	1.4	1.4
Base Number Matches	1	1
