50324-XX001 datasheet, PDF - EEWORLD Datasheet

50324-XX001: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size215KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

50324-XX001 Overview

Board Connector, 6 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle

Parameter Name	Attribute value
Reach Compliance Code	unknown
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	50324
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0
Base Number Matches	1

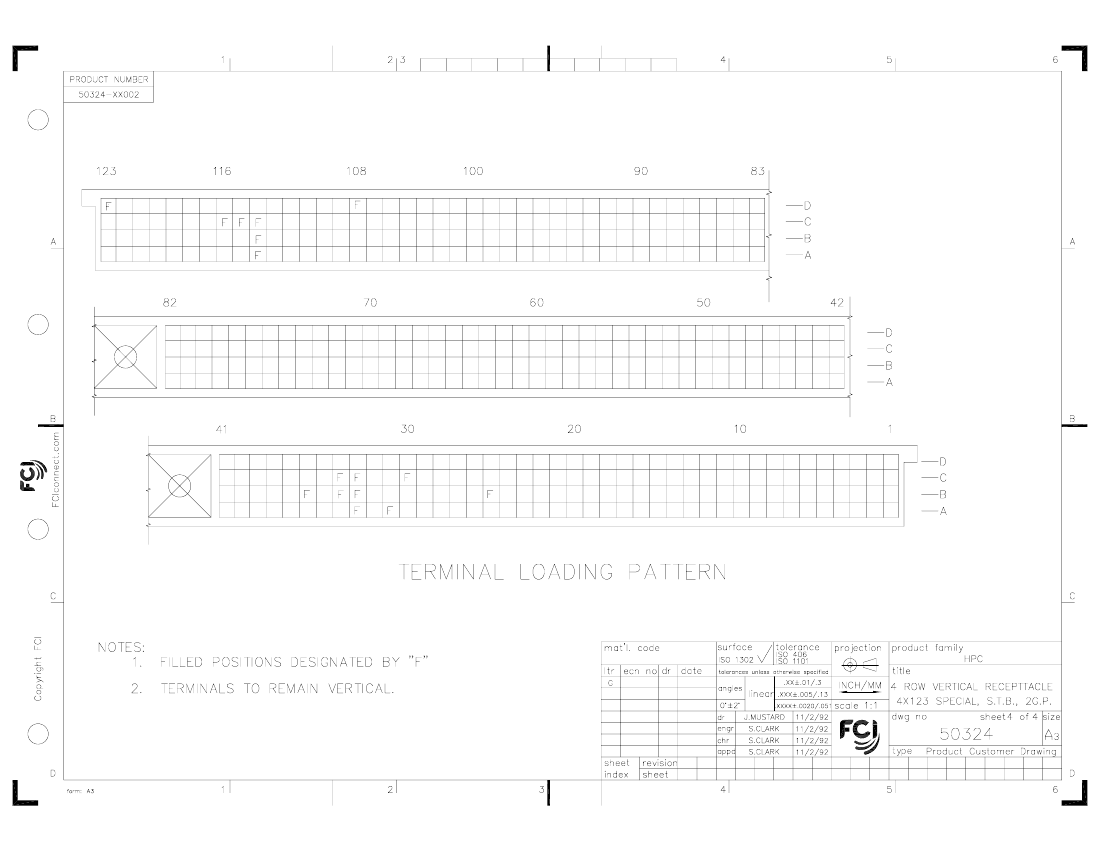

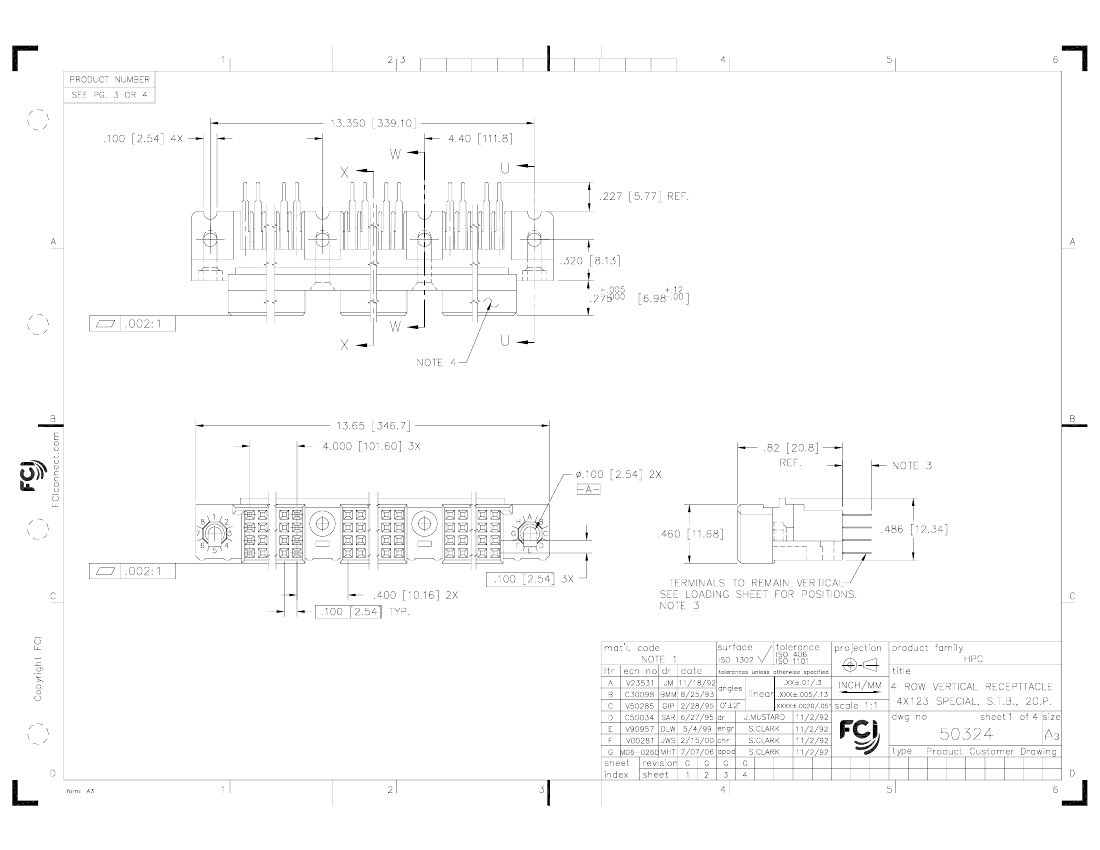

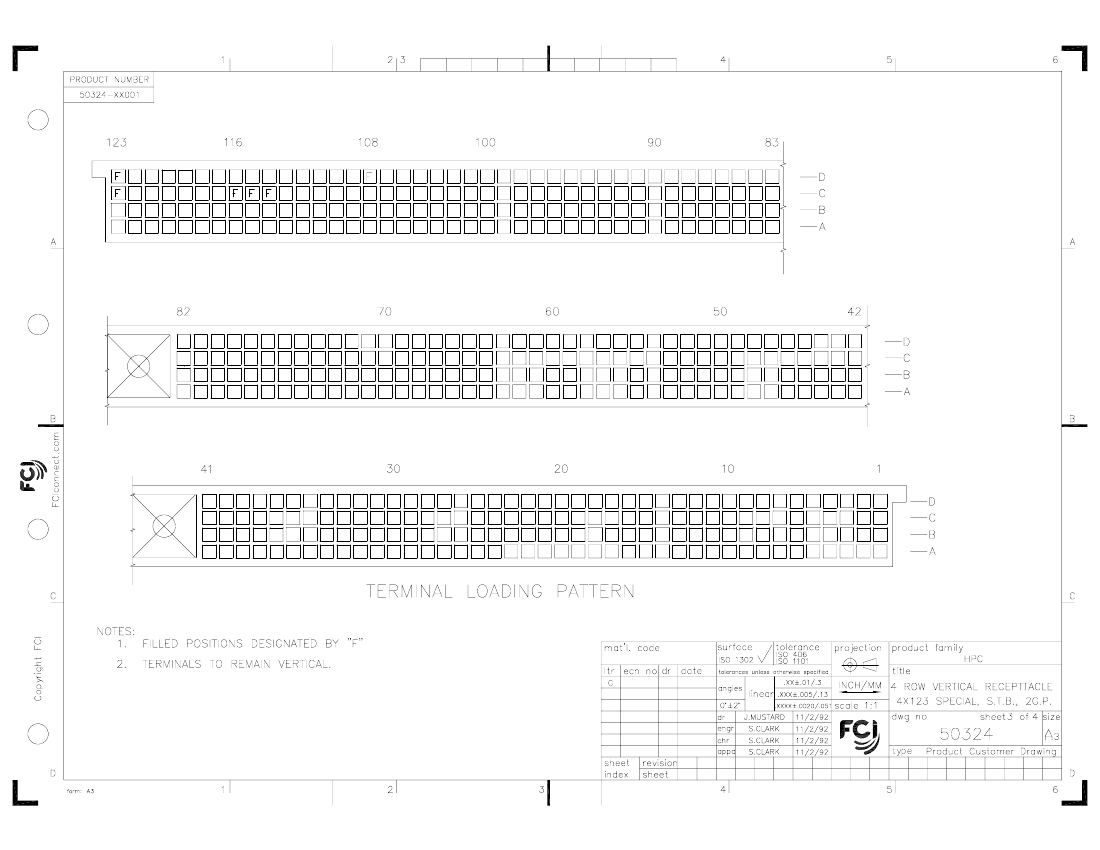

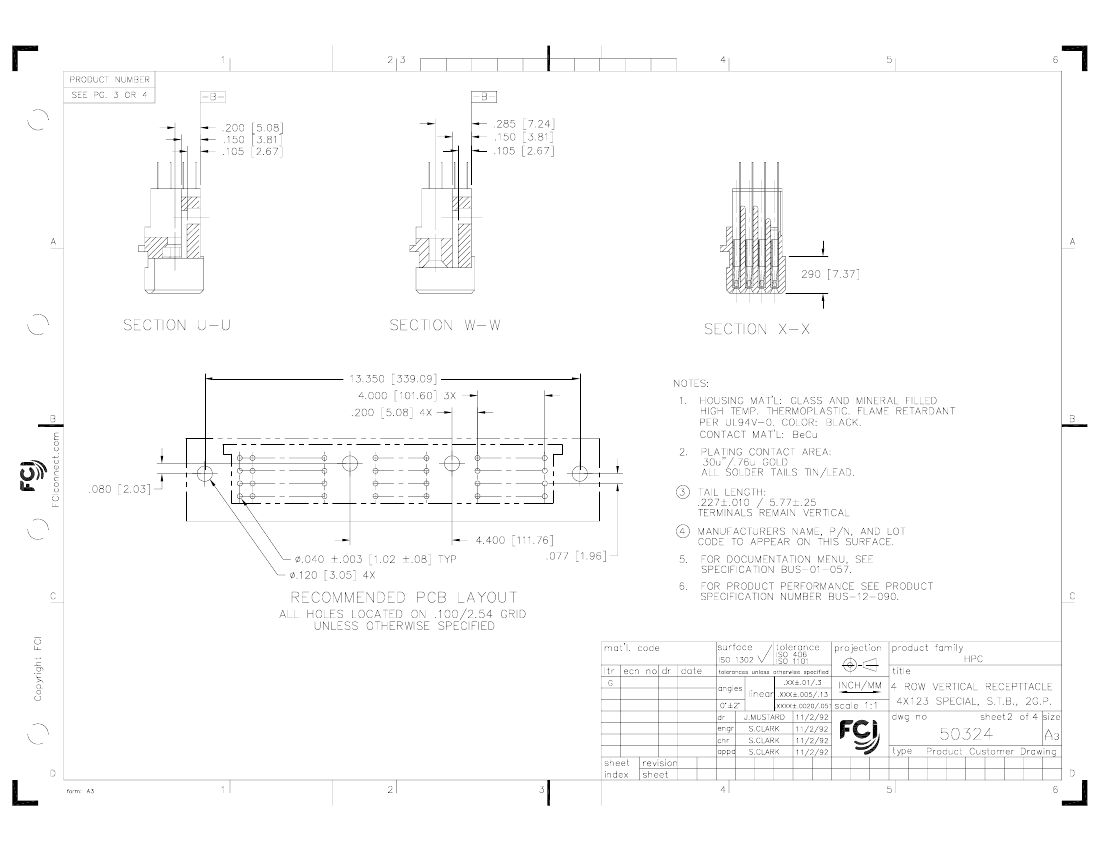

PDM: Rev:G

STATUS:

Released

Printed: May 13, 2011

.

	50324-XX001	50324-XX002
Description	Board Connector, 6 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle	Board Connector, 16 Contact(s), 4 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle
Reach Compliance Code	unknown	compliant
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)	GOLD (30)
Contact completed and terminated	TIN LEAD	TIN LEAD
Contact point gender	FEMALE	FEMALE
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
JESD-609 code	e0	e0
MIL compliance	NO	NO
Manufacturer's serial number	50324	50324
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of rows loaded	2	4
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Total number of contacts	6	16
UL Flammability Code	94V-0	94V-0
Base Number Matches	1	1
