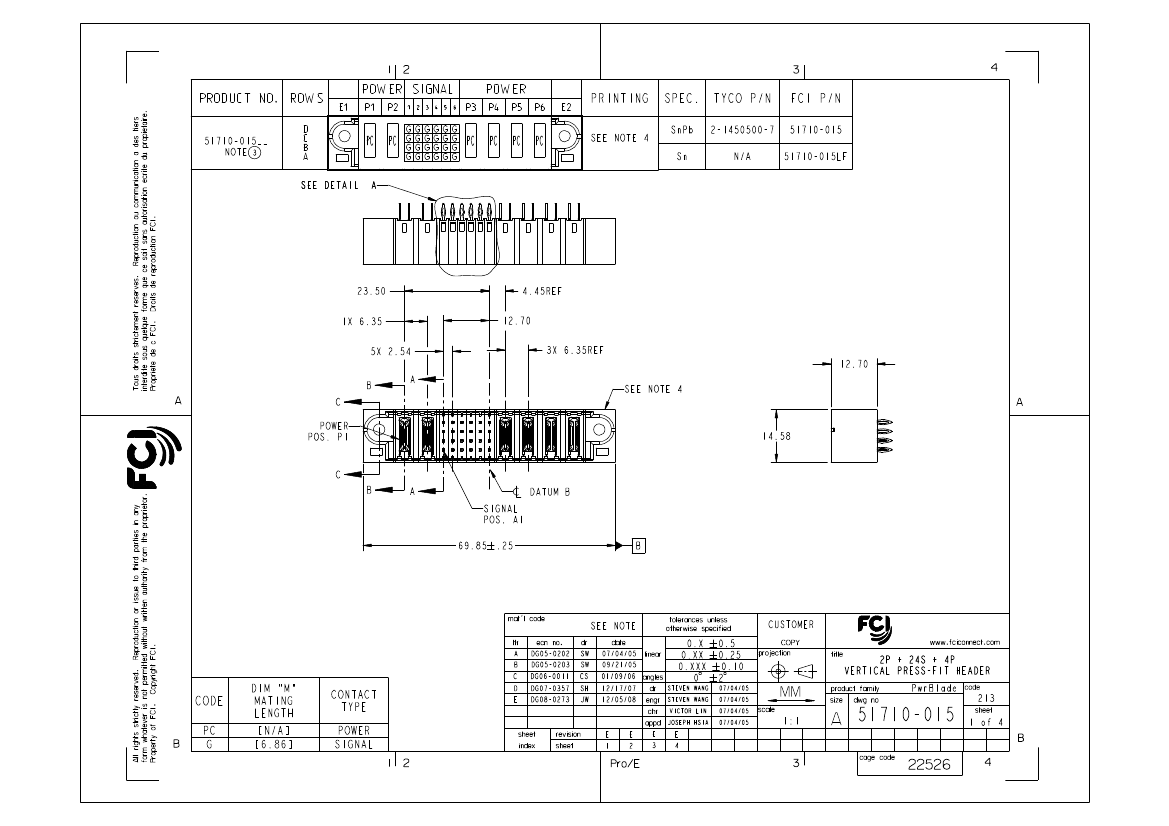

Preview

51710-015: DescriptionBoard Connector, 30 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size261KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

51710-015 Overview

Board Connector, 30 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, Locking, Receptacle

51710-015 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
body width	0.574 inch
subject depth	0.5 inch
body length	2.75 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S24P6
Contact to complete cooperation	TIN LEAD
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	51710
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.165 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	30
UL Flammability Code	94V-0
Evacuation force-minimum value	.1668 N
Base Number Matches	1

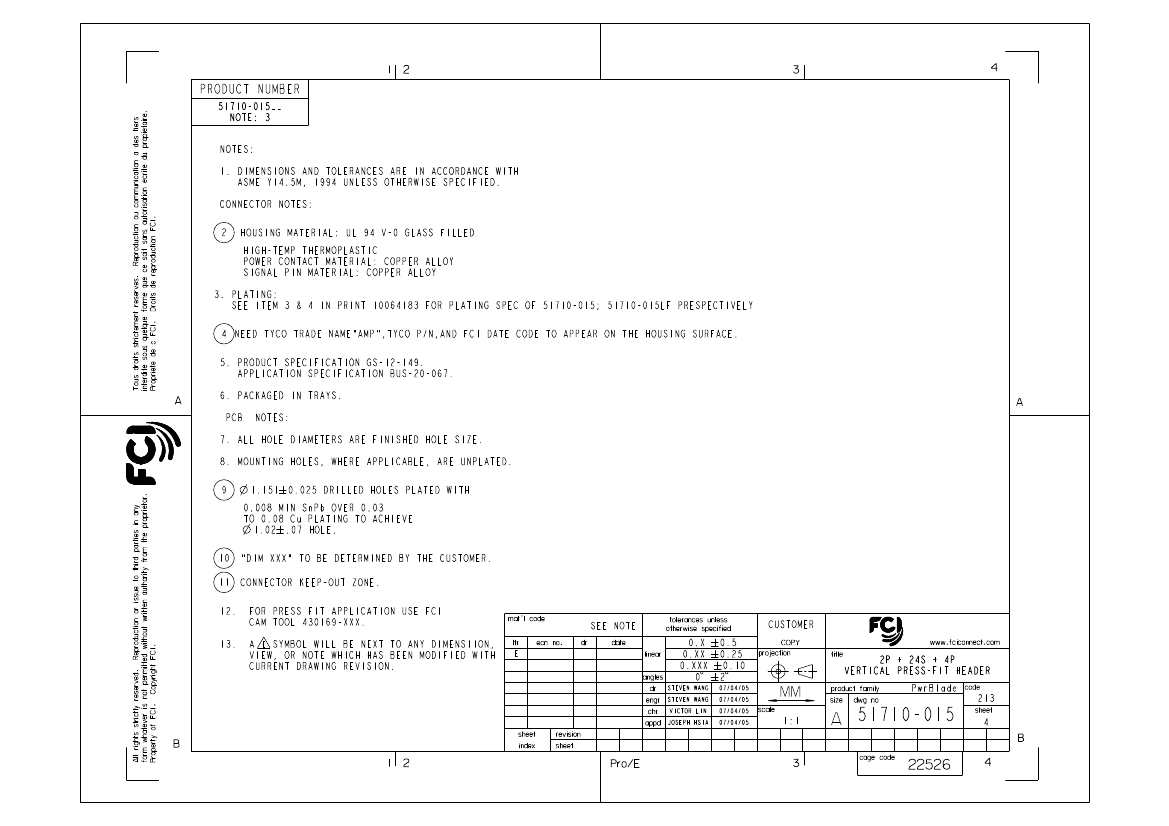

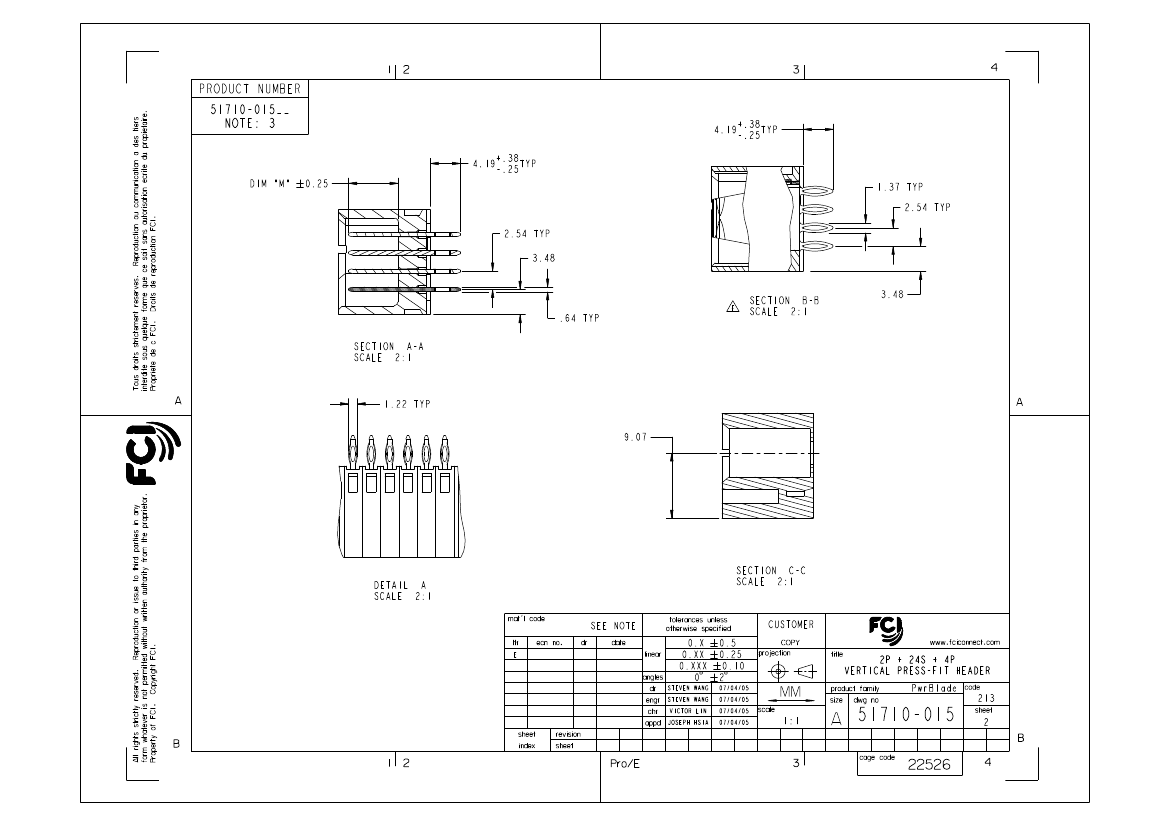

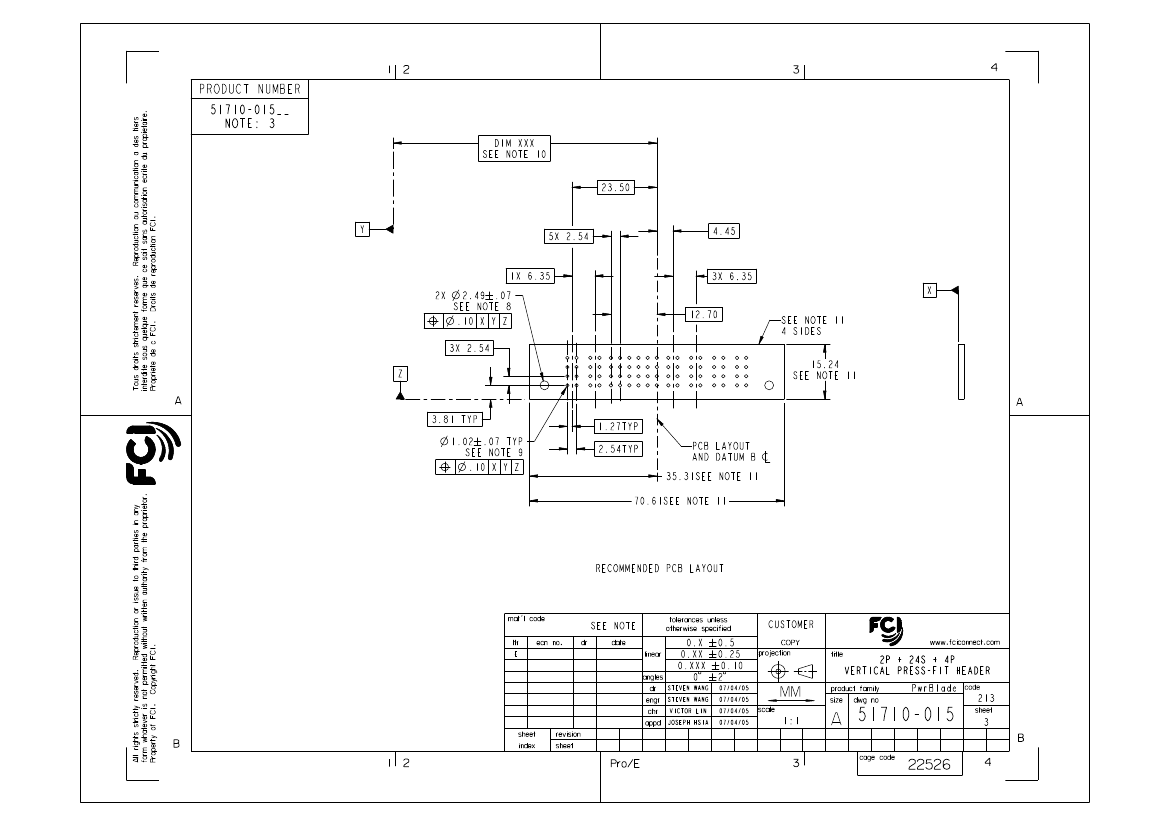

Preview

Download Datasheet

View All

PDM: Rev:E

STATUS:

Released

Printed: Dec 20, 2010

.

51710-015 Related Products

	51710-015	51710-015LF
Description	Board Connector, 30 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, Locking, Receptacle	Board Connector, 30 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, Locking, Receptacle, LEAD FREE
Is it lead-free?	Contains lead	Lead free
Is it Rohs certified?	incompatible	conform to
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
body width	0.574 inch	0.574 inch
subject depth	0.5 inch	0.5 inch
body length	2.75 inch	2.75 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S24P6	S24P6
Contact to complete cooperation	TIN LEAD	TIN
Contact completed and terminated	TIN LEAD	Tin (Sn)
Contact point gender	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY
Contact resistance	20 mΩ	20 mΩ
Contact style	HYBRID	HYBRID
DIN compliance	NO	NO
Dielectric withstand voltage	2500VDC V	2500VDC V
Durability	200 Cycles	200 Cycles
Filter function	NO	NO
IEC compliance	NO	NO
maximum insertion force	.973 N	.973 N
Insulation resistance	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
JESD-609 code	e0	e3
MIL compliance	NO	NO
Manufacturer's serial number	51710	51710
Mixed contacts	YES	YES
Installation option 1	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
Number of rows loaded	4	4
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
Rated current (signal)	3 A	3 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.165 inch	0.165 inch
Terminal pitch	2.54 mm	2.54 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	30	30
UL Flammability Code	94V-0	94V-0
Evacuation force-minimum value	.1668 N	.1668 N
Base Number Matches	1	1
