88945-102 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 88945-102

88945-102: DescriptionBoard Connector, 24 Contact(s), 4 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size159KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

88945-102 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	88945-102	-	-	View	Buy Now

88945-102 Overview

Board Connector, 24 Contact(s), 4 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle

88945-102 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SCSI BUS, FUTUREBUS
body width	0.368 inch
subject depth	0.832 inch
body length	0.47 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VDC V
Filter function	NO
IEC compliance	NO
maximum insertion force	.5004 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.114 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	24
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N
Base Number Matches	1

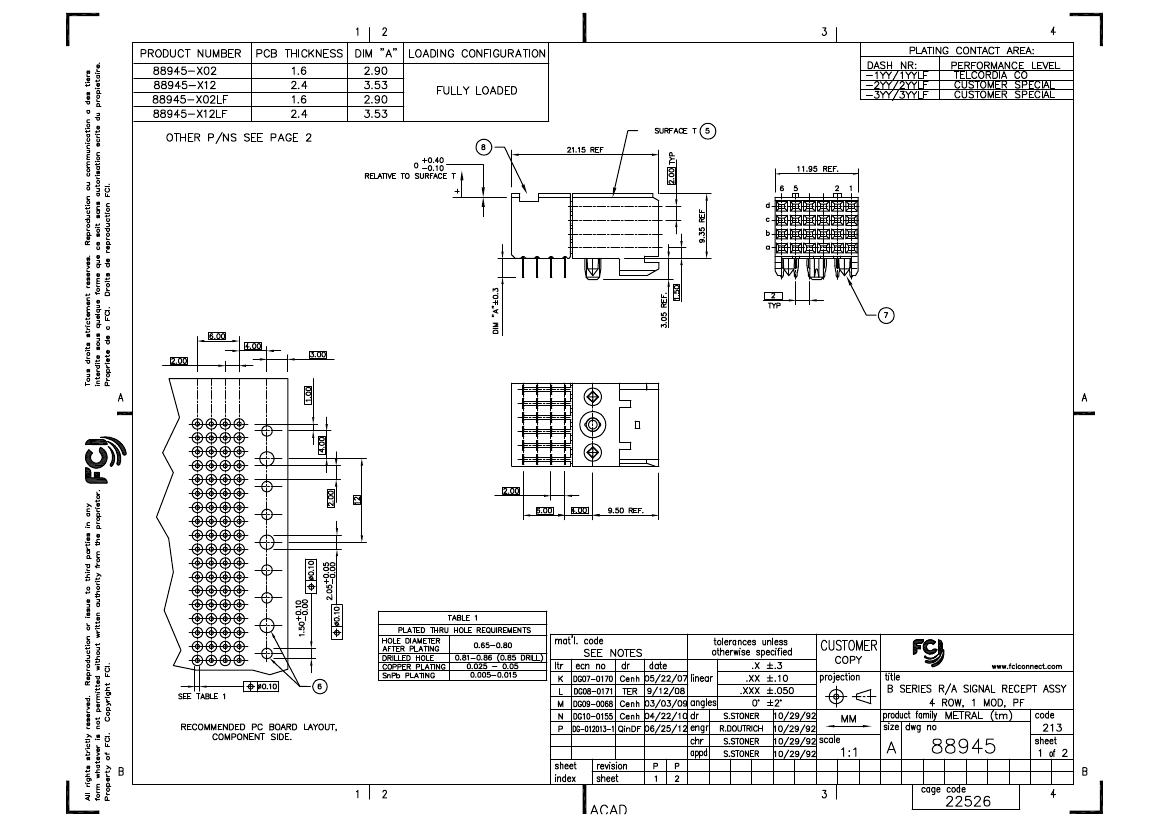

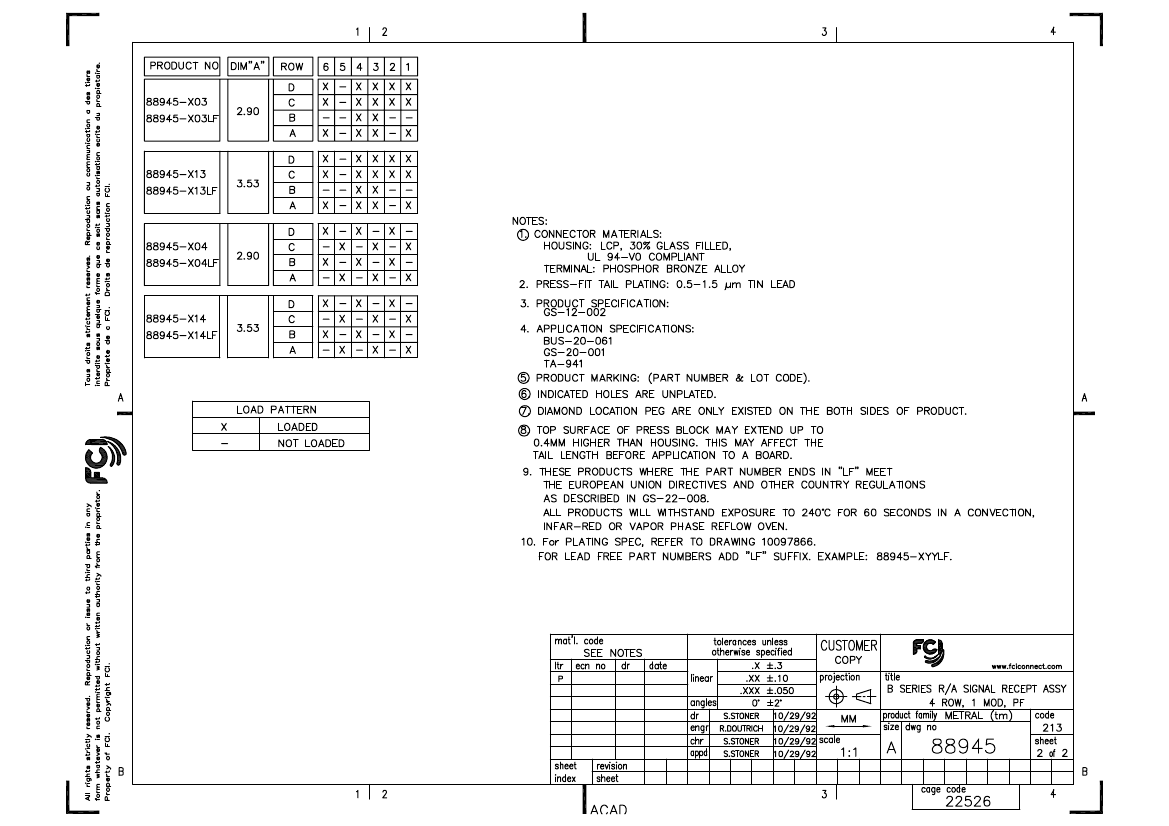

Preview

Download Datasheet

View All

PDS: Rev :P

STATUS:Released

Printed: Jun 26, 2012

88945-102 Related Products

	88945-102	88945-102LF
Description	Board Connector, 24 Contact(s), 4 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle	Board Connector, 24 Contact(s), 4 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle, LEAD FREE
Is it Rohs certified?	incompatible	conform to
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
body width	0.368 inch	0.368 inch
subject depth	0.832 inch	0.832 inch
body length	0.47 inch	0.47 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO
Dielectric withstand voltage	1000VDC V	1000VDC V
Filter function	NO	NO
IEC compliance	NO	NO
maximum insertion force	.5004 N	100.08 N
Insulation resistance	1000000000 Ω	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO	NO
Plug contact pitch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch
Mixed contacts	NO	NO
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	4	4
Number of rows loaded	4	4
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2 mm	2.0066 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A
Guideline	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.114 inch	0.114 inch
Terminal pitch	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	24	24
UL Flammability Code	94V-0	94V-0
Evacuation force-minimum value	.1946 N	.1946 N
Base Number Matches	1	1
