89285-630LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 89285-630LF

89285-630LF: DescriptionBoard Connector, 60 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, LEAD FREE; CategoryThe connector The connector; File Size148KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

89285-630LF Overview

Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, LEAD FREE

89285-630LF Parametric

Parameter Name	Attribute value
package instruction	LEAD FREE
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	TIN (100)
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	89285
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	60
UL Flammability Code	94V-0
Base Number Matches	1

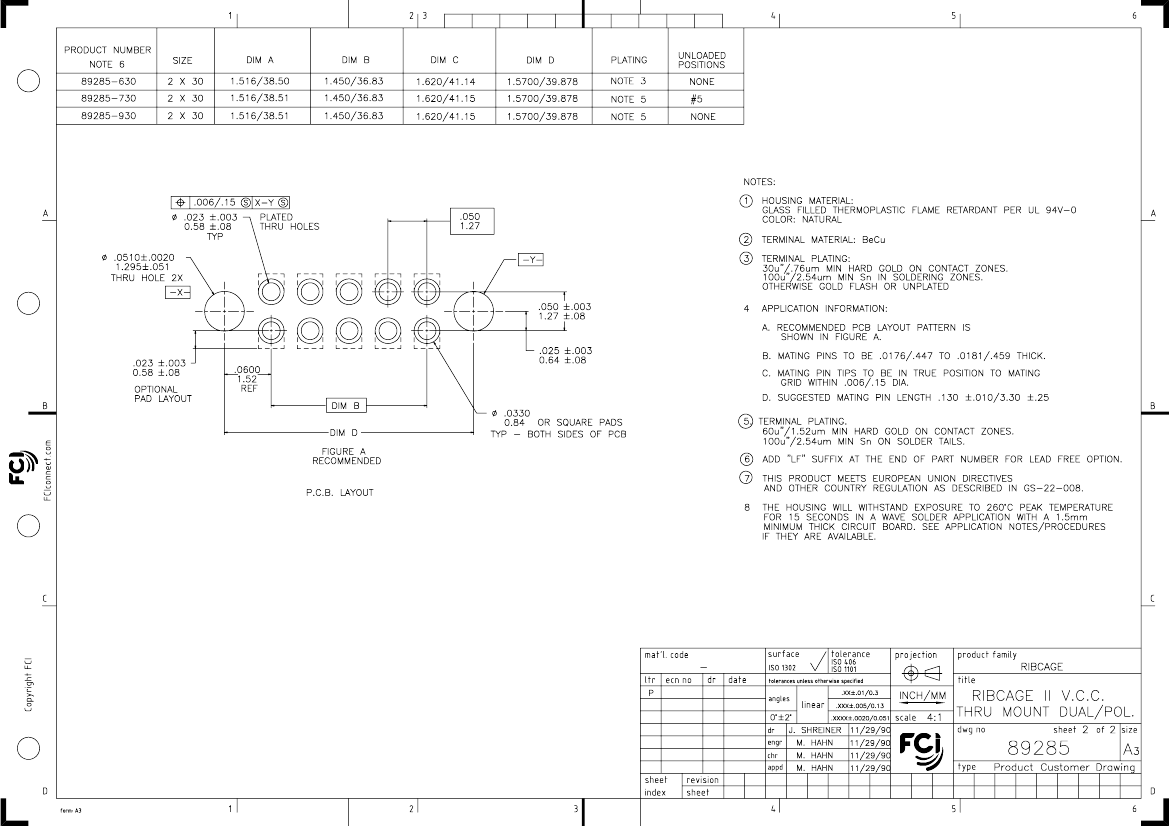

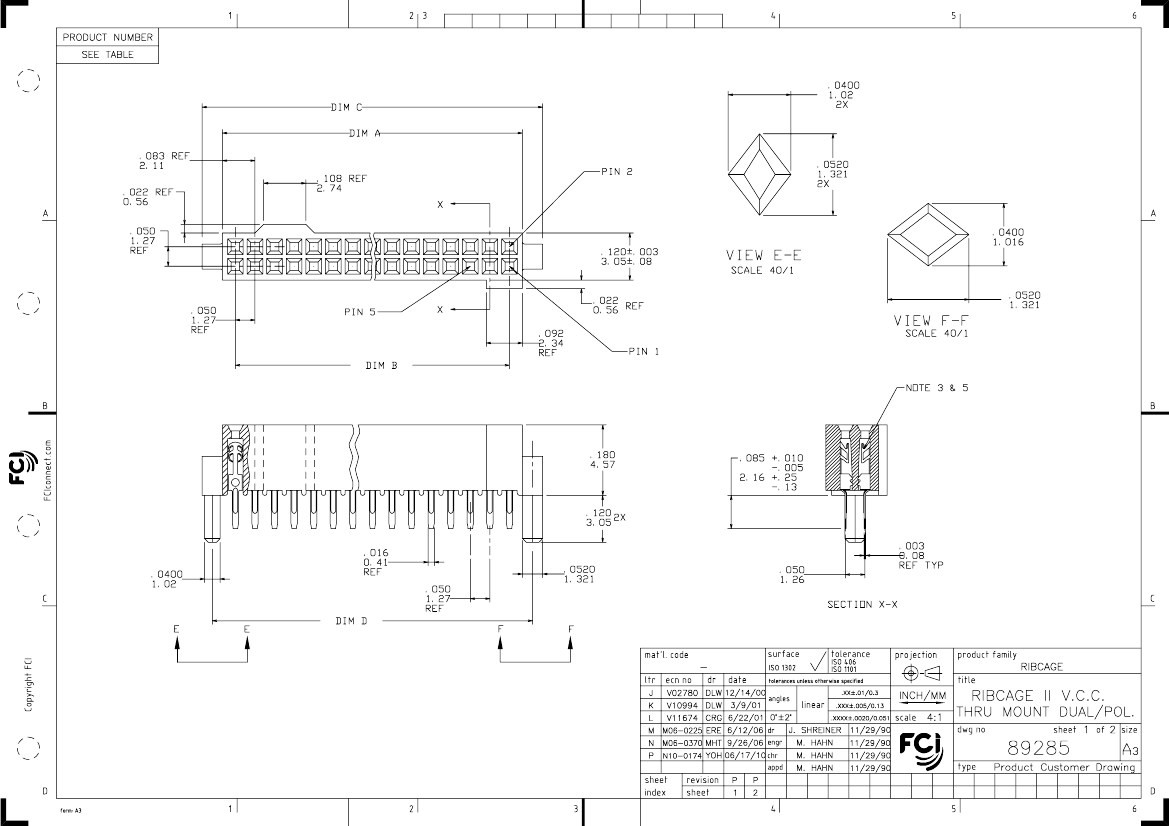

Preview

Download Datasheet

View All

PDM: Rev:P

STATUS:

Released

Printed: Jun 26, 2010

89285-630LF Related Products

	89285-630LF	89285-930LF	89285-930	89285-730LF	89285-730	89285-630
Description	Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, LEAD FREE	Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, LEAD FREE	Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, Solder Terminal	Board Connector, 59 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, LEAD FREE	Board Connector, 59 Contact(s), 2 Row(s), Female, Straight, Solder Terminal	Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, Solder Terminal
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)	GOLD (60)	GOLD (60)	GOLD (60)	GOLD (60)	GOLD (30)
Contact completed and terminated	TIN (100)	TIN (100)	TIN (100)	TIN (100)	TIN (100)	TIN (100)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	89285	89285	89285	89285	89285	89285
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	60	60	60	59	59	60
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1
