5962-8506401MQX datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> 5962-8506401MQX

5962-8506401MQX: DescriptionMicrocontroller, 8-Bit, MROM, 12MHz, CMOS, CDIP40, CERAMIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size736KB，27 Pages; ManufacturerTEMIC; Websitehttp://www.temic.de/

Download Datasheet Parametric Compare View All

5962-8506401MQX Overview

Microcontroller, 8-Bit, MROM, 12MHz, CMOS, CDIP40, CERAMIC, DIP-40

5962-8506401MQX Parametric

Parameter Name	Attribute value
package instruction	CERAMIC, DIP-40
Reach Compliance Code	unknown
Base Number Matches	1

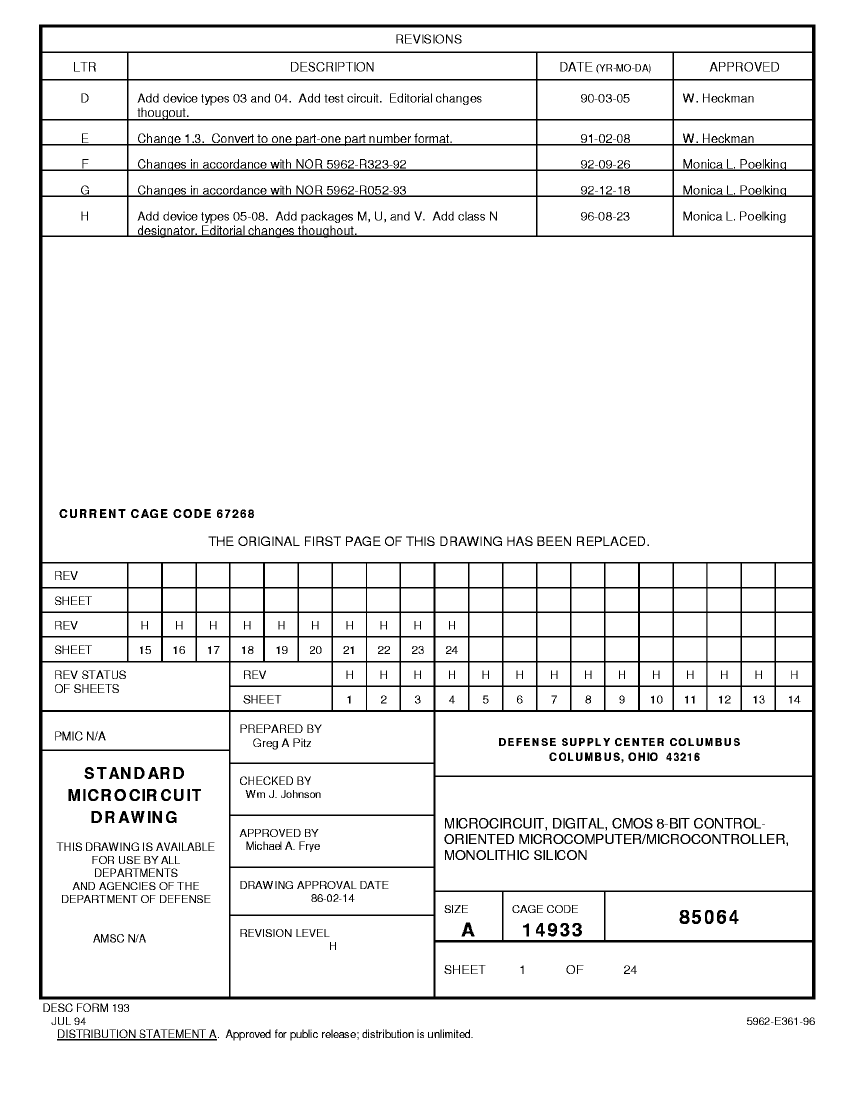

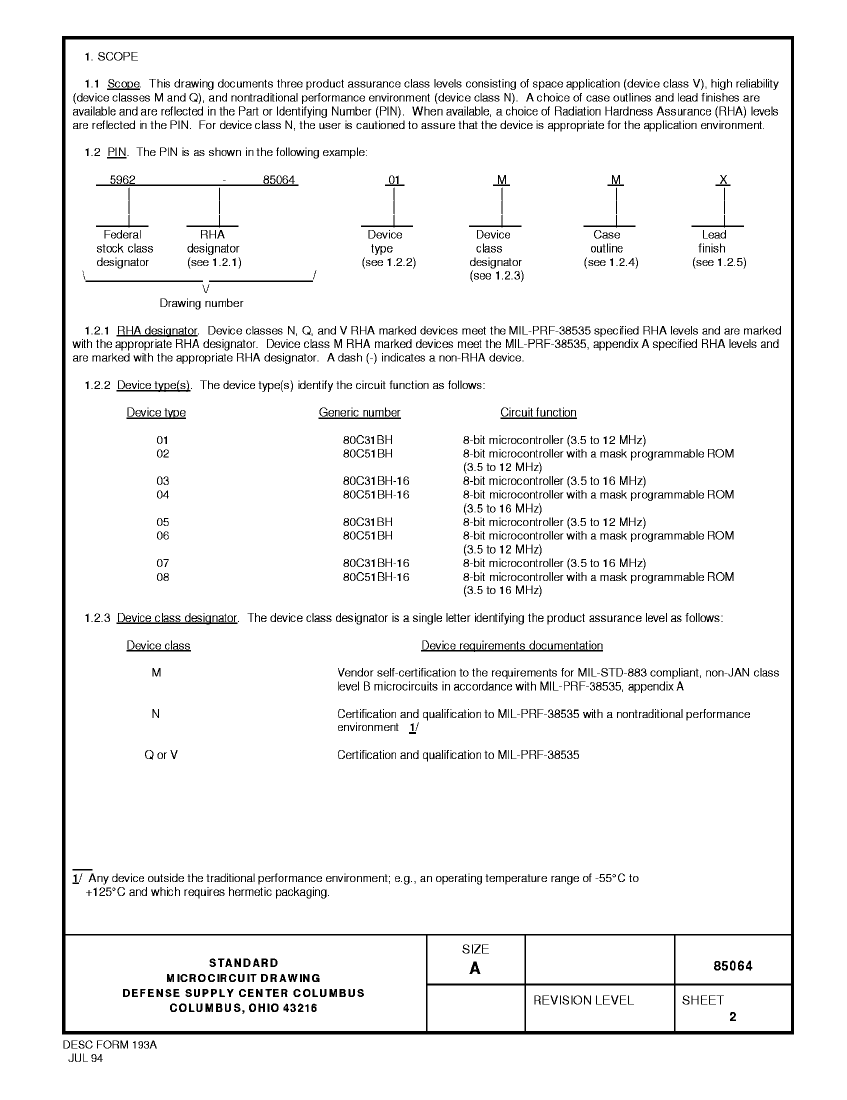

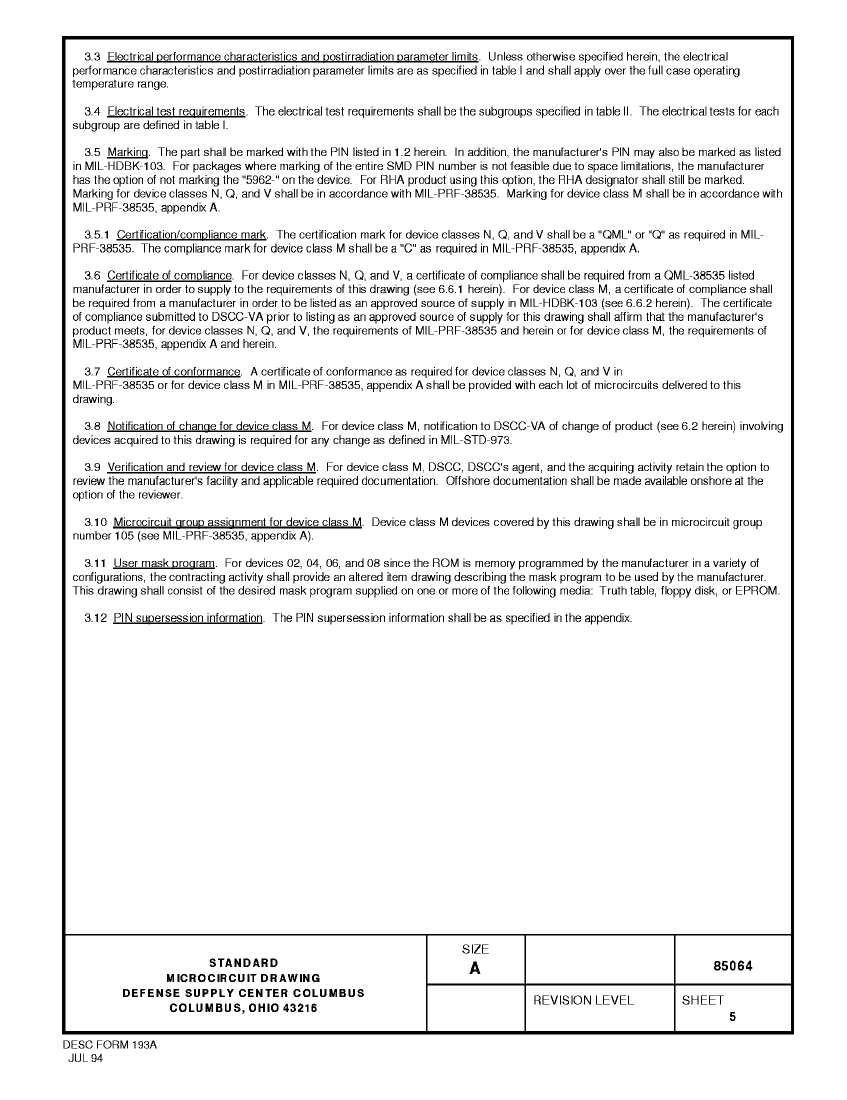

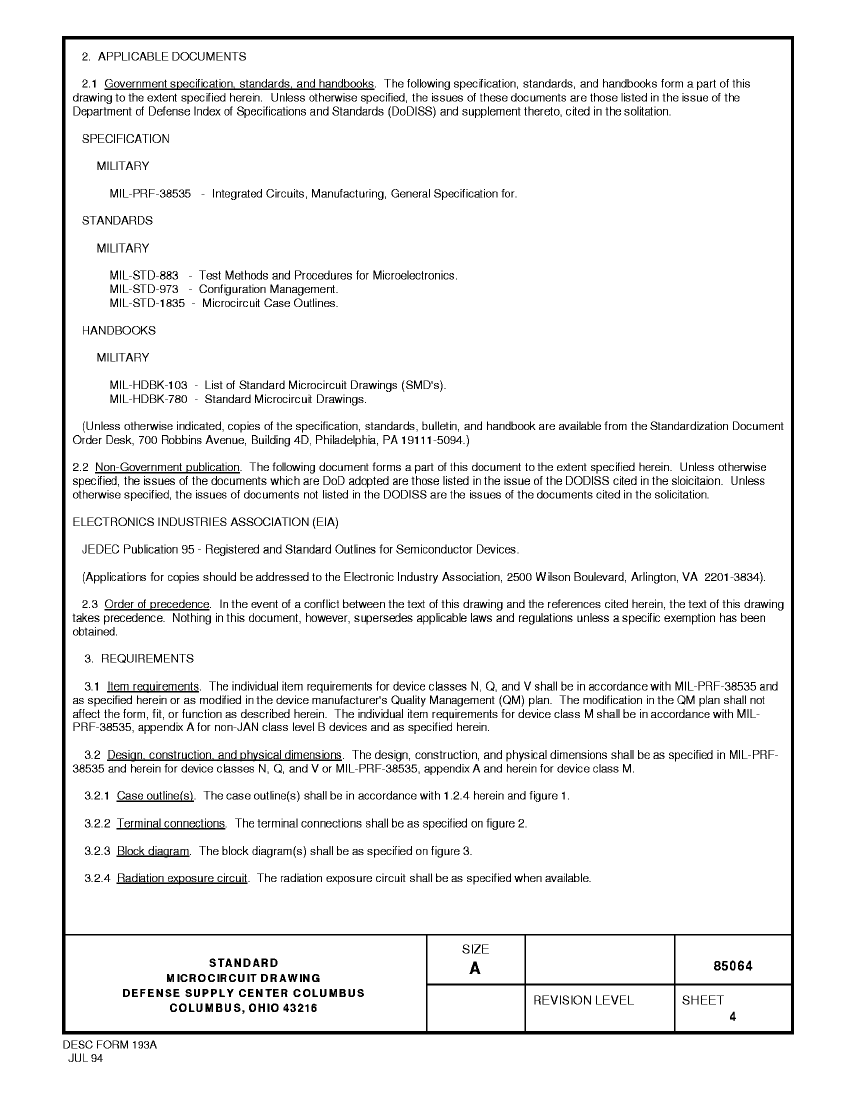

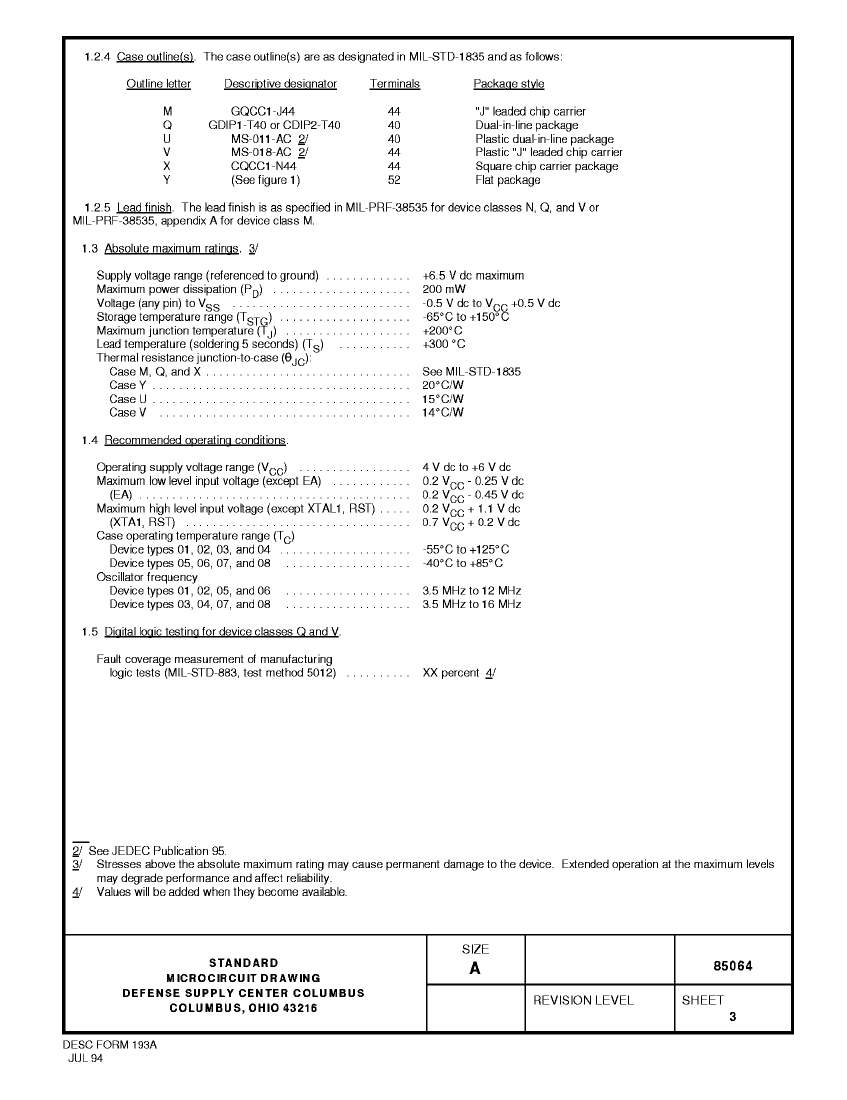

Preview

Download Datasheet

View All

5962-8506401MQX Related Products

	5962-8506401MQX	5962-8506403MQX	5962-8506404MQX	5962-8506402MQX
Description	Microcontroller, 8-Bit, MROM, 12MHz, CMOS, CDIP40, CERAMIC, DIP-40	Microcontroller, 8-Bit, MROM, 16MHz, CMOS, CDIP40, CERAMIC, DIP-40	Microcontroller, 8-Bit, MROM, 16MHz, CMOS, CDIP40, CERAMIC, DIP-40	Microcontroller, 8-Bit, MROM, 12MHz, CMOS, CDIP40, CERAMIC, DIP-40
package instruction	CERAMIC, DIP-40	CERAMIC, DIP-40	CERAMIC, DIP-40	CERAMIC, DIP-40
Reach Compliance Code	unknown	unknown	unknown	unknown
Base Number Matches	1	1	1	1
Has ADC	-	NO	NO	NO
Address bus width	-	16	16	16
bit size	-	8	8	8
maximum clock frequency	-	16 MHz	16 MHz	12 MHz
DAC channel	-	NO	NO	NO
DMA channel	-	NO	NO	NO
External data bus width	-	8	8	8
JESD-30 code	-	R-GDIP-T40	R-GDIP-T40	R-GDIP-T40
JESD-609 code	-	e0	e0	e0
Number of I/O lines	-	32	32	32
Number of terminals	-	40	40	40
Maximum operating temperature	-	125 °C	125 °C	125 °C
Minimum operating temperature	-	-55 °C	-55 °C	-55 °C
PWM channel	-	NO	NO	NO
Package body material	-	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	-	DIP	DIP	DIP
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	IN-LINE	IN-LINE	IN-LINE
Certification status	-	Not Qualified	Not Qualified	Not Qualified
ROM programmability	-	MROM	MROM	MROM
Filter level	-	MIL-STD-883	MIL-STD-883	MIL-STD-883
speed	-	16 MHz	16 MHz	12 MHz
Maximum supply voltage	-	6 V	6 V	6 V
Minimum supply voltage	-	4 V	4 V	4 V
Nominal supply voltage	-	5 V	5 V	5 V
surface mount	-	NO	NO	NO
technology	-	CMOS	CMOS	CMOS
Temperature level	-	MILITARY	MILITARY	MILITARY
Terminal surface	-	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	-	DUAL	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	-	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
