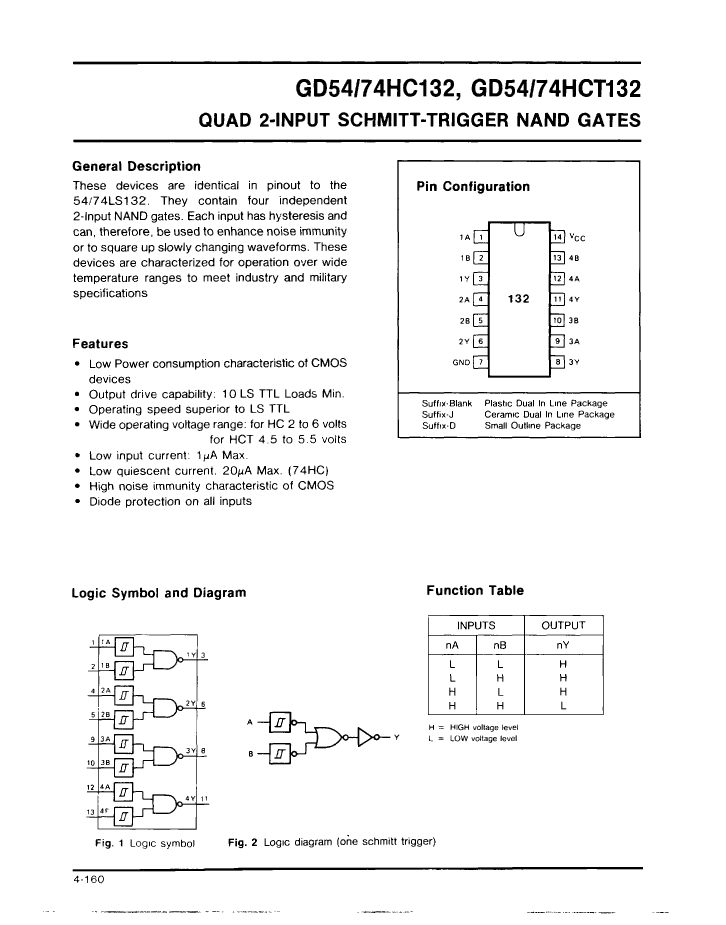

GD54HC132 Overview

NAND Gate, HC/UH Series, 4-Func, 2-Input, CMOS, PDIP14,

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
series	HC/UH
JESD-30 code	R-PDIP-T14
Load capacitance (CL)	50 pF
Logic integrated circuit type	NAND GATE
Number of functions	4
Number of entries	2
Number of terminals	14

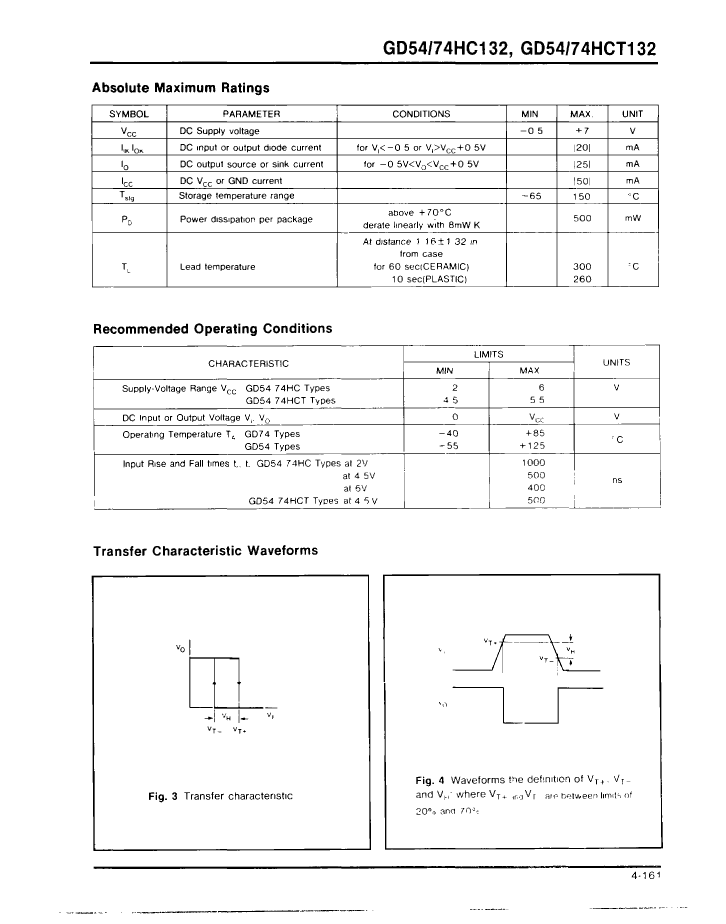

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE

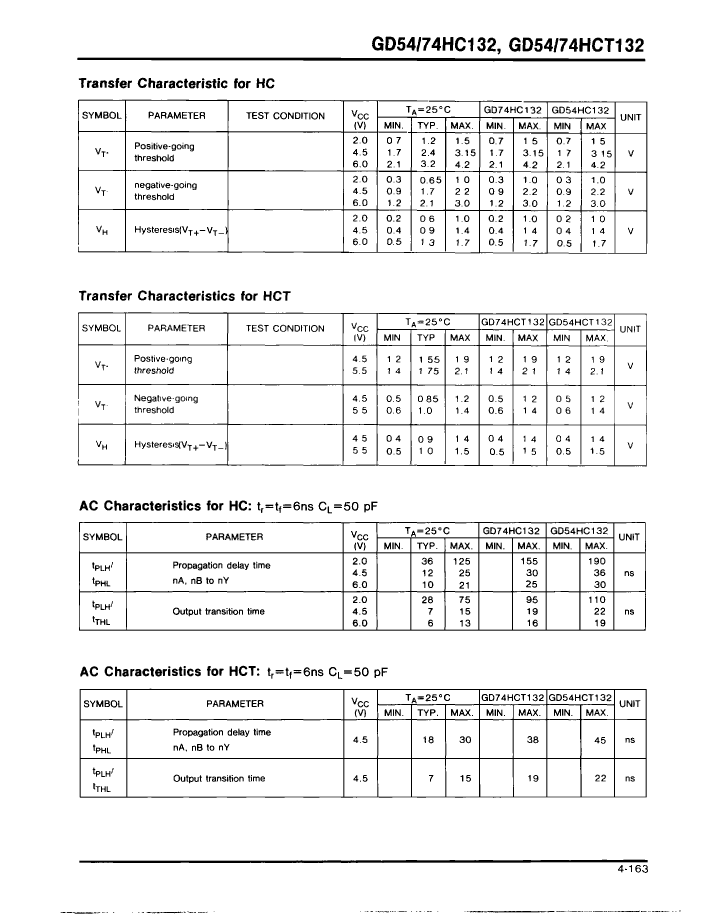

propagation delay (tpd)	36 ns
Certification status	Not Qualified

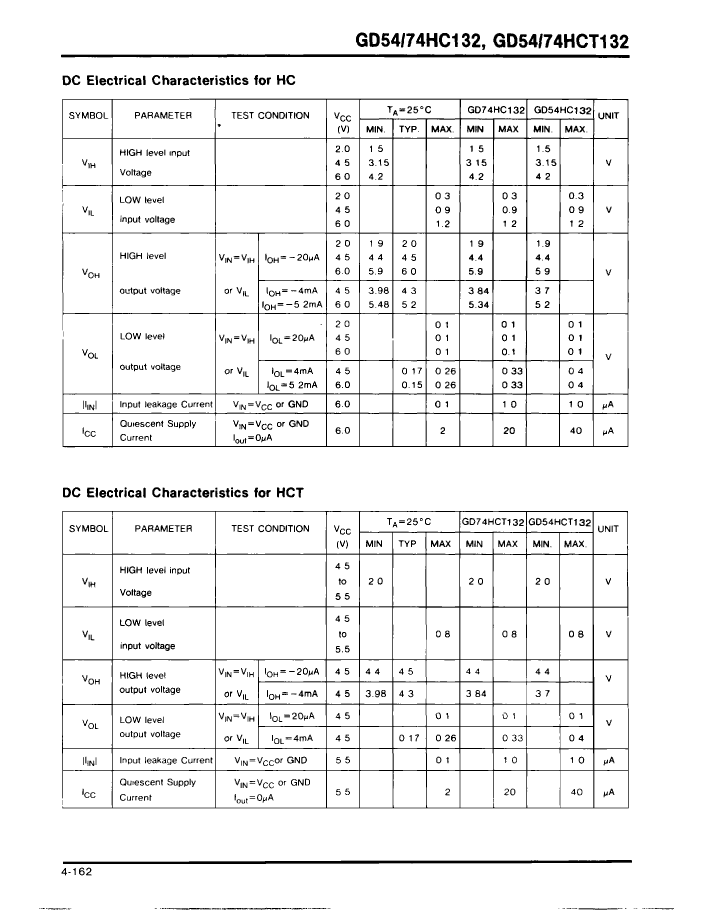

Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1
