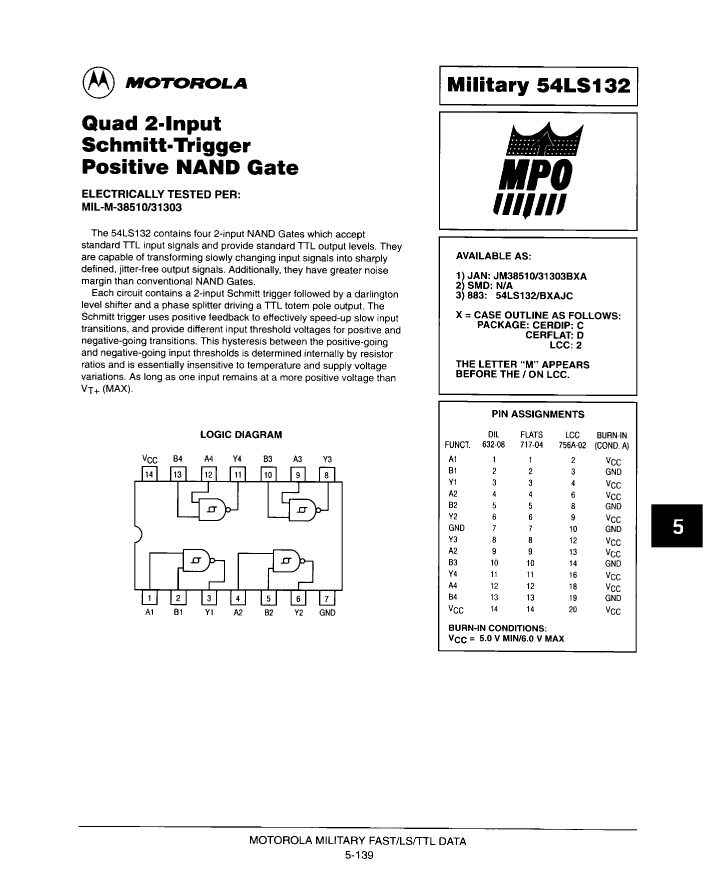

54LS132/BDAJC

Description
LS SERIES, QUAD 2-INPUT NAND GATE, CDFP14, CERAMIC, FP-14
Categorylogic    logic
File Size71KB,3 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

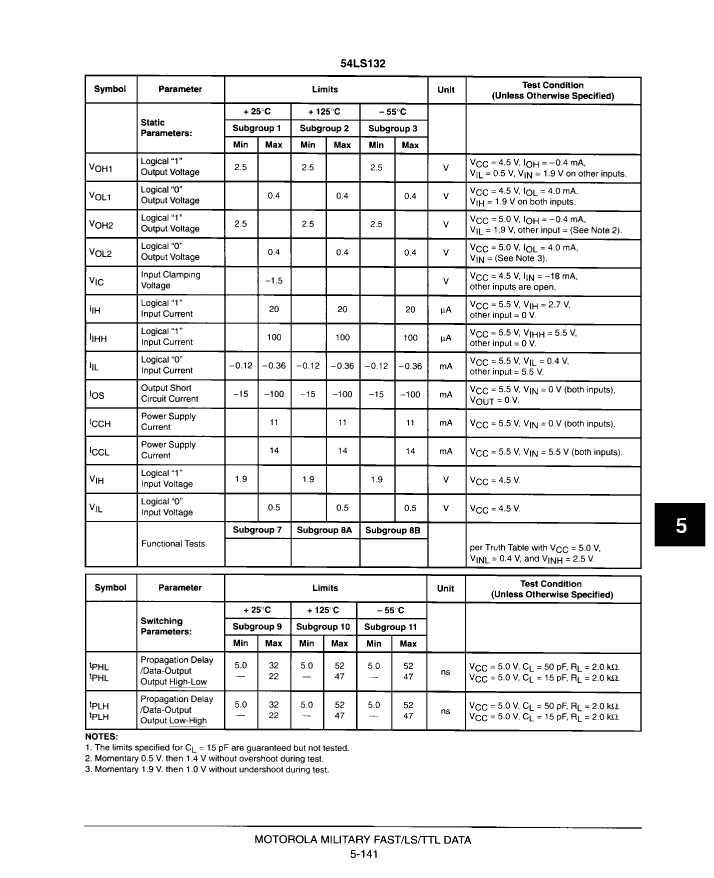

54LS132/BDAJC Overview

LS SERIES, QUAD 2-INPUT NAND GATE, CDFP14, CERAMIC, FP-14

54LS132/BDAJC Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMotorola ( NXP )
Parts packaging codeDFP
package instructionDFP, FL14,.3
Contacts14
Reach Compliance Codeunknown
Base Number Matches1

54LS132/BDAJC Related Products

54LS132/BDAJC 54LS132/BCAJC 54LS132M/B2AJC
Description LS SERIES, QUAD 2-INPUT NAND GATE, CDFP14, CERAMIC, FP-14 LS SERIES, QUAD 2-INPUT NAND GATE, CDIP14, CERDIP-14 LS SERIES, QUAD 2-INPUT NAND GATE, CQCC20, CERAMIC, LCC-20
Is it Rohs certified? incompatible incompatible incompatible
Maker Motorola ( NXP ) Motorola ( NXP ) Motorola ( NXP )
Parts packaging code DFP DIP QLCC
package instruction DFP, FL14,.3 DIP, DIP14,.3 QCCN, LCC20,.35SQ
Contacts 14 14 20
Reach Compliance Code unknown unknown unknown
Base Number Matches 1 1 1
series - LS LS
JESD-30 code - R-GDIP-T14 S-CQCC-N20
JESD-609 code - e0 e0
length - 19.495 mm 8.885 mm
Load capacitance (CL) - 15 pF 15 pF
Logic integrated circuit type - NAND GATE NAND GATE
MaximumI(ol) - 0.004 A 0.004 A
Number of functions - 4 4
Number of entries - 2 2
Number of terminals - 14 20
Maximum operating temperature - 125 °C 125 °C
Minimum operating temperature - -55 °C -55 °C
Package body material - CERAMIC, GLASS-SEALED CERAMIC, METAL-SEALED COFIRED
encapsulated code - DIP QCCN
Encapsulate equivalent code - DIP14,.3 LCC20,.35SQ
Package shape - RECTANGULAR SQUARE
Package form - IN-LINE CHIP CARRIER
Peak Reflow Temperature (Celsius) - NOT SPECIFIED NOT SPECIFIED
power supply - 5 V 5 V
Maximum supply current (ICC) - 14 mA 14 mA
Prop。Delay @ Nom-Sup - 22 ns 52 ns
propagation delay (tpd) - 47 ns 47 ns
Certification status - Not Qualified Not Qualified
Schmitt trigger - YES YES
Filter level - 38535Q/M;38534H;883B 38535Q/M;38534H;883B
Maximum seat height - 5.08 mm 1.9 mm
Maximum supply voltage (Vsup) - 5.5 V 5.5 V
Minimum supply voltage (Vsup) - 4.5 V 4.5 V
Nominal supply voltage (Vsup) - 5 V 5 V
surface mount - NO YES
technology - TTL TTL
Temperature level - MILITARY MILITARY
Terminal surface - Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form - THROUGH-HOLE NO LEAD
Terminal pitch - 2.54 mm 1.27 mm
Terminal location - DUAL QUAD
Maximum time at peak reflow temperature - NOT SPECIFIED NOT SPECIFIED
width - 7.62 mm 8.885 mm
