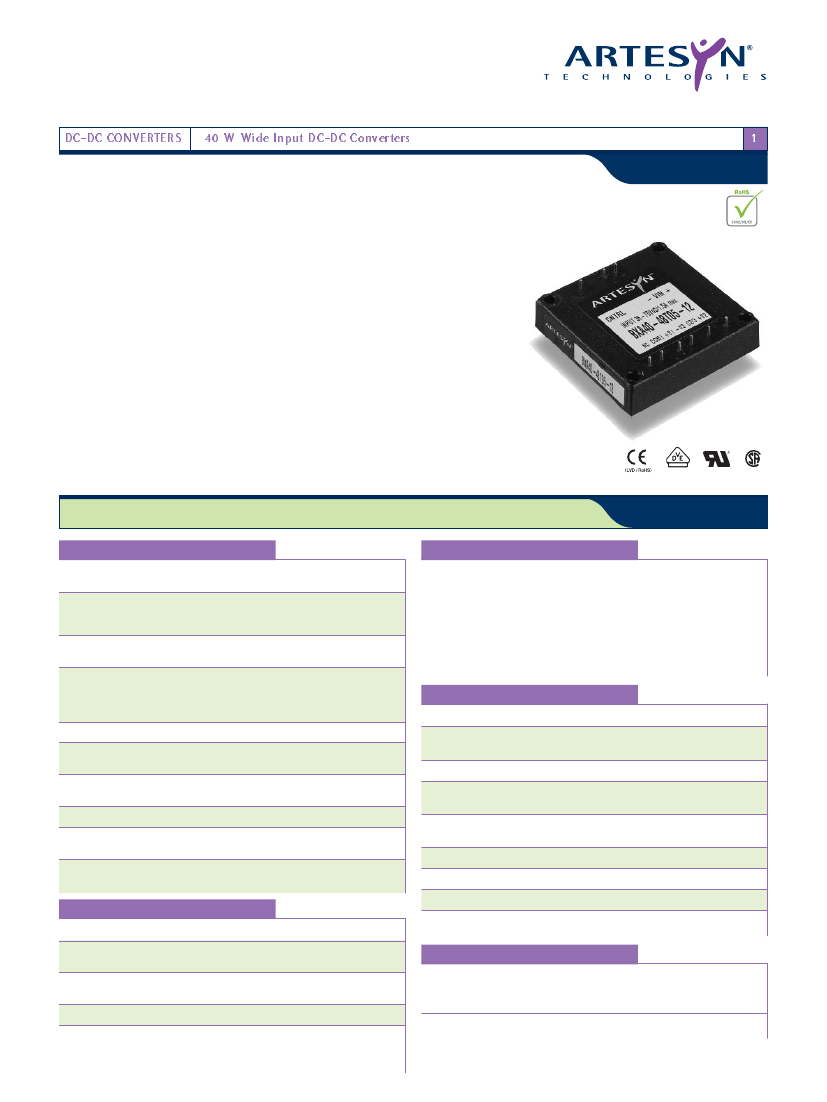

BXA40 Series
DC-DC CONVERTERS
Triple output
40 W Wide Input DC-DC Converters
1
•
Meets telecom power supply interface standard
ETS300-132-2
•
EN60950, CSA950 and UL1950 safety approvals
•
EN61000-4-2, -3, -4, -5, -6 immunity compliant
•
Fixed frequency operation at 400 kHz
•
MTBF in excess of 500,000 hours
•
Basic insulation system with 1500 Vdc isolation
•
Pin-compatible with NFC40 Series
•
Available RoHS compliant
The BXA40-48T05-12-MJ provides 40 Watts of output power, has been conceived as
an applications-specific range of dc-dc converters, specifically addressing
telecommunications, industrial electronics, test equipment, mobile telecommunications
and distributed power applications. The series offers a wide input voltage range, of
36 Vdc to 75 Vdc, and is available with a 5/±12 V triple output. The BXA40 series is
designed to meet ETSI telecoms interface standard ETS300-132-2. With safety
approval to IEC950 and basic insulation, the 48 Vddc model is ideal for
telecommunications applications. Other features include low output ripple, overvoltage
protection, short circuit protection and remote enable.
2 YEAR WARRANTY
All specifications are typical at nominal input, full load at 25 °C unless otherwise stated
SPECIFICATIONS
OUTPUT SPECIFICATIONS
Line regulation
(See Note 2)
Load regulation
(See Note 3)
Load cross regulation
(See Note 4)
Ripple and noise
(20 MHz bandwidth)
Main output
Auxiliary output
Main output
Auxiliary output
Main output
Aux. output
Main output
Auxiliary output
Temperature coefficient
Overvoltage protection
transorbs fitted
Short circuit protection
(See Note 5)
Transient response
Voltage accuracy
Minimum load
Main output
Auxiliary outputs
Main output
Auxiliary output
25% to 100% load
Main output
Auxiliary output
Main output
Auxiliary outputs
±0.5%
±2.0%
±1.0%
±3.0% typ.,
±5.0% max.
±1.0%
±3.0% typ., ±5.0% max.
50 mV pk-pk,
20 mV rms
100 mV pk-pk,
20 mV rms
±0.02%/°C
6.8 V (nom.)
16/20 V (nom.)
11 A
5A
4.0%
±1.0%
±3.0%
0.6 A
0.03 A/0.04 A
EMC CHARACTERISTICS
Conducted emissions
Radiated emissions
ESD air
ESD contact
Surge
Fast transients
Radiated immunity
Conducted immunity
EN55022, FCC part 15,
(See Notes 6, 9)
EN55022, FCC part 15
EN61000-4-2, level 3
EN61000-4-2, level 4
EN61000-4-5, level 3
EN61000-4-4, level 3
EN61000-4-3, level 3
EN61000-4-6, level 3
Level B
Level A
criteria 1
criteria 1
criteria 1
criteria 1
criteria 1
criteria 1
Perf.
Perf.
Perf.
Perf.
Perf.
Perf.
GENERAL SPECIFICATIONS
Efficiency
Isolation voltage
Switching frequency
Approvals and
standards (pending)
Case material
Material flammability
Weight
MTBF
MIL-HDBK-217F
Input/output
Basic insulation, input/case
Fixed
83%
1500 Vdc
1500 Vdc
400 kHz (typical)
EN60950, UL1950
CSA C22.2 No. 950
Aluminum substrate
with plastic case
UL94V-0
85 g typ. (3.0 oz)
500,000 hours
2.2 x 2.2 x 0.5 inches
55.9 x 55.9 x 12.7 mm
INPUT SPECIFICATIONS
Input voltage range
Reverse voltage
protection
Max. input rise and
fall time
Start-up time
Remote ON/OFF
Logic compatibility
ON
OFF
48 Vin nominal
External fuse
36-75 Vdc
(See Note 7)
5 V/ms
ETS300-132
30 ms typ.
CMOS/TTL
Open-circuit
<1 Vdc
Size
ENVIRONMENTAL SPECIFICATIONS
Thermal performance
Baseplate operating -40 °C to +105 °C
temperature
Non-operating
-55 °C to +105 °C
No air flow, no heatsink
No air flow, with heatsink
8.5 °C/W
7.2 °C/W
Thermal impedance
(See Note 8)
File Name: bxa40t.pdf Rev (02): 23 Aug 2005
BXA40 Series
DC-DC CONVERTERS
INPUT
VOLTAGE
36-75 Vdc
OUTPUT
VOLTAGE
5 V/±12 V
Triple output
40 W Wide Input DC-DC Converters
2
For the most current data and application support visit www.artesyn.com/powergroup/products.htm
OUTPUT
CURRENT (MAX.)
6 A/±0.4 A
INPUT
CURRENT
30 mA
(1)
TYPICAL
EFFICIENCY
83%
MODEL NUMBER
(10,11,12)
BXA40-48T05-12-MJ
Notes
1
2
3
Nominal line, at no load.
Nominal line to high line, nominal line to low line.
Load regulation:
Main output (V1): 25 to 100% with 25% to 100% balanced on auxiliaries.
Auxiliary outputs (V2 and V3): 25% to 100% balanced on all outputs.
4
Cross regulation:
Main output 100% load, auxiliary 100%, other auxiliary 25% to 100%.
Auxiliary outputs (V2 and V3): main output 100% load, auxiliary 100%,
other auxiliary 25% to 100% or main output 25%, auxiliary 25%, other
auxiliary 25% to 100%.
5
Short circuit protection, ≤ 1 minute on auxiliary outputs.
6
For EMI compliance to EN55022 level B please consult factory for details.
For EMI compliance to EN55022 level A, refer to BXA40 Design Note 101.
7
Reverse voltage protection, refer to BXA40 Design Note 101.
8
The maximum operating ambient temperature, without derating depends
on internal power dissipation and module efficiency and cooling method.
Download BXA40 Design Note 101 which provides detailed thermal
calculations and design-in hints from the Artesyn website.
9
It is suggested that an external filter capacitor be used. A 4 µF (or greater)
film capacitor such as: ITW Paktron Capstick series, part number
405K100CS4 4 µF/100 V is recommended, if filtering is not used. See
BXA40 Design Note 101.
10
The unit with the suffix ‘-M’ at the end of the model number is offered as
standard with metric threaded inserts (M3). To order a unit with imperial
threaded inserts (4-40 UNC) please remove the suffix ‘-M’ from the model
number. These inserts are used for bolting the unit to a
PCB and/or fixing heatsinks.
11
The ‘J’ suffix indicates that these parts are Pb-free
(RoHS 6/6) compliant. TSE RoHS 5/6 (non Pb-free)
compliant versions may be available on special request,
please contact your local sales representative for
details.
12
NOTICE: Some models do not support all options.
Please contact your local Artesyn representative or use
the on-line model number search tool at
http://www.artesyn.com/powergroup/products.htm to
find a suitable alternative.
PIN CONNECTIONS
PIN NUMBER
1
2
3
4
5
6
7
8
9
TRIPLE OUTPUT
+ Input
– Input
Control
+ Output (V2)
Common
- Output (V3)
+ Output (V1)
- Output (V1)
No Connection
0.15
(3.82)
1.90
(48.26)
1.25
(31.76)
0.60
(15.24)
0.2
(5.08)
0.019
(0.50)
3
0.043
±0.003(1.02 ±0.05)
Diameter Typ.
2
1
Metric (Suffix '-M'):
M3 Tap Thru. 4 places or
Imperial (No '-M' suffix) 4-
40 UNC (Optional)
0.256 (6.50) Diameter
Stand-off (4 Places)
9
8
7
6
5
4
0.2
(5.08)
1.80
(45.72)
1.90
(48.26)
2.20
±0.02
(55.90
±0.50)
0.50
(12.70)
0.15
(3.90)
0.3
(7.62)
0.1
(2.54)
0.05
(1.27)
0.15
(3.82)
International Safety Standard Approvals
VDE0805/EN60950/IEC950 File No. 14501-3336-7009
Licence No. 6296
UL1950 File No. E174104
CSA C22.2 No. 950 File No. LR41062C
0.6
(15.24)
0.8
0.5
(20.32)
(12.70)
2.20
±0.02
(55.90
±0.50)
BOTTOM VIEW
ALL DIMENSIONS IN INCHES (mm)
TOLERANCE :
±
0.004 (0.1)
(Unless otherwise specified)
Datasheet © Artesyn Technologies® 2005
The information and specifications contained in this datasheet are believed to be correct at time of publication. However, Artesyn Technologies accepts no responsibility for consequences arising
from printing errors or inaccuracies. Specifications are subject to change without notice. No rights under any patent accompany the sale of any such product(s) or information contained herein.
Please consult our website for the following items:
Design Note
www.artesyn.com
File Name: bxa40t.pdf Rev (02): 23 Aug 2005
