Totalizers electromechanic
Small impulse counters, adding
Display 5- or 7-digits, with/without reset button
F 503, F 513, F 523
Features
– Small impulse counter
– Adding
– Display 5- or 7-digits
– With or without reset button

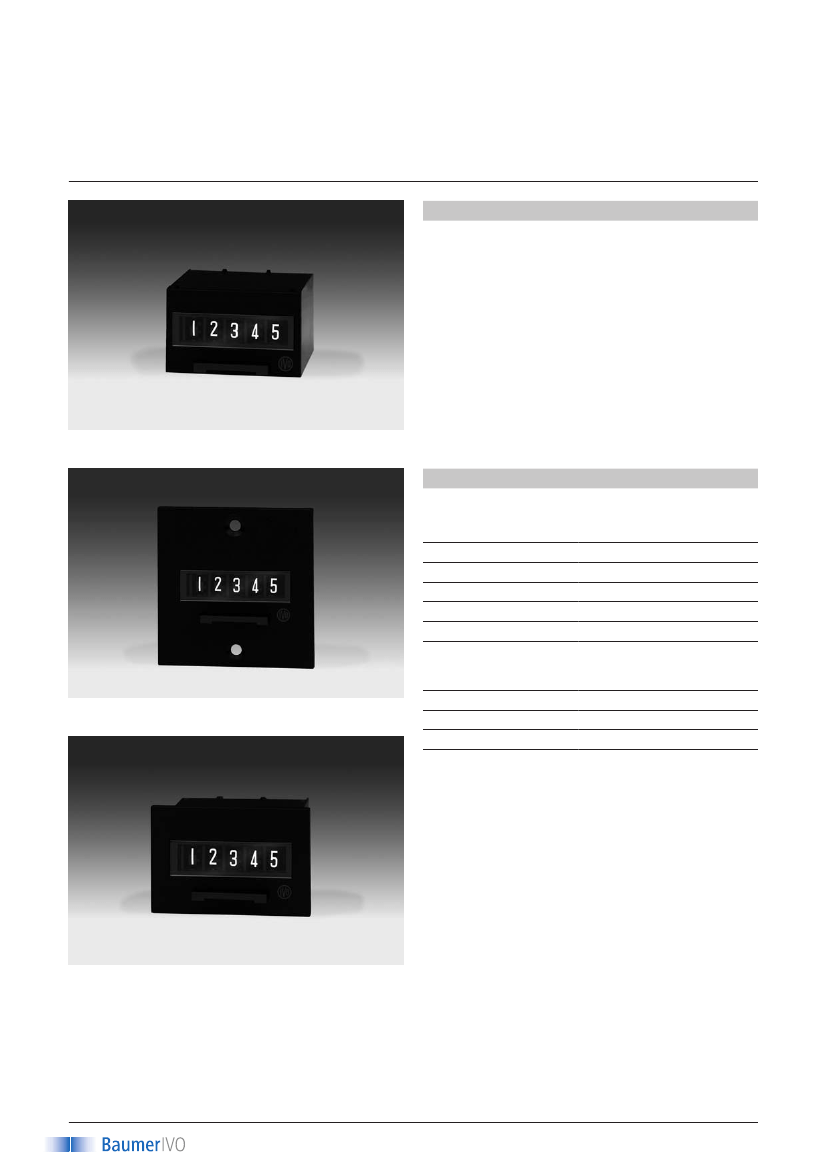

F 503 - Center screw mount at rear
Technical data - electrical ratings
Voltage supply
24/110 VAC ±10 % (50/60 Hz)
230 VAC +6/-10 % (50/60 Hz)
6/12/24 VDC ±10 %
<48 %
50 / 60 Hz
1.8 W, 2 VA
1:1
10 million impulses
Protection class II
Overvoltage category II
Pollution degree 2
DIN EN 61000-6-4
DIN EN 61000-6-2
CE conform, UL/cUL
Subject to modification in technic and design. Errors and omissions excepted.
Ripple residue
Nominal frequency
Power consumption
Pulse ratio
Service life
Standard
DIN EN 61010-1
F 513 - Front panel with screw mount
Emitted interference
Interference immunity
Approvals
F 523 - Front panel with spring clip
1
www.baumerivo.com
30/10/2008
Small impulse counters, adding
Display 5- or 7-digits, with/without reset button
Totalizers electromechanic
F 503, F 513, F 523
Technical data - mechanical design
Display
Number of digits
Digit height
Count mode
Step-by-step switching
Measuring range
Reset
Operating temperature
Storing temperature
Relative humidity
Protection DIN EN 60529
Housing type
E-connection
Weight approx.
Material
F 503
Mounting
Dimensions W x H x L
Cutout dimensions
Installation depth
F 513
Mounting
Dimensions W x H x L
Cutout dimensions
Installation depth
F 523
Mounting
Dimensions W x H x L
Cutout dimensions
Installation depth
Front panel with spring clips
42 x 28 x 43 mm
37 x 23 mm
43 mm
Front panel with 2 screws
45.7 x 45.7 x 43 mm
37 x 23 mm
43 mm
Subject to modification in technic and design. Errors and omissions excepted.
Connection diagram
-(+)
Voltage
+(-)
Encoder
Back opinion
9 11
Litz connection
White numbers on black
5-digits with reset button
7-digits without reset button
4 mm
1 impulse = 1 count
Adding in 2 half steps
99 999 and 9 999 999
Manual by reset button
0...+60 °C
-20...+70 °C
IP 41
Built-in housing
Stranded wires, 300 mm long
50 g
Housing: Noryl PPO, black
Rear center screw mount
36 x 22 x 45 mm
36 x 22 mm
55 mm
Trigger level
Features
80 % non-condensing
11
3.5
14
18
3
19.5
Alignment pin 0.5 mm high
Voltage DC
10 pulses/s
1.8 W
50 ms
50 ms
100 %
7.5
15
Voltage AC
10 pulses/s
2 VA
100 ms
100 ms
100 %
Max. counting speed
Power
Min. pulse duration
Min. pulse interval
Switch on time (at 25 °C)
2
www.baumerivo.com
30/10/2008
Totalizers electromechanic
Small impulse counters, adding
Display 5- or 7-digits, with/without reset button
F 503, F 513, F 523
Part number
Center screw mount
F 503.
Display
C
7-digits 9 999 999
A
5-digits 99 999
A1
A2
A3
A5
A8
A9
030B
010A
Voltage / connection
6 VDC / Stranded wire 300 mm
12 VDC / Stranded wire 300 mm
24 VDC / Stranded wire 300 mm
24 VAC / Stranded wire 300 mm
110 VAC / Stranded wire 300 mm
230 VAC / Stranded wire 300 mm
030B
010A
A1
A2
A3
A5
A8
A9
Front panel with screw mount
F 513.
Display
C
7-digits 9 999 999
A
5-digits 99 999
Voltage / connection
6 VDC / Stranded wire 300 mm
12 VDC / Stranded wire 300 mm
24 VDC / Stranded wire 300 mm
24 VAC / Stranded wire 300 mm
110 VAC / Stranded wire 300 mm
230 VAC / Stranded wire 300 mm
Reset
Without reset button
With reset button
Reset
Without reset button
With reset button
Front panel with spring clips mount
F 523.
Display
C
7-digits 9 999 999
A
5-digits 99 999
A1
A2
A3
A5
A8
A9
030B
010A
Voltage / connection
6 VDC / Stranded wire 300 mm
12 VDC / Stranded wire 300 mm
24 VDC / Stranded wire 300 mm
24 VAC / Stranded wire 300 mm
110 VAC / Stranded wire 300 mm
230 VAC / Stranded wire 300 mm
Reset
Without reset button
With reset button
3
www.baumerivo.com
30/10/2008
Subject to modification in technic and design. Errors and omissions excepted.
Small impulse counters, adding
Display 5- or 7-digits, with/without reset button
Totalizers electromechanic
F 503, F 513, F 523
Dimensions
F 503 with reset button, 5-digits
36
F 503 without reset button, 7-digits
36
22
45
55
22
45
55
F 513 without reset button, 7-digits
45.7
F 513 with reset button, 5-digits
45.7
35.55
45.7
43
2
43
F 523 without reset button, 7-digits
42
35.55
45.7
2
F 523 with reset button, 5-digits
42
28
28
3
43
2
43
3
2
Subject to modification in technic and design. Errors and omissions excepted.
4
www.baumerivo.com
30/10/2008
