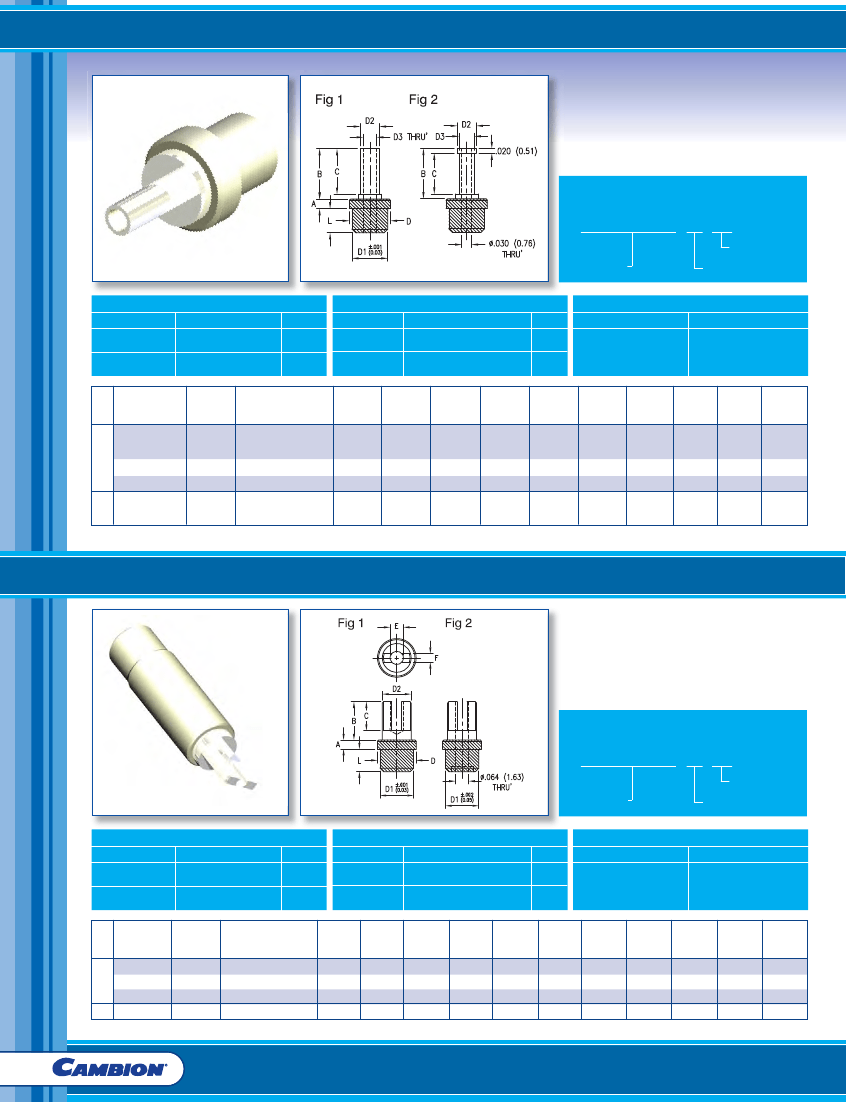

SOLDER TERMINALS - PTFE INSULATED, PRESS MOUNT

Dimensions in inches (mm)

See page 91 for Mounting Instructions

How to order code

571 - 4XXX - XX - XX - 19

Insulator Colour

Basic Part No.

Terminal Finish

Material Code Table

Component

Insulator

Terminal

Fig.

Basic Part

No.

571-4152 -01

-02

571-4193 -01

571-4240 -01

571-4153 -01

-02

Material

PTFE

Brass

L

RoHS

✓

Board

Thickness

Finish Code Table

Dash No.

Terminal Finish

-01

-05

A

B

Silver

Electro-Solder

C

D

RoHS

✓

X

D1

Insulation Colour Code Table

Dash No.

-19

Colour

White

D2

D3

1

2

.060 (1.52)

.100 (2.54)

.110 (2.79)

.060 (1.52)

.100 (2.54)

.016 (.041) only

.031 (0.79) to .062 (1.57)

.031 (0.79) to .071 (1.80)

.016 (.041) only

.031 (0.79) to .062 (1.57)

.040 (1.02) .125 (3.18) .105 (2.67) .125 (3.18) .094 (2.39) .040 (1.02) .030 (0.76)

.050 (1.27) .207 (5.26) .187 (4.75) .172 (4.37) .149 (3.78) .085 (2.16) .064 (1.63)

.050 (1.27) .207 (5.26) .187 (4.75) .218 (5.54) .172 (4.37) .040 (1.02) .030 (0.76)

.040 (1.02) .207 (5.26) .167 (4.24) .125 (3.18) .094 (2.39) .080 (2.03) .040 (1.02)

Mtg. Hole Capacitance Flashover

Diameter

(pF)

VRMS at

Sea Level

.083 (2.11) 0.5

1500

0.6

2500

.136 (3.45) 0.7

3000

.158 (4.01) 0.5

3500

.083 (2.11) 0.5

2000

0.6

1500

Other colours available, consult factory.

SOLDER TERMINALS - PTFE INSULATED, PRESS MOUNT

Dimensions in inches (mm)

See page 91 for Mounting Instructions

How to order code

571 - 4XXX - 01 - XX - 19

Insulator Colour

Basic Part No.

Terminal Finish

Material Code Table

Component

Insulator

Terminal

Fig. Basic Part

No.

1

2

571-4093

571-4121

571-4123

571-4132

-01

L

Material

PTFE

Brass

Board

Thickness

RoHS

✓

Finish Code Table

Dash No.

Terminal Finish

-01

-05

A

.400 (10.16)

.800 (20.32)

.062 (1.57)

B

.203 (5.16)

.218 (5.54)

C

.161 (4.09)

.156 (3.96)

Silver

Electro-Solder

D

.188 (4.78)

.250 (6.35)

D1

.172 (4.37)

.216 (5.49)

RoHS

✓

X

D2

.148 (3.76)

.156 (3.96)

Insulation Colour Code Table

Dash No.

-19

Colour

White

E

.046 (1.17)

.078 (1.98)

-

F

.030 (0.76)

.046 (1.17)

.040 (1.02)

.150 (3.81)

.188 (4.78)

.220 (5.59)

.031 (0.79) to .110 (2.79)

.031 (0.79) to .148 (3.76)

.062 (1.57) to .125 (3.18)

Mtg. Hole Capacitance Flashover

Diameter

(pF)

VRMS at

Sea Level

.158 (4.01)

0.6

10000

.203 (5.16)

0.3

13000

.203 (5.16)

0.3

13000

.203 (5.16)

0.5

2800

Other colours available, consult factory.
