9033-75/50 Overview

Fixed Attenuator, 0MHz Min, 1000MHz Max, ROHS COMPLIANT PACKAGE

9033-75/50 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cobham PLC
Reach Compliance Code	unknown
Other features	BNC-F; BNC-M, I/P POWER-MAX(PEAK)=250W
Nominal attenuation	5.7 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	30 dBm
Maximum operating frequency	1000 MHz
Minimum operating frequency
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.2
Base Number Matches	1

Preview

Download Datasheet

View All

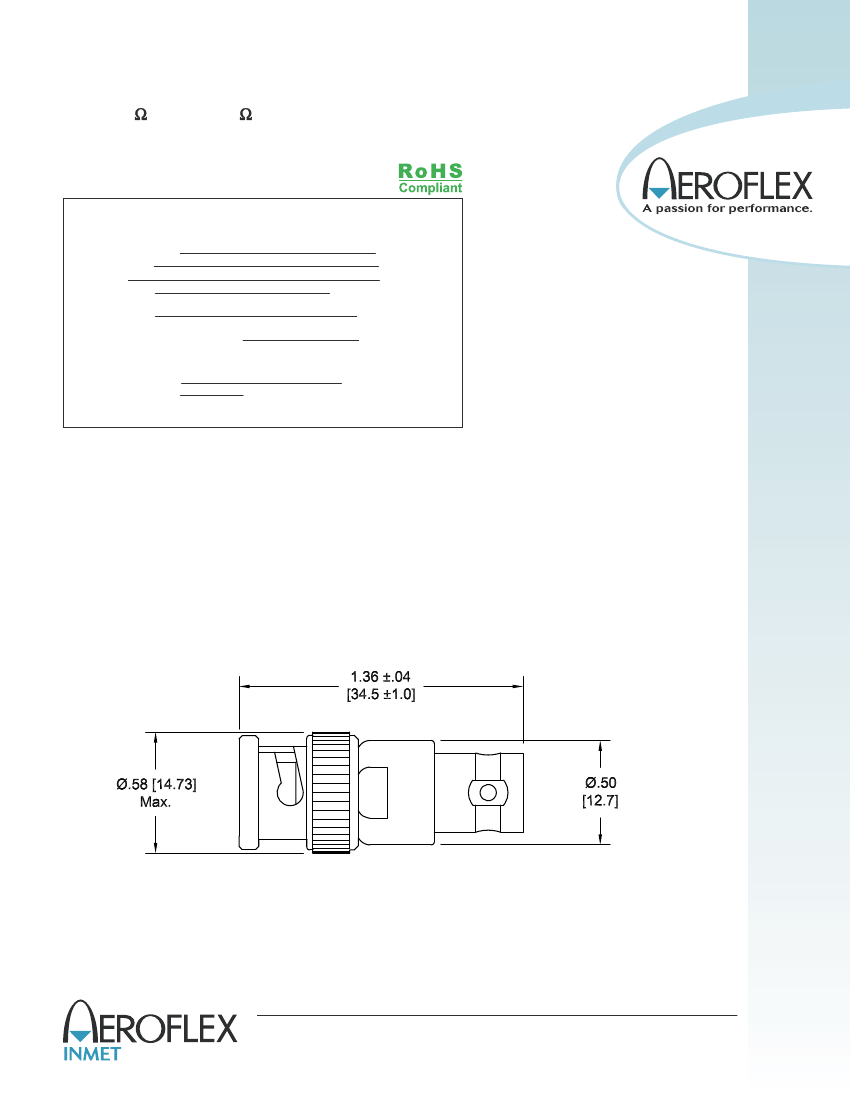

IMPEDANCE MATCHING PADS

BNC (50

) / BNC (75

) DC - 1 GHz, 5.7 dB

SPECIFICATIONS:

Electrical:

Frequency Range

Attenuation

VSWR

Input Power

Peak Power

Models: 9033-50/75 & 9033-75/50

DC - 1 GHz

5.7 ±0.5 dB

1.20:1 Max.

1 Watt Avg @ +25°C

Derated Linearly to 0.25 Watts @ +85

(5uSec Pulse, .05% Duty Cycle)

250 Watts Max.

Operating Temperature Range

-20°C to +85°C

Mechanical:

BNC Connectors

Center Contacts

Nickel Plated Brass

Gold Plated Beryllium Copper or Brass

Model Number:

9033-50/75

BNC Male 75 Ohm / BNC Female 50 Ohm

Model Number:

9033-75/50

BNC Male 50 Ohm / BNC Female 75 Ohm

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

9033-50_75: REV G

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex.com/inmet • inmetsales@aeroflex.com

9033-75/50 Related Products

	9033-75/50	9033-50/75
Description	Fixed Attenuator, 0MHz Min, 1000MHz Max, ROHS COMPLIANT PACKAGE	Fixed Attenuator, 0MHz Min, 1000MHz Max, ROHS COMPLIANT PACKAGE
Maker	Cobham PLC	Cobham PLC
Reach Compliance Code	unknown	unknown
Other features	BNC-F; BNC-M, I/P POWER-MAX(PEAK)=250W	BNC-F; BNC-M, I/P POWER-MAX(PEAK)=250W
Nominal attenuation	5.7 dB	5.7 dB
Characteristic impedance	50 Ω	50 Ω
structure	COAXIAL	COAXIAL
Maximum input power (CW)	30 dBm	30 dBm
Maximum operating frequency	1000 MHz	1000 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C
RF/Microwave Device Types	FIXED ATTENUATOR	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.2	1.2
Base Number Matches	1	1
