F1892CAD600: Description90 A, 600 V, SILICON, RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size668KB，4 Pages; ManufacturerCrydom; Websitehttp://www.crydom.com/en/index.shtml; Environmental Compliance

Download Datasheet Parametric View All

F1892CAD600 Overview

90 A, 600 V, SILICON, RECTIFIER DIODE

F1892CAD600 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	MODULE
package instruction	R-XUFM-X3
Contacts	3
Reach Compliance Code	compli
Other features	UL RECOGNIZED
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.4 V
JESD-30 code	R-XUFM-X3
JESD-609 code	e3/e4
Maximum non-repetitive peak forward current	1950 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum output current	90 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	600 V
Maximum reverse current	20000 µA
Reverse test voltage	600 V
surface mount	NO
Terminal surface	TIN/SILVER
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

F18 Series

•

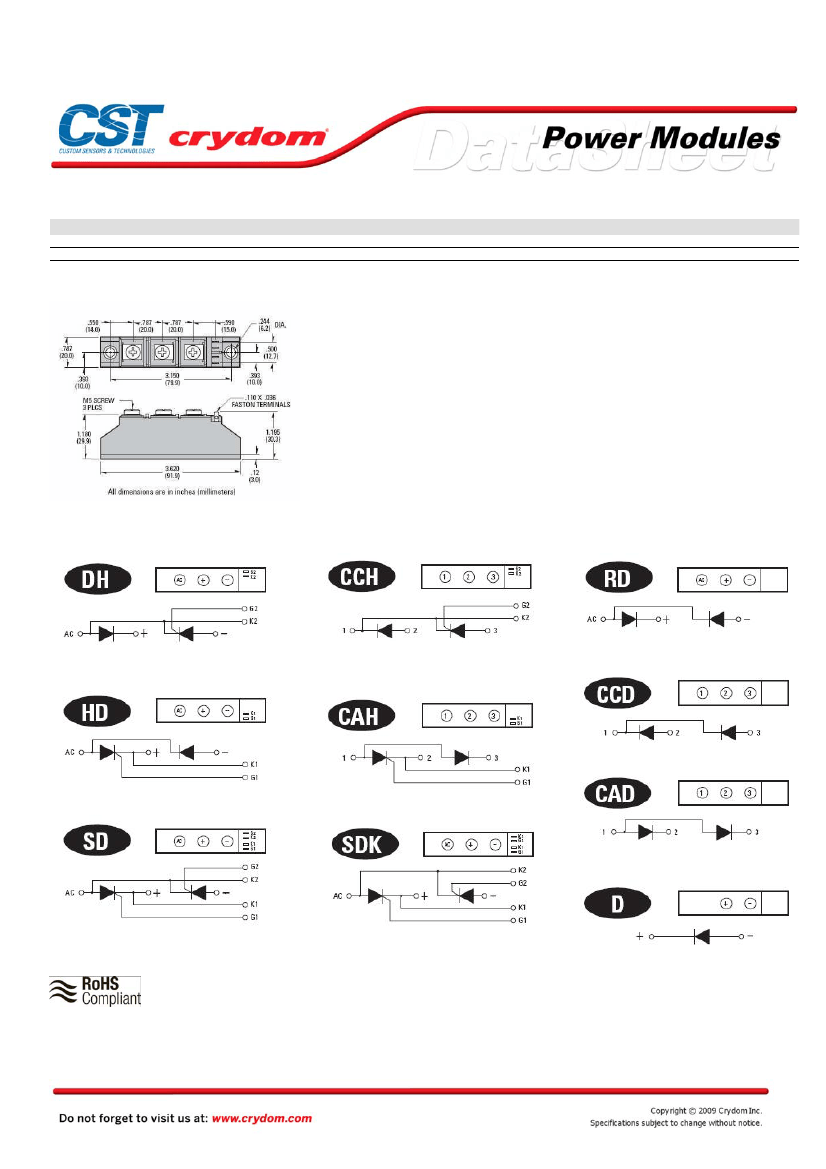

Industry Standard Package and Circuits

•

Power Control Building Blocks

• Nine Circuits to Chose from

AVAILABLE OPTIONS

ELECTRICAL SPECIFICATIONS

Description

Maximum DC Output Current (Tc = 85°C)

Maximum Voltage Drop @ Amps Peak

Operating Junction Temperature Range

Critical Rate of Rise of On-State Current @ TJ=125°C [A/µs]

Critical Rate of Rise of Off-State Voltage [V/µs]

Symbol

I

D

V

F

T

J

di/dt

dv/dt

27

25 A

1.55V @ 75 A

-40 - 125°C

100

1000

42

40 A

1.4V @ 120 A

-40 - 125°C

100

1000

57

55 A

1.4V @ 165 A

-40 - 125°C

100

1000

400 (120 VAC)

600 (240 VAC)

800 (280 VAC)

1200 (480 VAC)

1400 (530 VAC)

1600 (600 VAC)

1500

9350

150

3.0

0.5

5.0

0.25

2500

92

90 A

1.4V @ 270 A

-40 - 125°C

100

1000

107 (2)

105 A

1.65V @ 300 A

-40 - 125°C

100

1000

Repetitive Peak Reverse Voltage (AC Line Nominal) [Vpk]

V

RRM

Maximum Non-Repetitive Surge Current (1/2 Cycle, 60 Hz) [A]

Maximum I²T for Fusing (t=8.3ms) [A²sec]

Minimum Required Gate Current to Trigger @ 25°C [mA]

Minimum Required Gate Voltage to Trigger @ 25°C [V]

Average Gate Power [W]

Maximum Peak Reverse Gate Voltage [V]

Maximum Thermal Resistance, Junction to Ceramic Base per

Chip [°C/W]

Isolation Voltage [Vrms]

I

TSM

IT

I

GT

V

GT

P

G(AV)

V

GM

R

JC

V

ISOL

2

400

670

150

3.0

0.5

5.0

0.4

2500

1000

4150

150

3.0

0.5

5.0

0.28

2500

1950

15800

150

3.0

0.5

5.0

0.14

2500

2250

25000

150

3.0

0.5

5.0

0.135

2500
