D25S91C4PX3FLF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> D25S91C4PX3FLF

D25S91C4PX3FLF: DescriptionD Subminiature Connector, 25 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, #4-40, ROHS COMPLIANT; CategoryThe connector The connector; File Size102KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

D25S91C4PX3FLF Overview

D Subminiature Connector, 25 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, #4-40, ROHS COMPLIANT

D25S91C4PX3FLF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
body width	0.494 inch
subject depth	0.236 inch
body length	2.088 inch
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	MATTE TIN OVER NICKEL
Contact point gender	FEMALE
contact mode	STAGGERED
Contact style	RND PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	D
Plug contact pitch	0.108 inch
Match contact row spacing	0.112 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED INSERT
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Housing size	3/B
Terminal length	0.118 inch
Terminal pitch	2.7432 mm
Termination type	PRESS FIT
Total number of contacts	25
UL Flammability Code	94V-0
Base Number Matches	1

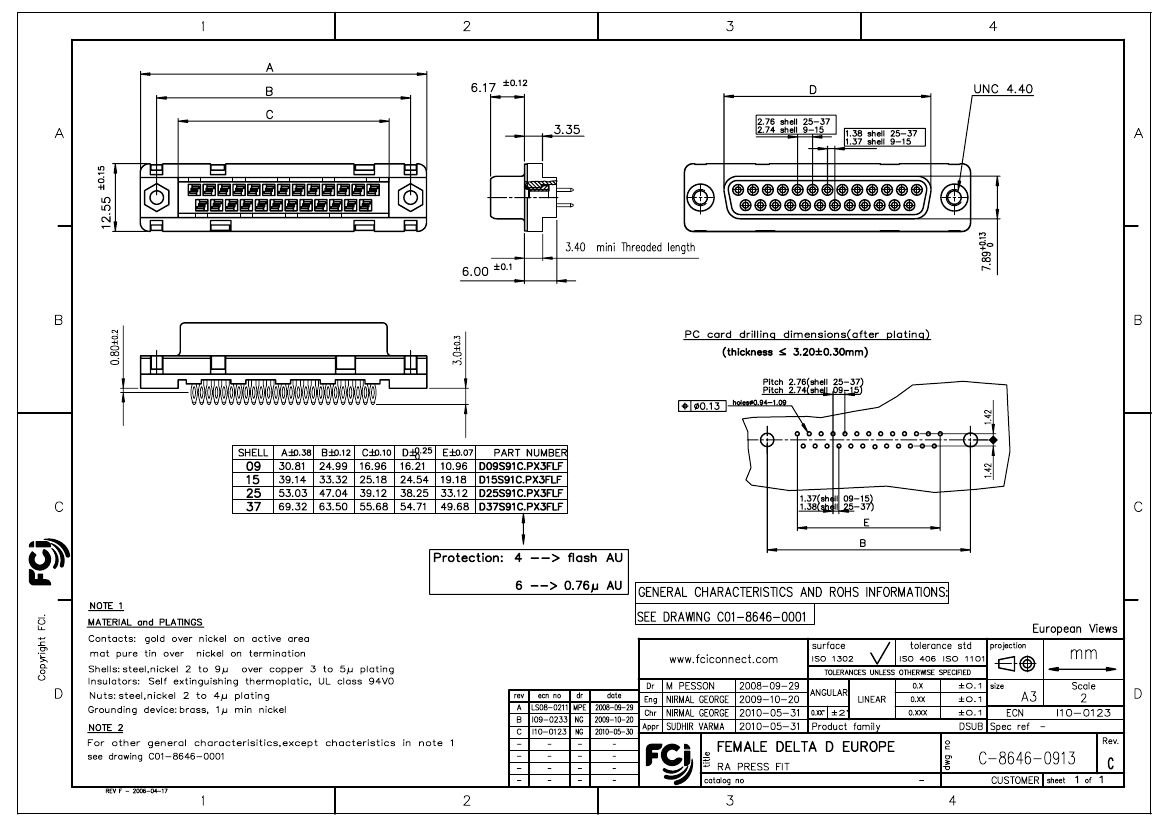

Preview

Download Datasheet

View All

PDM: Rev:C

STATUS:

Released

Printed: Jan 21, 2011

D25S91C4PX3FLF Related Products

	D25S91C4PX3FLF	D15S91C4PX3FLF	D25S91C6PX3FLF	D37S91C4PX3FLF
Description	D Subminiature Connector, 25 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, #4-40, ROHS COMPLIANT	D Subminiature Connector, 15 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, #4-40, ROHS COMPLIANT	D Subminiature Connector, 25 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, #4-40, ROHS COMPLIANT	D Subminiature Connector, 37 Contact(s), Female, 0.108 inch Pitch, Press Fit Terminal, #4-40, ROHS COMPLIANT
Maker	Amphenol	Amphenol	Amphenol	Amphenol
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant
body width	0.494 inch	0.494 inch	0.494 inch	0.494 inch
subject depth	0.236 inch	0.236 inch	0.236 inch	0.236 inch
body length	2.088 inch	1.541 inch	2.088 inch	2.729 inch
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD (30) OVER NICKEL	GOLD FLASH OVER NICKEL
Contact completed and terminated	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
JESD-609 code	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	D	D	D	D
Plug contact pitch	0.108 inch	0.108 inch	0.108 inch	0.108 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch	0.112 inch
Mixed contacts	NO	NO	NO	NO
Installation option 1	#4-40	#4-40	#4-40	#4-40
Installation option 2	THREADED INSERT	THREADED INSERT	THREADED INSERT	THREADED INSERT
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	2	2
Number of rows loaded	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm
Plating thickness	FLASH inch	FLASH inch	30u inch	FLASH inch
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	STEEL	STEEL	STEEL	STEEL
Housing size	3/B	2/A	3/B	4/C
Terminal length	0.118 inch	0.118 inch	0.118 inch	0.118 inch
Terminal pitch	2.7432 mm	2.7432 mm	2.7432 mm	2.7432 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	25	15	25	37
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1
