D25S91C6PX11 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> D25S91C6PX11

D25S91C6PX11: DescriptionD Subminiature Connector, 25 Contact(s), Female, Press Fit Terminal; CategoryThe connector The connector; File Size141KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

D25S91C6PX11 Overview

D Subminiature Connector, 25 Contact(s), Female, Press Fit Terminal

D25S91C6PX11 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	SHIELDED
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (79)
Contact completed and terminated	TIN LEAD (59) OVER NICKEL (39)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	D
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Termination type	PRESS FIT
Total number of contacts	25
UL Flammability Code	94V-0
Base Number Matches	1

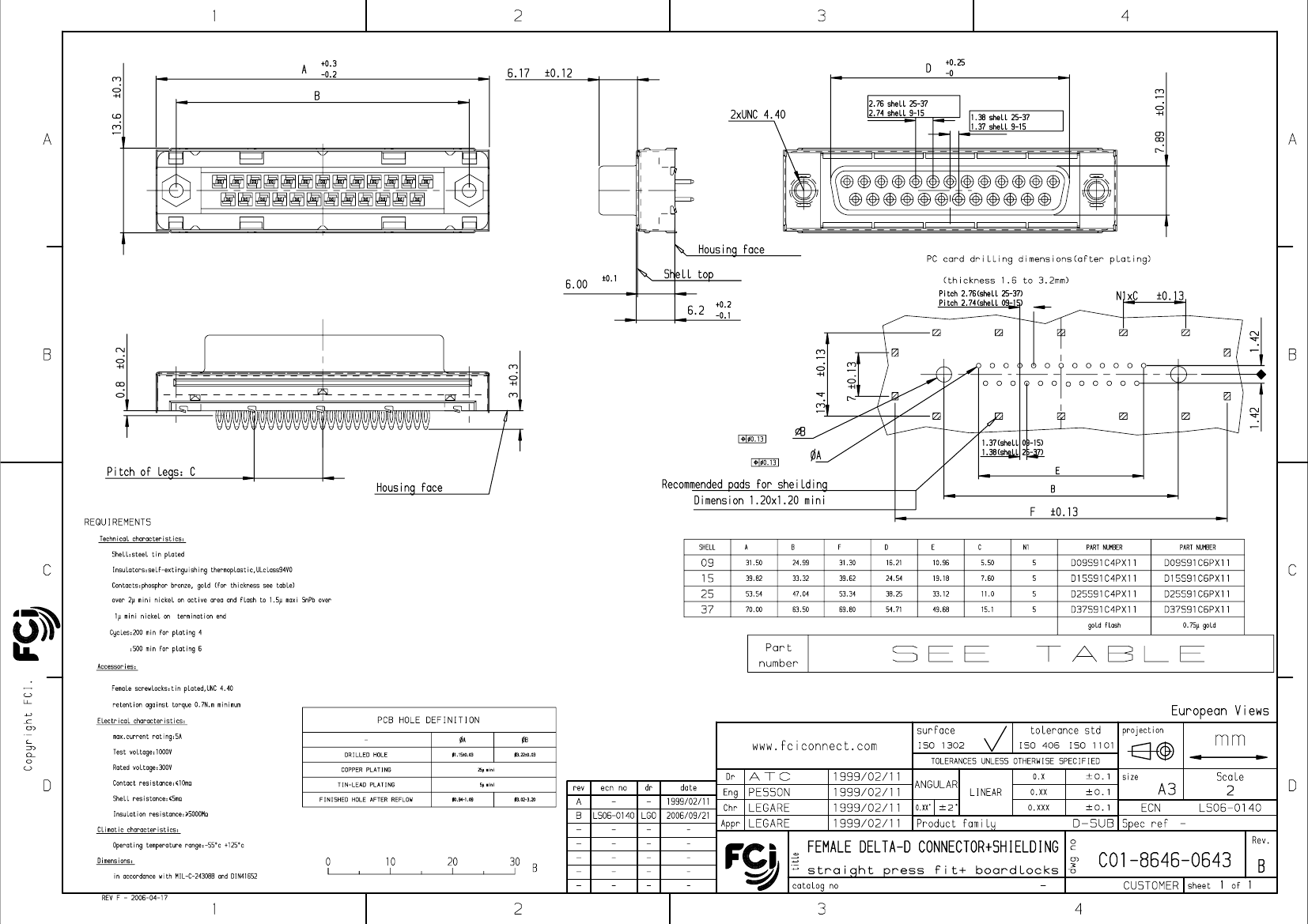

Preview

Download Datasheet

View All

PDM: Rev:B

STATUS:

Released

Printed: Jan 18, 2011

D25S91C6PX11 Related Products

	D25S91C6PX11	D09S91C4PX11	D09S91C6PX11	D15S91C4PX11	D15S91C6PX11	D25S91C4PX11	D37S91C4PX11	D37S91C6PX11
Description	D Subminiature Connector, 25 Contact(s), Female, Press Fit Terminal	D Subminiature Connector, 9 Contact(s), Female, Press Fit Terminal	D Subminiature Connector, 9 Contact(s), Female, Press Fit Terminal	D Subminiature Connector, 15 Contact(s), Female, Press Fit Terminal	D Subminiature Connector, 15 Contact(s), Female, Press Fit Terminal	D Subminiature Connector, 25 Contact(s), Female, Press Fit Terminal	D Subminiature Connector, 37 Contact(s), Female, Press Fit Terminal	D Subminiature Connector, 37 Contact(s), Female, Press Fit Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	unknown	compliant	unknown	compliant	compliant	compliant	compliant	compliant
Other features	SHIELDED	SHIELDED	SHIELDED	SHIELDED	SHIELDED	SHIELDED	SHIELDED	SHIELDED
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (79)	GOLD FLASH OVER NICKEL (79)	GOLD (30) OVER NICKEL (79)	GOLD FLASH OVER NICKEL (79)	GOLD (30) OVER NICKEL (79)	GOLD FLASH OVER NICKEL (79)	GOLD FLASH OVER NICKEL (79)	GOLD (30) OVER NICKEL (79)
Contact completed and terminated	TIN LEAD (59) OVER NICKEL (39)	TIN LEAD (59) OVER NICKEL (39)	TIN LEAD (59) OVER NICKEL (39)	TIN LEAD (59) OVER NICKEL (39)	TIN LEAD (59) OVER NICKEL (39)	TIN LEAD (59) OVER NICKEL (39)	TIN LEAD (59) OVER NICKEL (39)	TIN LEAD (59) OVER NICKEL (39)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	D	D	D	D	D	D	D	D
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	3/B	1/E	1/E	2/A	2/A	3/B	4/C	4/C
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	25	9	9	15	15	25	37	37
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1
