D5W5P36A6GL08 Overview

D Subminiature Connector, 5 Contact(s), Male, Solder Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	D5W5P36A6GL08
Mixed contacts	YES
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	TIN/ZINC CHROMIUM
Shell material	STEEL
Housing size	3/B
Termination type	SOLDER
Total number of contacts	5
UL Flammability Code	94V-0
Base Number Matches	1

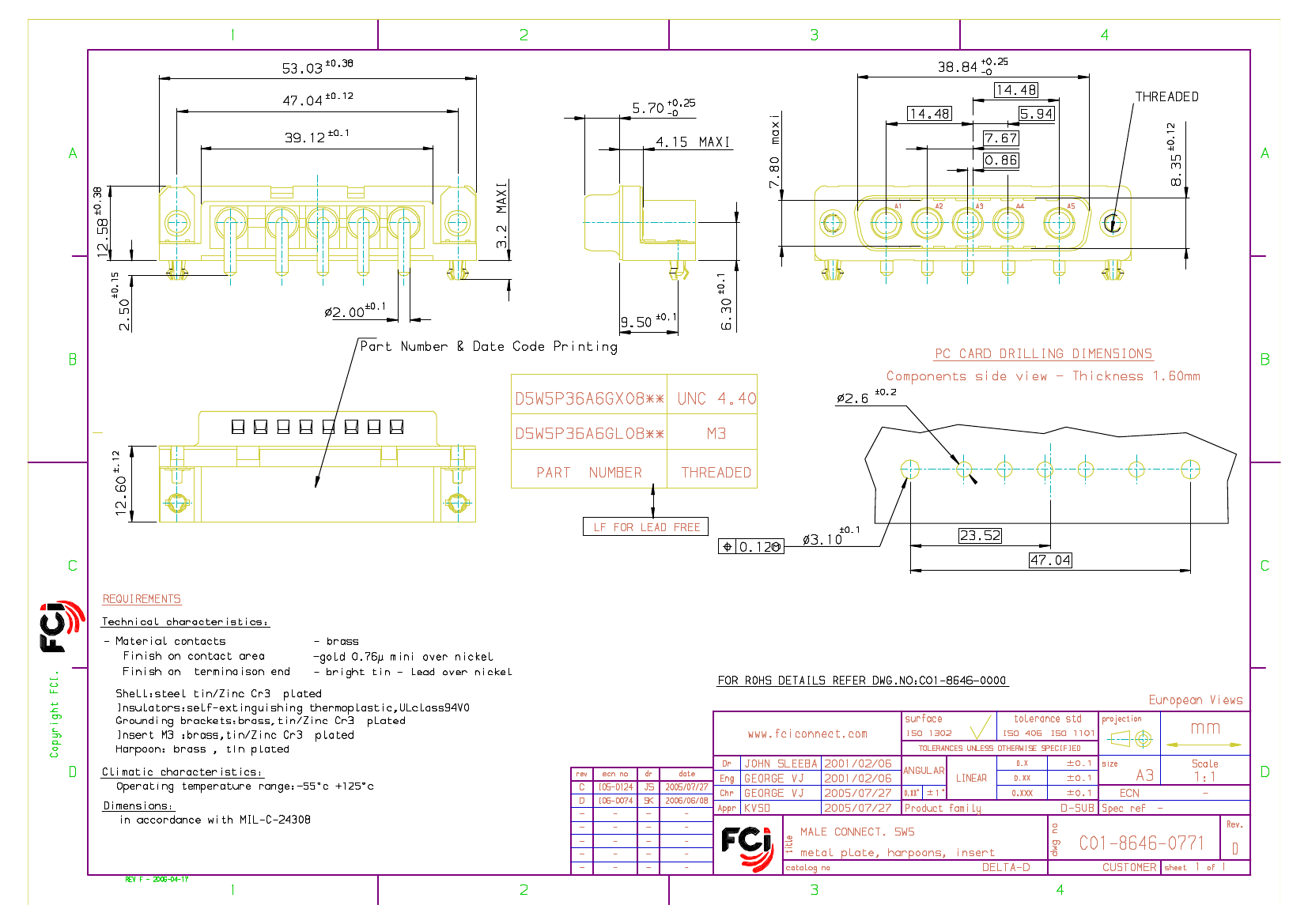

PDM: Rev:D

STATUS:

Released

Printed: Jan 18, 2011

.

	D5W5P36A6GL08	D5W5P36A6GL08LF	D5W5P36A6GX08
Description	D Subminiature Connector, 5 Contact(s), Male, Solder Terminal	D Subminiature Connector, 5 Contact(s), Male, Solder Terminal, LEAD FREE	D Subminiature Connector, 5 Contact(s), Male, Solder Terminal
Maker	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	unknown
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL
Contact point gender	MALE	MALE	MALE
DIN compliance	NO	NO	NO
empty shell	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
JESD-609 code	e0	e0	e0
MIL compliance	NO	NO	NO
Manufacturer's serial number	D5W5P36A6GL08	D5W5P36A6GL08	D5W5P36A6GX08
Mixed contacts	YES	YES	YES
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM
Shell material	STEEL	STEEL	STEEL
Housing size	3/B	3/B	3/B
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	5	5	5
UL Flammability Code	94V-0	94V-0	94V-0
Base Number Matches	1	1	1
