2006.03.17 P0604EMDD03VOL02E

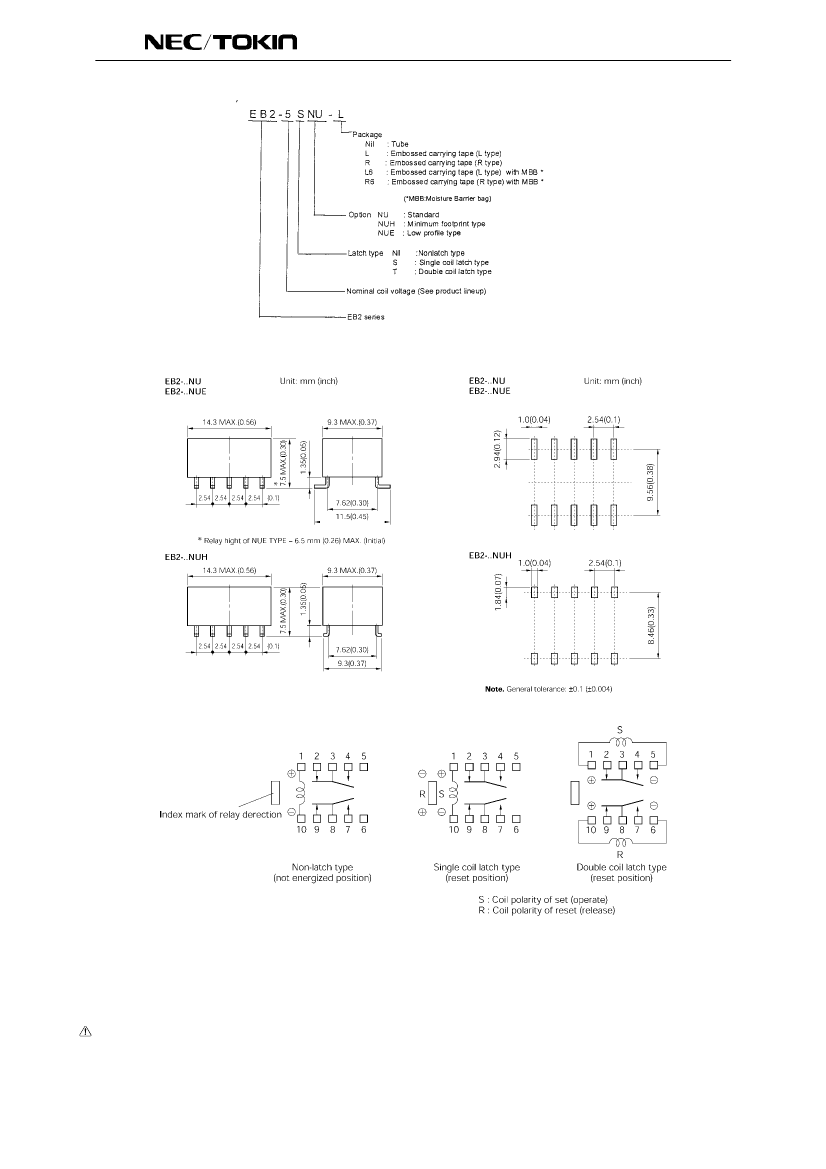

EB2 SERIES
PART NUMBER SYSTEM
OUTLINE DRAWINGS AND DIMENSIONS
PAD LAYOUTS
(bottom view)
PIN CONFIGURATIONS
(bottom view)
2
●All specifications in this catalog and production status of products are subject to change without notice. Prior to the purchase, please contact NEC Tokin for updated product data.
●Please request for a specification sheet for detailed product data prior to the purchase.
●Before using the product in this catalog, please read "Precautions" and other safety precautions listed in the printed version catalog.
2006.03.17 P0604EMDD03VOL02E
EB2 SERIES
MARKINGS
(top view)
SAFETY STANDARD AND RATING
CSA Certificated
UL Recognized
(CSA C22.2 No14)
(UL508)*
File No LR46266
File No E73266
30 Vdc, 1 A (Resistive)
110 Vdc, 0.3 A (Resistive)
125 Vac, 0.5 A (Resistive)
* Spacing : UL114, UL478
Part number
Manufacturer
Country of origin
Date code
Index mark of relay direction
(pin No.1, 10)
⑥
UL, CSA Marking
①
②
③
④
⑤
PERFORMANCE CHARACTERISTICS
Contact Form
Maximum switching power
Maximum switching voltage
Maximum switching current
Maximum carrying current
Minimum carrying ratings
2 form c
30 W (resistive)
220 Vdc
1A
2A
62.5 VA (resistive)
250 Vac
Contact rating
10 mV.dc, 10mA
＊1
Initial contact resistance
75 mΩ max. (Initial)
Contact material
Silver alloy with gold overlay
Non-latch type and double coil latch 140 mW (3 to 12 V)
type
200 mW (24 V)
Nominal operating Power
100 mW (3 to 12 V)
Single coil Latch type
150 mW (24 V)
Non-latch type and double coil latch 79 mW (3 to 12 V)
type
113 mW (24 V)
Minimum operating Power
56 mW (3 to 12 V)
Single coil latch type
85 mW (24 V)
Operate time (excluding bounce)
Approximately 2 ms without diode
Release time (excluding bounce)
Approximately 1 ms without diode
Insulation resistance
1000 MΩ at 500 Vdc
Between open contacts
1000 Vac (for one minute)
Between adjacent contacts
1500 V surge (10 × 160
µs
＊2
)
Breakdown voltage
1000 Vac (for one minute)
Between coil and contact
1500 V surge (10 × 160
µs
＊2
)
2
735 m / s (misoperating)
Shock resistance
2
980 m / s (destructive failure)
10 to 55 Hz at double amplitude of 3 mm
(misoperating)
Vibration resistance
10 to 55 Hz, at double amplitude of 5 mm
(destructive failure)
Ambient temperature
–40°C
to 85°C
Coil temperature rise
18 degrees at nominal coil voltage
Noload
Running specifications
Load
Weight
＊1
＊2
＊3
1 × 10 operations (Non-latch type)
＊3
7
1 × 10 operations (latch type)
6
50 Vdc 0.1 A (resistive), 1 × 10 operations at 85°C, 2 Hz
6
10 Vdc 10 mA (resistive), 1 × 10 operations at 85°C, 2 Hz
Approximately 1.5 grams
8
This value is a reference value in the resistance load.
Minimum capacity changes depending on seitching frequency and environment temperature and the load.
Rise time : 10
µs,
decay time to half crest : 160
µs
This shows a number of operation where it can be running by which a fatal defect is not caused, and a number of
7
operation by which a steady characteristic is maintained is 1 × 10 operations.
3
●All specifications in this catalog and production status of products are subject to change without notice. Prior to the purchase, please contact NEC Tokin for updated product data.
●Please request for a specification sheet for detailed product data prior to the purchase.
●Before using the product in this catalog, please read "Precautions" and other safety precautions listed in the printed version catalog.
2006.03.17 P0604EMDD03VOL02E
EB2 SERIES
Recommended relay drive conditions
Drive under conditions. If it is impossible, please inquire to NEC/TOKIN.
Nonlatch type
Voltage: within ±5% at nominal voltage
Ambient temperature
Square pulse (rise and fall time is rapidly)
Single coil latch type
–40
to +85°C
Pulse height : within ±5% at nominal voltage
Double coil latch type
Pulse width : More than 10 ms
4
●All specifications in this catalog and production status of products are subject to change without notice. Prior to the purchase, please contact NEC Tokin for updated product data.
●Please request for a specification sheet for detailed product data prior to the purchase.
●Before using the product in this catalog, please read "Precautions" and other safety precautions listed in the printed version catalog.
2006.03.17 P0604EMDD03VOL02E
EB2 SERIES
PRODUCT LINEUP
Non-latch Type
Nominal Coil
Voltage
(Vdc)
3
4.5
5
6
9
12
24
Coil
Resistance
(Ω) ±10 %
64.3
145
178
257
579
1028
2880
Must Operate
Voltage
(Vdc)
2.25
3.38
3.75
4.5
6.75
9
18
Must Release
Voltage
(Vdc)
0.3
0.45
0.5
0.6
0.9
1.2
2.4
at 20°C
Single-Coil Latch Type
Nominal Coil
Voltage
(Vdc)
3
4.5
5
6
9
12
24
Coil
Resistance
(Ω) ±10 %
90
202.5
250
360
810
1440
3840
Must Operate
Voltage
(Vdc)
2.25
3.38
3.75
4.5
6.75
9
18
Must Release
Voltage
(Vdc)
2.25
3.38
3.75
4.5
6.75
9
18
at 20°C
Double-Coil Latch Type
Nominal Coil
Voltage
(Vdc)
3
4.5
5
6
9
12
24
＊＊
(Can not be driven by revese po;arity for reverse operation.)
Coil
Resistance
(Ω) ±10 %
S
R
S
R
S
R
S
R
S
R
S
R
S
R
64.3
64.3
145
145
178
178
257
257
579
579
1028
1028
2880
2880
Must Operate
Voltage
(Vdc)
2.25
–
3.38
–
3.75
–
4.5
–
6.75
–
9
–
18
–
Must Release
Voltage
(Vdc)
–
2.25
–
3.38
–
3.75
–
4.5
–
6.75
–
9
–
18
at 20°C
Note
＊
Test by pulse voltage
＊＊
S : Set coil (pin No.1...
○
, pin No.5...
○
) R : Reset coil (pin No.10...
○
, pin No.6...
○
)
+
-
+
-
The latch type relays should be initalized at appointed position before using, and should be enegized to specific polanity
by a bone polabity to avoid wrong operation.
Any special coil requirement, please contact NEC/TOKIN for availability.
5
